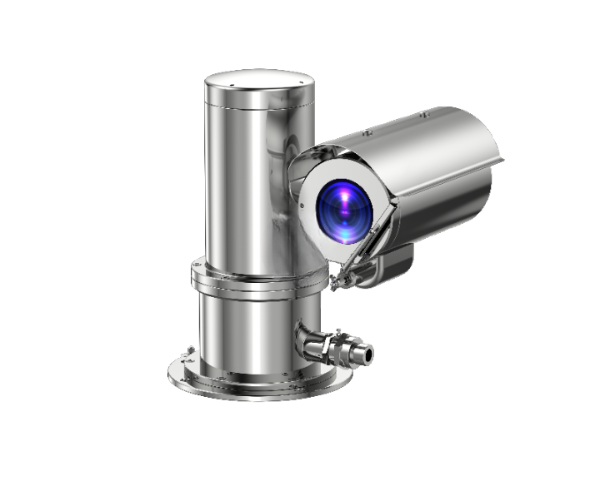

Product Image 2 Product Image 2

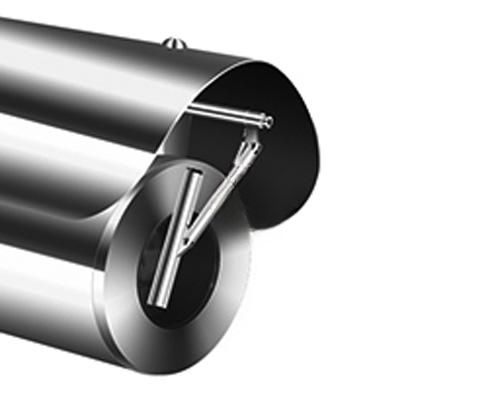

Product Image 3 Product Image 3

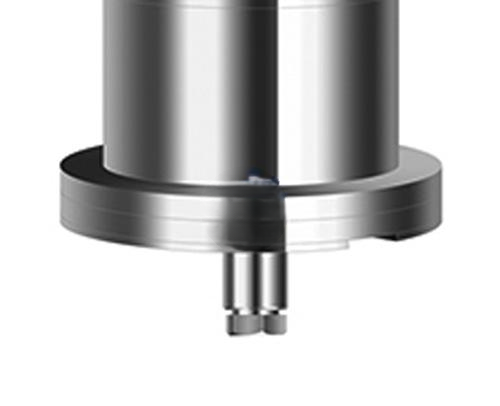

Product Image 4 Product Image 4

AJSZAT600 explosion proof PTZ camera

Main Features:

  • Certified for Hazardous Areas
  • 360° Auto Tracking Function
  • IP65 Weatherproof Rating
  • Explosion-Proof PTZ Design
  • Full Pan-Tilt-Zoom (PTZ) Control
  • Ideal for Indoor & Outdoor Use
  • Durable Construction
  • High-Resolution Imaging
  • Heavy-Duty Stainless Steel Housing
  • Tamper & Impact Resistant

More Details About AJSZAT600 explosion proof PTZ camera

Product Description

The AJSZAT600 is a robust explosion-proof PTZ camera specifically designed for hazardous environments such as oil refineries, chemical plants, offshore platforms, and industrial processing zones. Engineered for durability and safety, the AJSZAT600 supports Zone 1 and Zone 2 gas areas, as well as Zone 21 and Zone 22 dust environments, ensuring reliable monitoring in highly volatile conditions.

Technical Specifications

Certificate

Certificate Mark

ExdⅡC T6 Gb/Ext D A21 IP65 T80°C

Certificate No

CNEx14.3487X

Standards

Q/320412 ZAF007-2014



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP65

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

yes



Electrical

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

35W /55W (with thermostat)



Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps



Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°



Camera

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582 NTSC 976*494

Min. Illumination

Color 0.04Lux B/W: 0.004Lux

Shutter Time

1/50(1/60) sec~ 1/10,000 sec

Horizontal resolution

700TVL (color), 720TVL (B&W)

S/N ratio

＞50dB（AGC off）



Lens

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)



Control

Camera address

on/off （0-254）

Focus Mode

Auto/Manual/One touch

Gain

off/ lower/ higher

Slow shutter

X256 MAX

White Balance

Auto /Indoor/Outdoor/Manual/auto tracking

Video

3D DNR, mirror, brightness, Contrast, Sharpness adjustable

Digital zoom

X16

Zoom display

on/off

ZCF control mode

mode 1, mode 2

RS485

protocol, baud rate, address



General

Cable

integrated cable

Size

310*305*381mm

Weight

17kg

Mounted

wall, pole

Wall bracket

AJSZAZ600B
