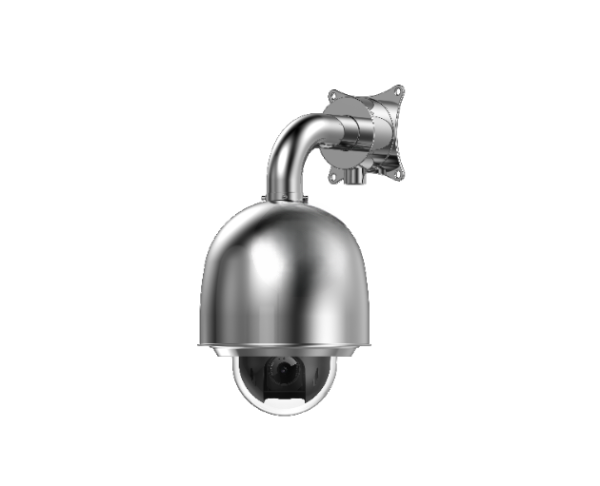

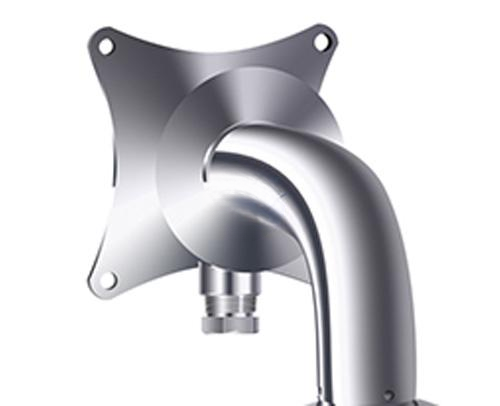

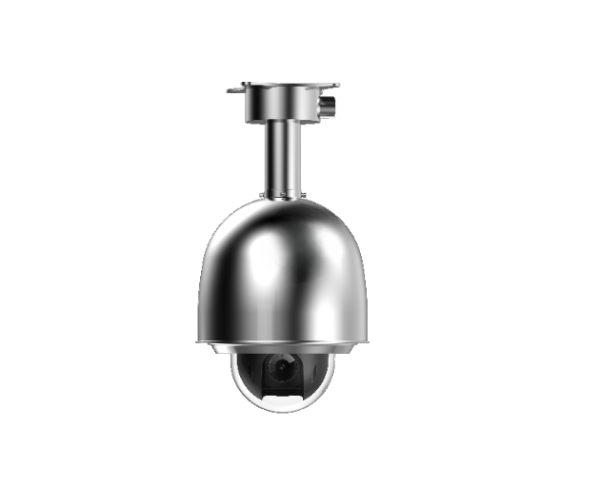

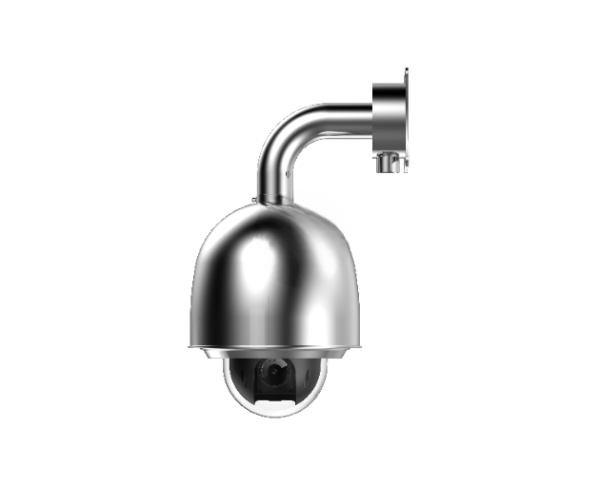

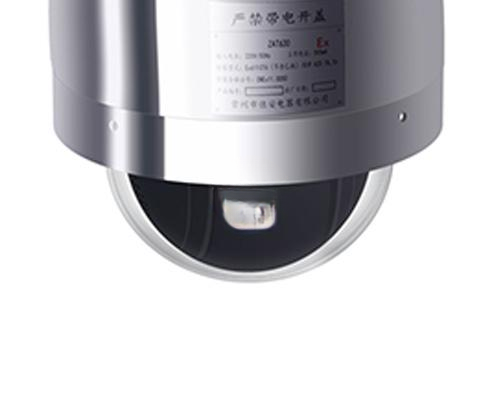

AJSZAT630 Network explosion proof dome camera

Main Features:

  • ATEX/IECEx Certified for Hazardous Areas
  • High-Definition Network Camera
  • Fast & Precise PTZ Control
  • Explosion-Proof Dome Housing (IP68)
  • ONVIF-Compliant Network Integration
  • Day/Night Auto Switch
  • Wide Operating Temperature Range
  • Versatile Mounting Options

More Details About AJSZAT630 Network explosion proof dome camera

Product Description

HD Explsoion proof Dome IP68 Camera also has network version of explosion proof dome camera, which resolution can reach to 2MP. With pan tilt station, its horizontal speed is 0.1-300°/s, and vertical speed is 0.1-250°/s.

Technical Specifications

Certificate

Certificate Mark

ExdⅡC T6 Gb/Ext DA21 IP68 T80°C

Certificate No

CNEx15.2504X

Standards

Q/320412 ZAF026-2015



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

No



Electrical

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

25W /35W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect



Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps



Pan & Tilt

Horizontal

360°

Speed

Horizontal 0.1-300°/s, Vertical 0.1-250°/s

Vertical

-90 to +0

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Pattern

Support

Auto Scan

Support



Alarm

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Action with Alarm

Screen scratch, Preset, Pattern, Cruise, SD record, email

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access



Audio

Audio Input

Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%

Audio Output

Line-level impedance 600Ω



Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 , H.265 / MJPEG

Audio Compression

G.711-a / G7.11mu /MP2L2/PCM

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP

,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP

,DHCP,PPPoE



Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control



Camera

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

1.3MP, 2MP, 3MP

Min. Illumination

Color 0.05Lux B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

＞52dB（AGC off）

Gain

off/ lower/ higher

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

Optical zoom

20X / 30X

View Angle

Horizontal 65.5° to 2.11



General

Cable

 integrated cable

Size

 213*213*570mm

Camera Diagram
