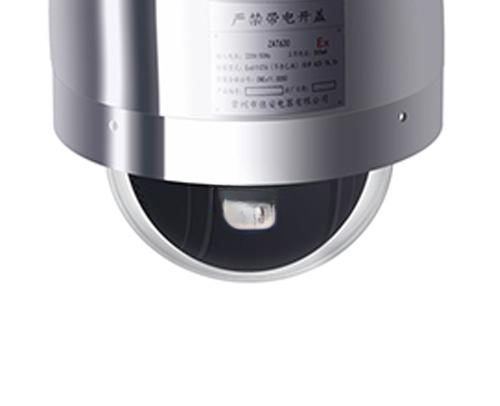

AJSZAT630 700TVL explosion proof speed dome camera

Certificate Mark

ExdⅡC T6 Gb/Ext DA21 IP68 T80°C

Certificate No

CNEx15.2504X

Standards

Q/320412 ZAF026-2015

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

No

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

25W /35W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Horizontal

360°

Speed

Horizontal 0.1-300°/s, Vertical 0.1-250°/s

Vertical

-90 to +0

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Pattern

Support

Auto Scan

Support

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582, NTSC 976*494

Min. Illumination

Color 0.02Lux B/W: 0.002Lux

S/N ratio

＞50dB（AGC off）

Gain

Auto/manual

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Digital Zoom

16X

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)

Cable

integrated cable

Size

213*213*570mm

Weight

15kg

Mounted

wall, pole

Wall bracket

AJSZAZ630B
