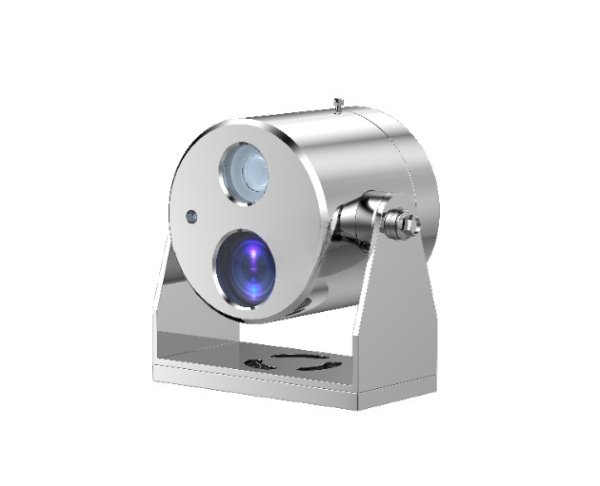

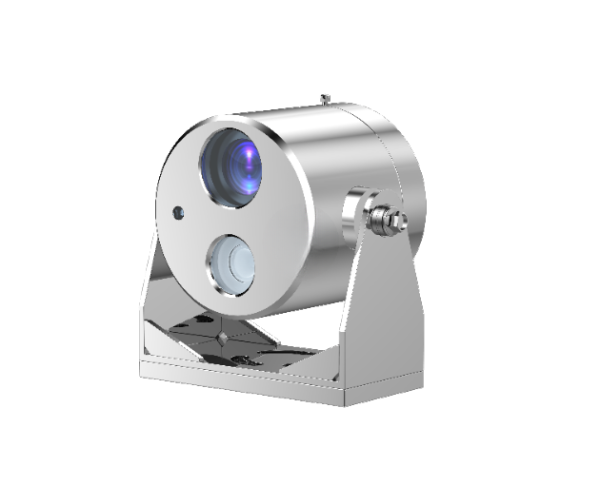

AJSZAF109 720P mini explosion proof camera

Main Features:

  • High-Resolution Video
  • Built-in IR Night Vision
  • Explosion-Proof Design
  • Compact & Durable
  • Versatile Deployment
  • Weather-Resistant
  • Stainless Steel Housing
  • Wide Viewing Angle
  • Flexible Mounting Options

More Details About AJSZAF109 720P mini explosion proof camera

Product Description

AJSZAF109 is a AJSZAF109 720P mini explosion proof CCTV camera for gas station, which is widely fit for oil tank truck, marine oil tanker, and hazardous key area surveillance. The AJSZAF109 mini explosion proof camera also has 30m distance infrared lights for night vision.

Technical Specifications



Certificate

Certificate Mark

Ex d ⅡC T6 Gb/ Ex tD A21 IP68 T80℃

Certificate No

CNEx 20.2307X

Standards

Q/320412 ZAF033-2020



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4 or M25*1.5



Electrical

Voltage

DC12Vor POE power supply

Power

8W



Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Lights

Light distance

20-30m



Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.265/ H.264/ M-JPEG

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE



Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control



Camera

Image Sensor

1/2.8" COMS, 1/3” COMS

Effective pixel

1.3MP, 2MP

Min. Illumination

0.01Lux @(F1.2, AGC ON) B/W: 0Lux with IR

Lens

4mm @ F2.0, view angle:85° (6mm, 8mm, 12mm)

Day& Night

Auto ICR

WDR

120dB

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable



General

Cable

integrated cable

Size

158*144*167mm

Weight

4kg

Mounted

wall, pole

Wall bracket

AJSZAZ109B



Camera Diagram
