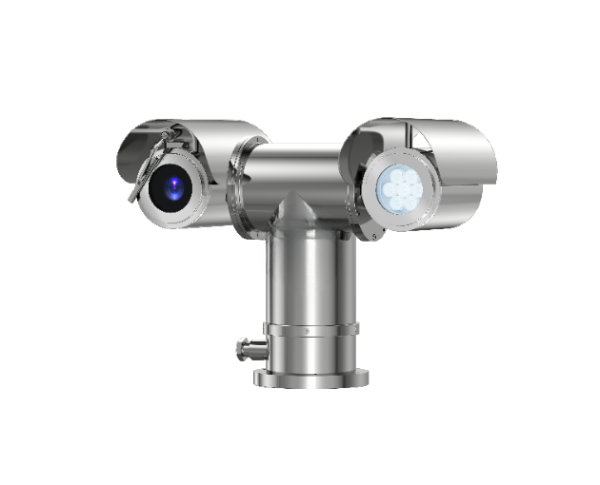

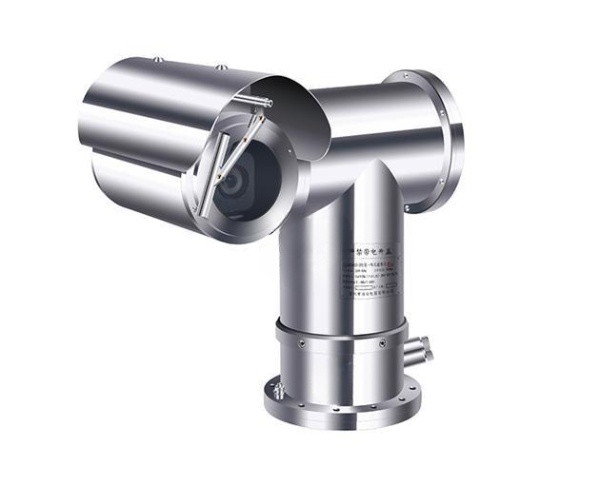

AJSZAT610-3 Explosion proof PTZ camera

Certificate Mark

Ex d IIC T6 Gb/ Ex tD A21 IP66 T80°C/

Ex tD A21 IP68 T80°C

Certificate No

CNEx21.3123X

Standards

Q32042ZAF013-2021

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

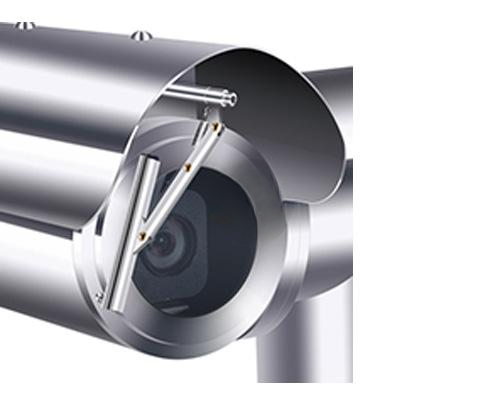

Wiper

yes

Voltage

AC85V～AC265V or DC24V or AC24V,

PoE++（DC48V)

Power

50W /70W (with thermostat)

Ambient temperature

-50 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Pattern

Support

Auto Scan

Support

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582 NTSC 976*494

Min. Illumination

Color 0.04Lux B/W: 0.004Lux

Shutter Time

1/50(1/60) sec~ 1/10,000 sec

Day&Night

Auto ICR

Horizontal resolution

700TVL (color), 720TVL (B&W)

S/N ratio

＞50dB（AGC off）

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)

Camera address

on/off （0-254）

Focus Mode

Auto/Manual/One touch

Gain

off/ lower/ higher

Slow shutter

X256 MAX

White Balance

Auto white balance 1/auto white balance 2/Manual/auto

Private

Off/ Mode 1/ Mode 2

Video

3D DNR, mirror, brightness, Contrast, Sharpness adjustable

Digital zoom

X16

Zoom display

on/off

ZCF control mode

mode 1, mode 2

RS485

protocol, baud rate, address

Preset

254

Cable

integrated cable

Size

376*280*396mm

Weight

22kg

Mounted

wall, pole

Wall bracket

AJSZAZ610B
