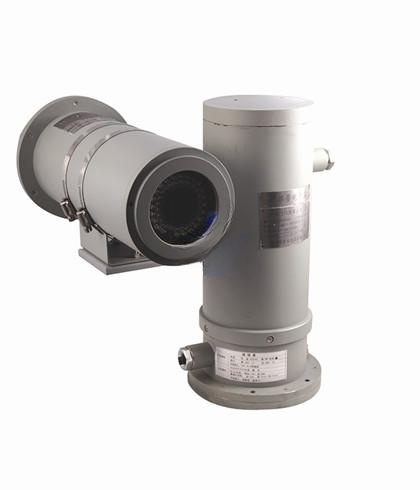

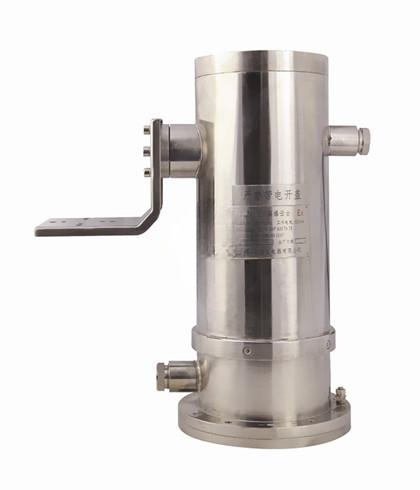

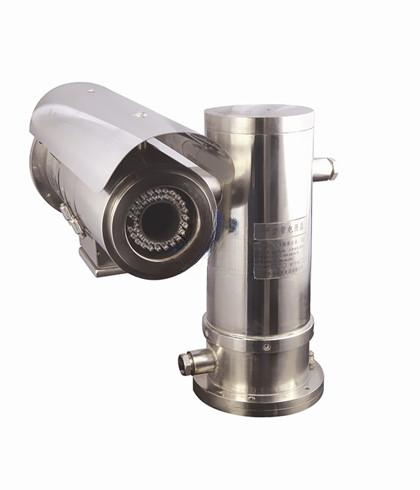

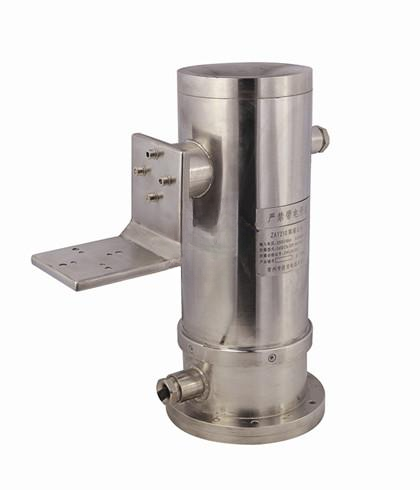

AJSZAY210 Explosion proof pan tilt

More Details About AJSZAY210 Explosion proof pan tilt

Product Description

AJSZAY210 is explosion proof pan tilt, such as AJSZAF100B, AJSZAF102, AJSZAF105, AJSZAF103, AJSZAF1031. With pan tilt station, our explosion proof camera can realise auto tracking at any direction.

Technical Specifications

Certificate

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx13.4247

Standards

Q/320412ZAF012-2013



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4



Electrical

Voltage

AC220V or AC24V

Power

50W



Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps



Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°



General

Cable

integrated cable

Size

315*178*259mm

Weight

10.5kg

Mounted

wall, pole

Wall bracket

AJSZAZ210B



Product Diagram
