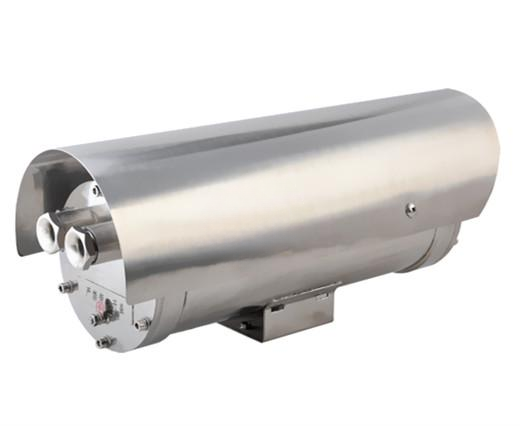

Product Image 4 Product Image 4

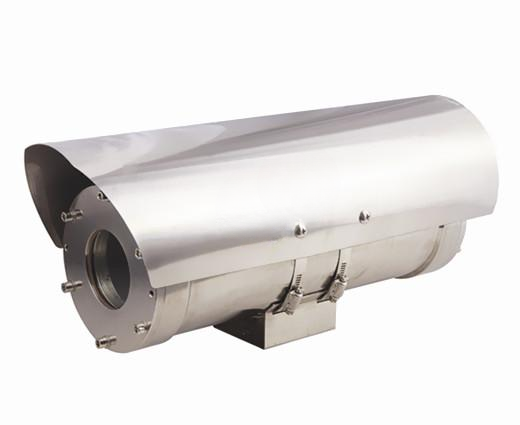

Product Image 5 Product Image 5

AJSZAF100A Explosion proof camera

Main Features:

  • ATEX Certified
  • Integrated Wiper System
  • Sun Shroud Protection
  • Compatible with Multiple Camera Types
  • Heavy-Duty Stainless Steel Housing
  • Weatherproof & Waterproof (IP68)
  • Wide Operating Temperature Range
  • Optional Internal Heating System
  • Flexible Mounting Options

More Details About AJSZAF100A Explosion proof camera

Product Description

AJSZAF100A is the most hot sale ATEX explosion proof housing, which is integrated with wiper system for window self clean. ZAF100A ATEX explosion proof housing also has sun shroud to block the sunlight. Client can also offer brand camera for us to assemble into explosion proof camera housing.

Technical Specifications

Certificate of AJWASYS ATEX explosion proof housing

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx12.0006

Standards

Q/320412ZAF001-2001



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

Yes

Wiper

Yes



Electrical

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

15W/25W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode



Ambient

Ambient temperature

-25 to +60℃ / -45 to +80℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps



Camera

Image Sensor

1/3" interline-transfer CCD

Effective pixel

PAL 976*582 NTSC 976*494

Min. Illumination

Color 0.04Lux B/W: 0.004Lux

Shutter Time

1/50(1/60) sec~ 1/10,000 sec

Day&Night

Auto ICR

Horizontal resolution

700TVL (color), 720TVL (B&W)

S/N ratio

＞50dB（AGC off）



Lens

Focal Length

4-92mm, 23X/or 36X optical

Aperture Range

F1.5-F3.6

Angle of View

49-2.2 degree(Wide-Tele)

Min. Working Distance

10mm-1500mm(Wide-Tele)

Zoom Speed

Approx. 3s(Optical, Wide-Tele)



Control

Camera address

on/off （0-254）

Focus Mode

Auto/Manual/One touch

Gain

off/ lower/ higher

Slow shutter

X256 MAX

White Balance

Auto white balance 1/auto white balance 2/Manual/auto

Private

Off/ Mode 1/ Mode 2

Video

3D DNR, mirror, brightness, Contrast, Sharpness adjustable

Digital zoom

X16

Zoom display

on/off

ZCF control mode

mode 1, mode 2

RS485

protocol, baud rate, address



General

Cable

integrated cable

Size

472*195*194mm

Weight

9.5kg

Mounted

wall, pole

Wall bracket

ZAZ100B



Camera Diagram
