Main Features:
Product Description

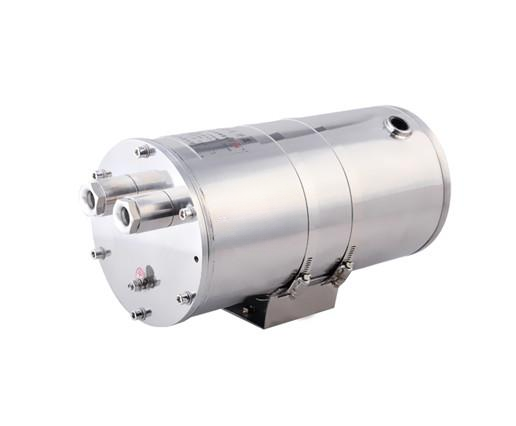

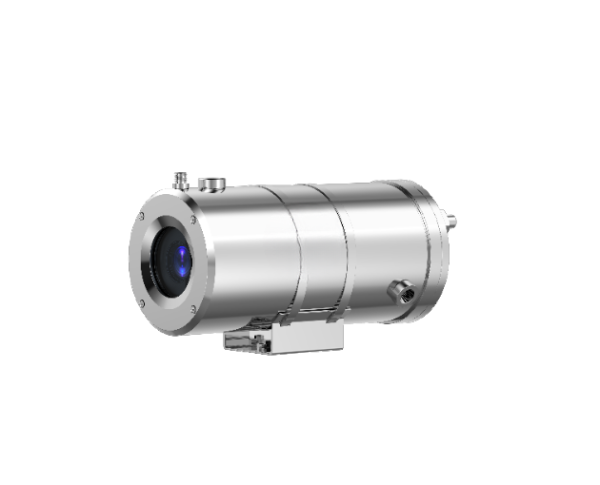

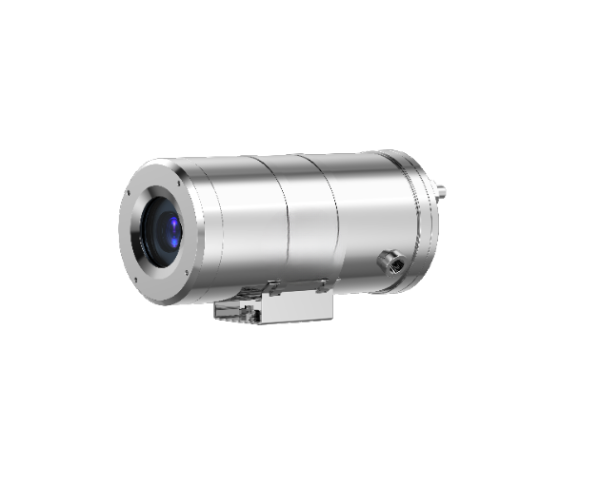

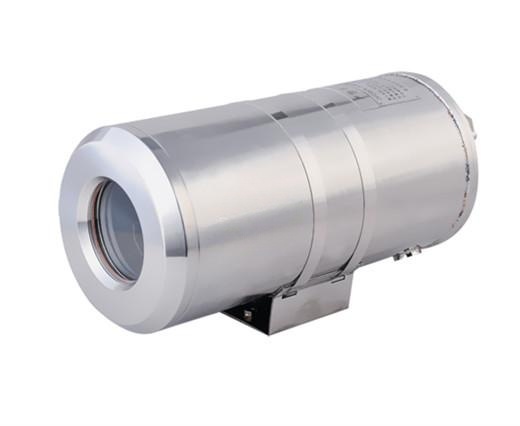

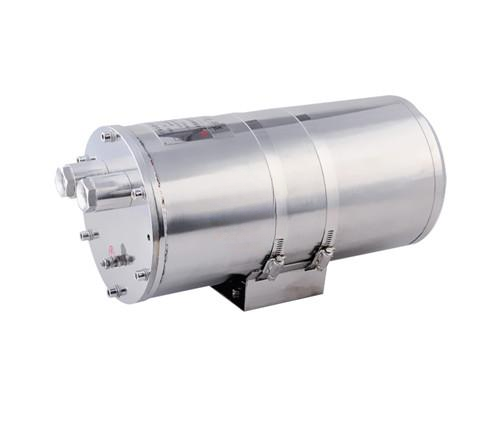

AJSZAFC106 is air water cooling type explosion proof camera housing, which is widely apply for high temperature working plant, like furnace, power plant, glass and steel processing line.Air cooling explosion proof camera housing can resist -25 to +150℃ temperaure. water cooling explosion proof camera housing can resist 250℃ temperature.
Technical Specifications
Certificate
|
Certificate Mark |
ExdⅡC T5GB/DIP A20 TA, T5 |
|
Certificate No |
CNEx13.4248 |
|
Standards |
Q/320412ZAF012-2013 |
Mechanical
|
ATEX Ecplosion Proof Housing |
Stainless steel 304 or 316L |
|
IP |
IP68 |
|
Cable thread hole |
2pcs G3/4 or NPT3/4 |
|
Sun-shield |
No |
|
Wiper |
No |
Electrical
|
Voltage |
AC85V～AC265V or DC24Vor AC24V |
|
Power |
15W |
Ambient
|
Ambient temperature |
Air cooling -25 to +150℃ , water cooling 0 to +250℃ |
|
Air pressure |
80Kpa to 106Kpa |
|
Relative Humidity |
≦95% (no condensation) |
General
|
Size |
374*163*185mm |
|
Housing inner size |
260*80*80mm |
|
Weight |
9.1kg |
|
Mounted |
wall, pole |
|
Wall bracket |
ZAZ100B |
Camera Diagram
