Main Features:
Product Description

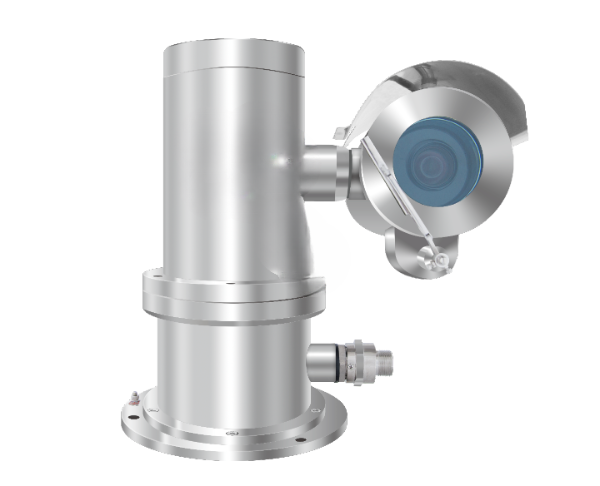

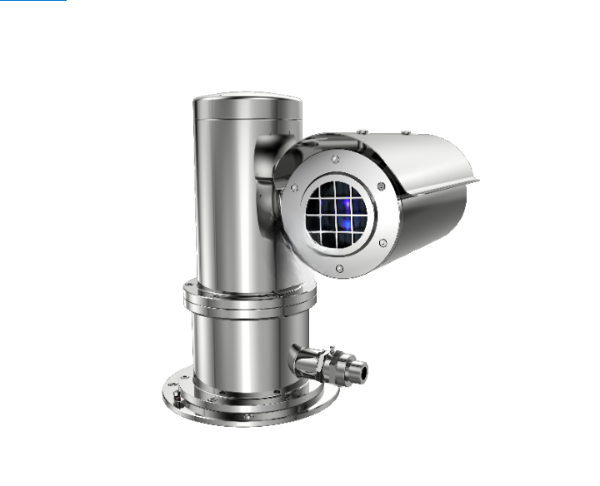

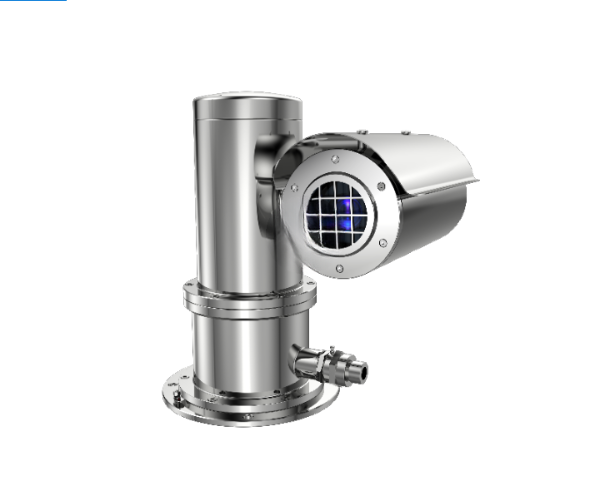

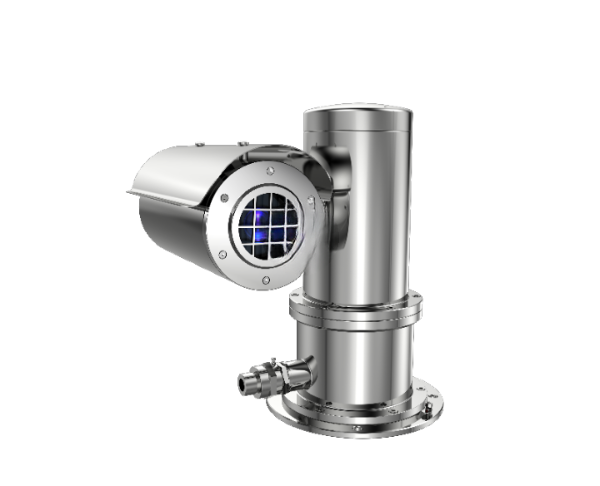

AJSZAS661-IR is anti-corrosion PTZ station, built-in video compression coding, easy for network transmisstion. Its crust is made of anti-corrosion stainless steel 316L, which can be widely used in marine area, port, drilling platform and harbor.
Intelligent thermal imaging camera
AJSZAS661-IR adopts intelligent high-temperature pre-alarming output with various grades. It is also higher detection efficiency and less misinformation.
360 ° Endless Rotation
AJSZAS661-IR anti-corrosion thermal imaging PTZ camera embedded intelligent analysis supports motion detection, line crossing detection, regional entry/exit detection and intelligent PTZ rotation.
Professional photoelectric zooming technology
Besides the fixed focus lens, AJSZAS661-IR also support continuous zooming lens like 25-75mm. Customer can get clear imaging after set preset surveillance points.
Wide application
AJSZAS661-IR is mainly applicable in scenarios of zero visibility and strong light source interference, such as airport, harbor, perimeter, oil filed and marine area.
Technical Specifications
Mechanical
|
Housing |
Stainless steel 304 or 316L |
|
IP |
IP68 |
|
Cable thread hole |
1pcs M25*1.5 or M27*1.25 |
|
Wiper |
yes |
Electrical
|
Voltage |
AC100-240V or DC24Vor AC24V |
|
Power |
50W /70W (with thermostat) |
|
Optional surge protector |
TVS 6000V |
|
Optional within fiber optical cable |
Multimode, or signal mode |
Ambient
|
Ambient temperature |
-25 to +60℃ |
|
Air pressure |
80Kpa to 106Kpa |
|
Relative Humidity |
≦95% (no condensation) |
Assistant
|
Communication |
support analog video output |
|
485 Communication |
Support Pelco-D, Pelco-P |
|
Communicate Rate |
2400 to 19200bps |
Pan & Tilt
|
Horizontal |
360° continuous |
|
Horizontal speed |
0.1-45°/s |
|
Vertical |
-90 to +90° |
|
Cruise Scan |
Support |
|
Keep watch |
Support |
|
Preset |
64/128/255/300 |
|
Resume function |
Support |
|
Auto Cruise |
Support |
|
Auto Scan |
Support |
Optional Alarm
|
Alarm Input |
2-channel/ 7-channel |
|
Alarm Output |
1-channel, action with alarm |
|
Intelligent Alarm |
Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access |
Optional Audio
|
Audio Input |
Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10% |
|
Audio Output |
Line-level impedance 600Ω |
Network
|
Network Interface |
1pcs of RJ45, support 10M/100M/1000M |
|
Video Compression |
H.264 main profile / MJPEG |
|
Audio Compression |
G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726 |
|
Voice Intercom |
Support |
|
Stream |
Support three streams |
|
Internet Protocol |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
Time Display |
Support |
|
Standard |
ONVIF, CGI, GB/T28181, PISA |
|
IE browser |
Support IE7 or above, Google, Firefox, Apple |
|
Security |
Password protection, Multiple access control |
|
Thermal camera |
384 |
640 |
|
Detector |
Uncooled microbolometer FPA (Amorphous Silicon) |
|
|
Array Format/pixel pitch |
384*288/17μm |
640*480/17μm |
|
Sensitivity |
≤50mk@300K |
|
|
Frame rate |
25Hz |
|
|
Spectral range |
8-14μm |
|
|
Focal length |
9,15,19,25,35,40,50mm fixed focus: 25-75mm continuous zooming |
|
|
Digital zooming |
1-8x continuous |
|
|
Network image resolution |
720*576 |
|
|
Analog image resolution |
720*576 |
|
|
Mainstream rate |
25fps(720x576) |
|
|
Sub-stream rate |
25fps(352x288) |
|
|
Image mode |
HDR(high dynamic range): sea-sky mode, sky-earth mode |
|
|
Image enhancement |
IDE(image details enhancement) |
|
|
palette |
11 kinds of color available (rust, rainbow, white/black, etc), palette color customize |
|
|
Network protocol |
TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, IGMP, 802.1X, ONVIF(profile S) |
|
|
Video compression |
H.264 |
|
|
Video preview connections |
Max. 10 at same time |
|
|
Number of user, authority |
Max 10 |
|
|
High temperature alarm |
Alarm based on the differential temperature between target with its background |
|
|
Intelligent functions |
Motion detection, regional intrusion alarm, line crossing alarm, moving path, target enhancement |
|
|
Network |
RJ45 x1 10M/100M/ 1000M base-TX, self-adaption Ethernet port(electrical) |
|
|
Video output |
CVBS(75Ω） PAL |
|
|
Serial port |
RS-232, RS-485 |
|
|
Alarm switch |
Input x1, output x1 |
|
|
Storage interface |
Support Micro SD(TF) card, (max, 64G) |
|
|
THERMAL VERSION – 640, 384 |
||
|
|
Person (Detective/recognition/identification) |
Vehicle (Detective/recognition/identification) |
|
Lens 9mm |
250/63/31m |
720/175/88m |
|
Lens 19mm |
570/144/72m |
1550/400/200m |
|
Lens 25mm |
820/210/104m |
2200/580/290m |
|
Lens 35mm |
1140/280/142m |
3000/800/200m |
|
Lens 50mm |
1500/380/190m |
3900/1060/540m |
|
Lens 75mm |
1750/450/225m |
4500/1240/640m |
|
Lens 100mm |
2450/650/330m |
6000/1750/900m |
Camera Diagrams
Other Accessories
AJSZAZ6XXB Wall Bracket
General
|
Material |
Stainless steel 304 or 316L |
|
Max Loading |
100kg |
|
Weight |
4.5kg |
AJSZAZ6XX-CW corner bracket ZAZ6XX-PMB Pole mount adapter
AJSZAZ6XX-PMB Pole mounted bracket
AJSZAZ6XX-CW Corner mounted bracket
