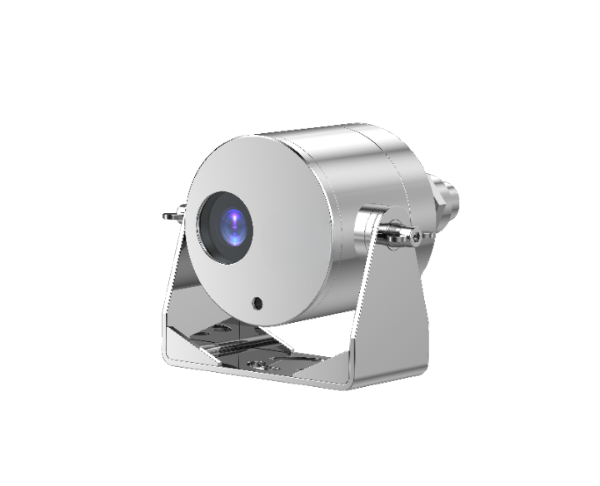

Product Image 2 Product Image 2

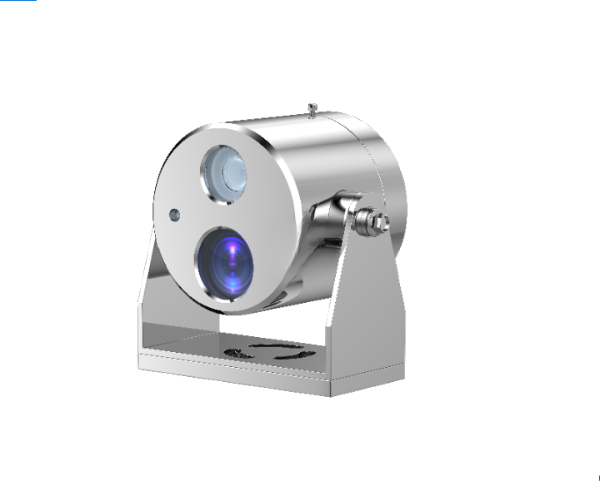

Product Image 3 Product Image 3

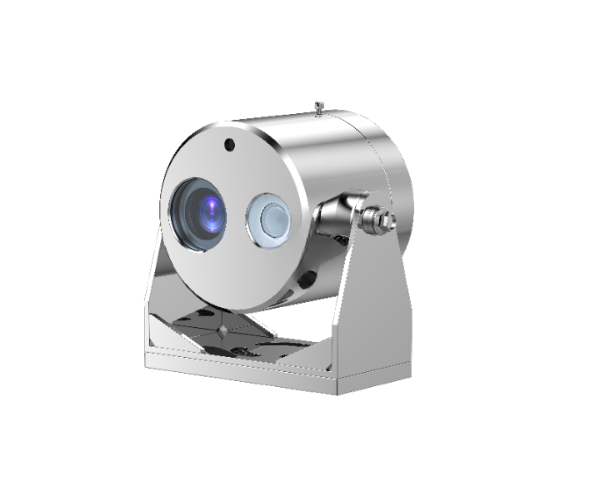

Product Image 4 Product Image 4

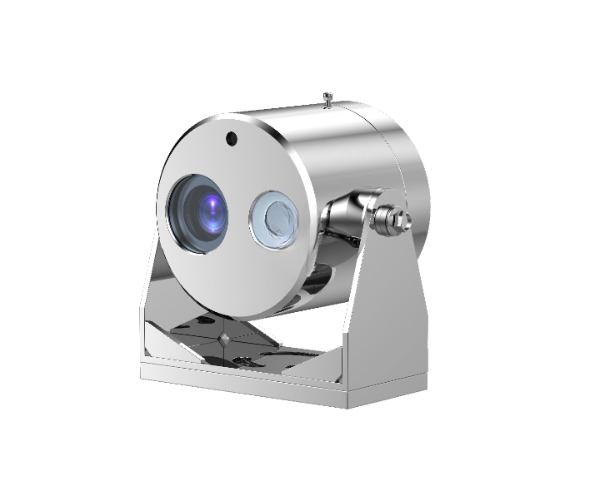

Product Image 5 Product Image 5

AJSZAS109 Anti-corrosion 4MP Network camera with Infrared lights for marine area

Main Features:

  • Enclosure Protection: IP68
  • Power input: DC12V or POE power supply
  • With lights for night vision: 30m distance
  • Camera resolution: 1.3MP, 2MP, 4MP, 5MP
  • Application: industrial aggressive area
  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finish
  • Rugged Outdoor Design
  • Wide Area Coverage

More Details About AJSZAS109 Anti-corrosion 4MP Network camera with Infrared lights for marine area

Product Description

AJSZAS109 is with Anti-corrosion material, 4MP Network camera with Infrared lights, which adopts stainless steel 316L material, applying for marine area.

Infrared lights

For challenging low-light applications, this AJSZAS109 anti-corrosion camera adopts infrared Light offers best-in-class light sensitivity, capturing color details in low light down to 0.003 lux. The anti-corrosion camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

AJSZAS109 ancti-corrosion camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

4MP Resolution

This anti-corrosion camera adopts high quality image with 4MP, 1/3"CMOS sensor.This anti-corrosion camera frame rate is 4MP (2688*1520)@30/ 25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps.

Ultra H.265

This anti-corrosion camera video compression has been upgrade to Ultra 265, H.265, H.264, MJPEG. Ultra H.265 is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Supports 256 G Micro SD card

AJSZAS109 anti-corrosion camera also support 256G Micro SD card, which help video to keep record for one month.

PoE Power Supply

AJSZAS109 anti-corrosion camera voltage input can be DC 12V±25% and PoE (IEEE 802.3af), which max power consumption is 4.0W.

Stainless Steel 316L

AJSZAS109 anti-corrosion camera is full made of stainless steel 316L, also including mounted bracket. This camera can apply for high corrosion area, such as off-landing, marine, ship, waste incineration and chemical factory.

Model

AJSZAS109-4H

AJSZAS109-5H

Camera type

4MP

5MP

Atmospheric pressure

80KPa～110Kpa

Ambient Temperature

–40°c～+60°C

Relative Humidity

≤95% （+25°c）

Ingress Protection

IP68(2m/2h)

Housing Material

Stainless Steel 304 or 316L

Image Sensor

1/3" Progressive Scan CMOS

1/2.7" Progressive Scan CMOS

Signal

PAL/NTSC

Max. Image Resolution

2592*1520,25fps

2592*1944, 25fps

Frame Rate

Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps

Sub Stream: 4CIF (704*576), Max 30fps;

Third Stream: CIF (352*288), Max 30fps

Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2048*1536), Max 30fps;

2MP (1920*1080), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

Min. Illumination

Colour:0.01Lux (F2.0, AGC ON)
0Lux with IR on

0.005Lux @ (F1.2, AGC ON) ,0 Lux with IR

Shutter

1/3 sec to 1/100,000 sec

Lens

4mm (6mm optional)

Lens of angle

4mm @ F2.0,

82°(H), 41.6°(V); 100.9°(O)

4mm @ F1.6,

79.7°(H), 51.8°(V); 98.1°(O)

Lens mount

M12

Day& Night:

IR cut filter with auto switch

Image Enhancement

2D/ 3D DNR

2D/ 3D DNR

Image Settings

Rotate Mode, Saturation, Brightness, Contrast,

Sharpness adjustable by client software or web browser

Communication interface

1 RJ45 10M / 100M ethernet interface

ROI

Support 1 fixed region for main stream and sub stream separately

Video Compression

Ultra 265, H.265, H.264, MJPEG

Ultra 265, H.264/MJPEG

Video bit rate

32kpbs~12Mbps

32kpbs~16Mbps

Dual streams

Support

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

General Function

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering

System Compatibility

ONVIF (Profile S, Profile T), API

Light night vision

0-30m

Voltage Input

DC12V/ POE(802.3af)

Power consumption

5w Max

Cable output

Integrated cable, 2m long

Cable gland

1pcs G3/4 or M27*1.25

Overall dimension
LxWxH

168*150*148mm

Net weight

4.3 kg



Camera Diagram
