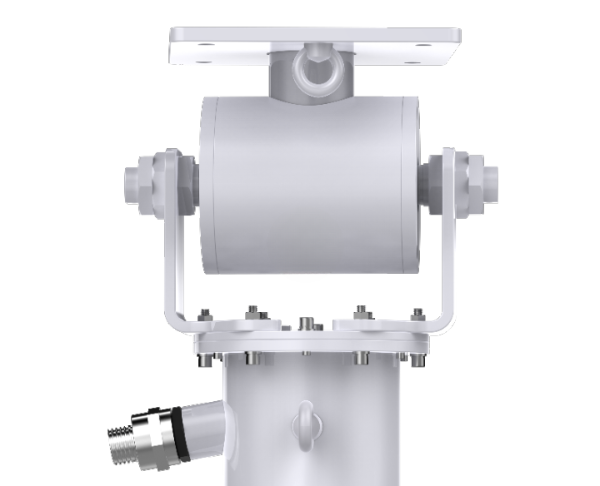

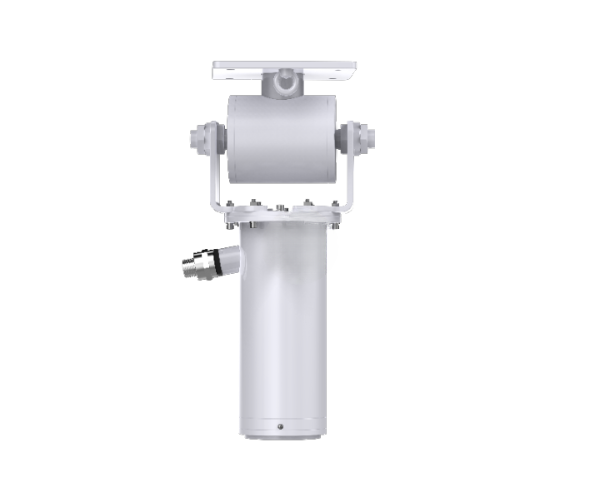

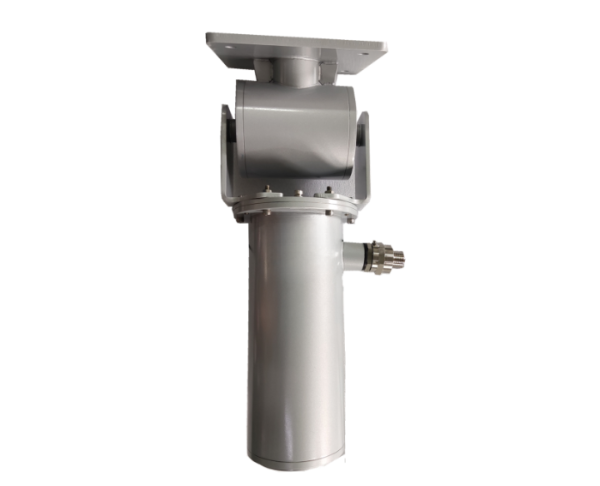

AJSZAZN04 Corrosion Proof Stainless Steel 2MP 37X optical Network Crane Dumping Camera

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4 or M25*1.5

Stable type

oil pressured type

Impact speed

5m/s

Swing angle

≤2.5°

Return back time

≤1.5s

Voltage

AC100-240V, AC24Vor POE

Power

8W

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Image Sensor

1/1.8” Progressive Scan CMOS

Minimum Illumination

Color:0.0005 Lux @(F1.5,AGC ON);

B/W:0.0001Lux @(F1.5,AGC ON)

Shutter

1/25s to 1/100,000s；

Supports delayed shutter

Autoiris

DC

Day/Night Switch

IR cut filter

Digital zoom

16X

Focal Length

6.5-240mm，37X Optical Zoom

Aperture Range

F1.5-F4.8

Horizontal field of view

70.0-2.51°（wide-tele）

Minimum Working distance

100mm-1500mm (wide-tele)

Zoom speed

Approximately 3.5s(optical lens, wide to tele)

Video Compression

H.265 / H.264 / MJPEG

H.265 Type

Main Profile

H.264 Type

BaseLine Profile / Main Profile / High Profile

Video Bitrate

32 Kbps~16Mbps

Audio Compression

G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM

Audio Bitrate

64Kbps(G.711)/16Kbps(G.722.1)/

16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (1920 ×1080); 60Hz: 30fps (1920 ×1080)

Image settings

Corridor mode, saturation, brightness, contrast,

sharpness adjusted by IE/ Client

BLC

Support

Exposure mode

AE / Aperture Priority / Shutter Priority / Manual Exposure

Focus mode

Auto Focus / One Focus / Manual Focus / Semi-Auto Focus

Area exposure / focus

Support

Optical fog

Support

Image stabilization

Support

Day/Night Switch

Automatic, manual, timing, alarm trigger

3D noise reduction

Support

Picture overlay switch

Support BMP 24-bit image overlay, customizable area

Region of interest

ROI supports three streams and four fixed areas

Storage function

Support USB extend Micro SD / SDHC /

SDXC card (256G) disconnected local storage

, NAS (NFS, SMB / CIFS support)

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS

,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6

Interface Protocol

ONVIF(PROFILE S,PROFILE G)

Cable

integrated cable

Size

526*200*249.6mm

Weight

25.9kg

Mount

On crane
