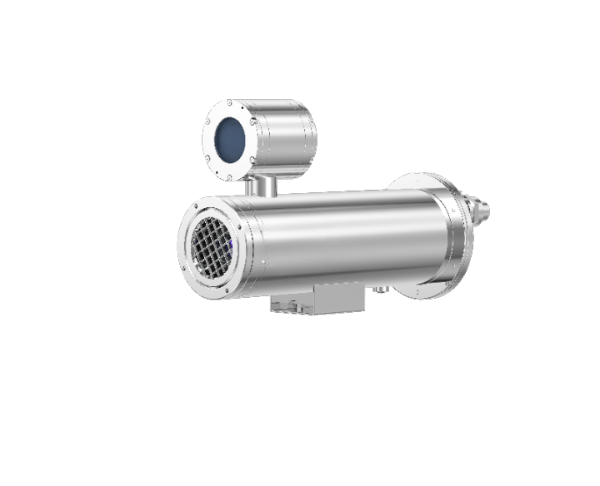

Product Image 3 Product Image 3

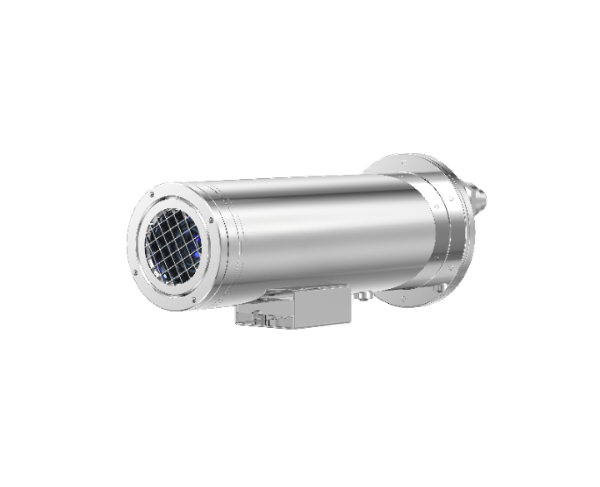

Product Image 4 Product Image 4

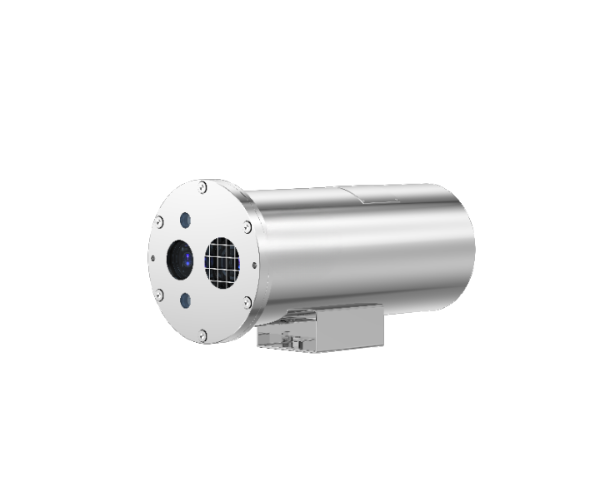

Product Image 5 Product Image 5

AJSZAS100B-IR Fixed Point Surveillance Weather-proof Stainless Steel Thermal Imaging Camera for marine area

Main Features:

  • Stainless steel 304 or 316L material enclosure
  • Enclosure Protection: IP68
  • Optional Power Input: DC12V, AC24V, AC100~240V, POE Power Supply
  • Working Current: ≤1000mA
  • Optional lower temperature range: -20 to 60 ℃

More Details About AJSZAS100B-IR Fixed Point Surveillance Weather-proof Stainless Steel Thermal Imaging Camera for marine area

Product Description

AJSZAS100B-IR is anti-corrosion thermal imaging camera, built-in video compression coding, easy for network transmisstion. Its crust is made of anti-corrosion stainless steel 316L, which can be widely used in marine area, port, drilling platform and harbor.

Intelligent thermal imaging camera

AJSZAS100B-IR adopts intelligent high-temperature pre-alarming output with various grades. It is also higher detection efficiency and less misinformation.

PoE Power supply

AJSZAS100B-IR anti-corrosion thermal imaging camera utilizes Power over Ethernet(PoE) for power and network connectivity, providing a flexible low-voltage install solution.

Professional photoelectric zooming technology

Besides the fixed focus lens, AJSZAS100B-IR also support continuous zooming lens like 25-75mm.

Wide application

AJSZAS100B-IR is mainly applicable in scenarios of zero visibility and strong light source interference, such as airport, harbor, perimeter, oil filed and marine area.



Technical Specifications



Model

AJSZAS100B-IR

Atmospheric pressure

80KPa～110Kpa

Ambient Temperature

–20°c～+60°C

Relative Humidity

≤95% （+25°c）

Window glass

Ge glass for thermal camera

Ingress Protection

IP68

Optional Voltage Input

AC24V, AC100~240V, DC12V, POE POWER SUPPLY

Overall dimension

476*186*190mm

Inner size for camera

270*80*80mm (L*W*H)

Net weight

11.5kg

Housing Material

Stainless Steel 304 or Stainless Steel 316L

Sunshade

Optional



Thermal camera

384

640

Detector

Uncooled microbolometer FPA (Amorphous Silicon)

Array Format/pixel pitch

384*288/17μm

640*480/17μm

Sensitivity

≤50mk@300K

Frame rate

25Hz

Spectral range

8-14μm

Focal length

9,15,19,25,35,40,50mm fixed focus: 25-75mm continuous zooming

Digital zooming

1-8x continuous

Network image resolution

720*576

Analog image resolution

720*576

Mainstream rate

25fps(720x576)

Sub-stream rate

25fps(352x288)

Image mode

HDR(high dynamic range): sea-sky mode, sky-earth mode

Image enhancement

IDE (image details enhancement)

Palette

11 kinds of colors are available (rust, rainbow, white/black, etc.), palette color customize

Network protocol

TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, IGMP, 802.1X, ONVIF(profile S)

Video compression

H.264

Video preview connections

Max. 10 at same time

Number of user, authority

Max 10

High temperature alarm

Alarm based on the differential temperature between target withits background

Intelligent functions

Motion detection, regional intrusion alarm, line crossing alarm, moving path, target enhancement

Network

RJ45 x1 10M/100M/ 1000M base-TX, self-adaption Ethernet port (electrical)

Video output

CVBS (75Ω）PAL

Serial port

RS-232, RS-485

Alarm switch

Input x1, output x1

Storage interface

Support Micro SD(TF) card, (max, 64G)





Person (Detective/Recognition/Identification)

Vehicle (Detective/Recognition/Identification)

Lens 9mm

250/63/31m

720/175/88m

Lens 19mm

570/144/72m

1550/400/200m

Lens 25mm

820/210/104m

2200/580/290m

Lens 35mm

1140/280/142m

3000/800/200m

Lens 50mm

1500/380/190m

3900/1060/540m

Lens 75mm

1750/450/225m

4500/1240/640m

Lens 100mm

2450/650/330m

6000/1750/900m



Camera Drawings

                                                          with sunshade version

Other Accessories



                           AJSZAZ100B Wall Bracket

            AJSZAZ100-C corner bracket                                                    AJSZAZ100-PMB Pole mount adapte



                                                             Wall bracket and Mount adapter





                                                           AJSZAZ100C corner bracket



                                                   AJSZAZ100-PMB pole mounted bracket
