Main Features:
Product Description
AJSCZ637 is ATEX, IECEx certified explosion proof PTZ speed dome camera. Made of stainless steel crust, equipped with 2MP 33X optical zoom camera.
Technical Specification
|
Certificate Mark |
CZ637-C：Ex Ⅱ 2 G Ex db op pr ⅡC T6 Gb Ex Ⅱ 2 D Ex tb op pr ⅢC T80 ºC Db Other model：Ex Ⅱ 2 G Ex db ⅡC T6 Gb Ex Ⅱ 2 D Ex tb ⅢC T80 ºC Db |
|
Series definition |
CZ637-C (optical fiber cable output,Single mode single fiber). CZ637 (None: high configuration, A (Basic), B (Lower configuration), D (Starlight). |
|
Standards |
EN IEC60079-0:2018, EN60079-1:2014, EN60079-28:2015, EN60079-31:2014 , IEC60079-0:2017, IEC60079-1:2014, IEC60079-28:2015, IEC60079-31:2013 |
|
Certificates |
CNEX 19 ATEX 0038X, IECEx CNEX 19.0028X |
Mechanical
|
Housing |
Stainless steel 304 or 316L |
|
IP |
IP68 |
|
Cable thread hole |
1pcs M27×1.25 or M25×1.5 |
|
Wiper |
No |
|
sunshade |
Support |
Electrical
|
Voltage |
AC24V± 25% or POE+ （802.3at) or 100～240V AC |
|
Power |
Less than 75W |
Ambient
|
Ambient temperature |
-40ºC～+60ºC |
|
Air pressure |
80～110kPa |
|
Relative Humidity |
≦95% (no condensation) @25℃ |
Pan & Tilt
|
Pan |
360° endless |
|
Tilt |
-20 to 90° |
|
Speed |
Horizontal 0.1-300°/s, Vertical 0.1-150°/s |
|
Cruise Scan |
Support |
|
Keep watch |
Support |
|
Preset |
64/128/255/300 |
|
Tour |
8 (up to 32 presets per tour) |
|
Resume function |
Support |
|
Auto Cruise |
Support |
|
Auto Scan |
Support |
Camera
|
Image Sensor |
1/1.8" progressive scan, 2.0 megapixel, CMOS |
|
Frame rate |
Main stream: 2MP (1920x1080), Max. 30fps Sub stream: 2MP (1920x1080), Max 30fps Third Stream: D1 (720X576), max 30fps |
|
Min. Illumination |
Color 0.001Lux/F1.5 B/W: 0.0001Lux/F1.5 |
|
Shutter Time |
Auto/ Manual, 1sec~ 1/3,0000 sec |
|
Iris |
Auto/Manual F1.5~F4.8 |
|
Day&Night |
Auto ICR |
|
Digital noise reduction |
2D/3D DNR |
|
S/N Ratio |
More than 52dB |
|
Defog |
Digital Defog |
|
WDR |
120dB |
|
Support |
White balance, auto gain control |
|
Privacy Masking |
Up to 24 areas |
Lens
|
Focal Length |
5.8-191.4mm, 33X optical |
|||
|
Aperture Range |
F1.5-F4.8 |
|||
|
Angle of View |
H: 60.1-3.2°; V:35.3-1.8°; D:67.9-3.7° |
|||
|
DORI distance |
Detect |
Observe |
Recognize |
Identify |
|
1655m (5429.80ft) |
622m (2040.68ft) |
331m (1085.96ft) |
165m (541.34ft) |
|
Artifical Intelligence
|
Video Meta data |
Support human, motor Vehicle and non-motor Vehicle image capture |
|
Perimeter Protection |
Tripwire and intrusion, Support alarm triggering by target types(human and vehicle), Support filtering false alarms caused by animals, rustling leaves, bright lights, ect |
|
SMD Plus |
Support |
|
Auto tracking |
Support |
|
Face Detection |
Support |
General Intelligence
|
Event Trigger |
Motion detection, video tampering, Scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
|
General IVS |
Object Abandoned/ Missing |
Network
|
Network Interface |
1pcs of RJ45, support 10M/100M |
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
Audio Compression |
G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2 |
|
Voice Intercom |
Support |
|
Stream |
Support three streams |
|
Internet Protocol |
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
|
Time Display |
Support |
|
Compatible Integration |
ONVIF( profile S, profile s&G), CGI |
|
Security |
Password protection, Multiple access control |
|
Optional Audio in |
1(LINE IN; bare wire) |
|
Optional Aduio out |
1(LINE OUT; bare wire) |
|
Optional |
7/2 |
Control
|
Camera address |
on/off （0-254） |
|
Focus Mode |
Auto/Manual/One touch |
|
Gain |
off/ lower/ higher |
|
Slow shutter |
X256 MAX |
|
White Balance |
Auto white balance 1/auto white balance 2/Manual/auto |
|
Private |
Off/ Mode 1/ Mode 2 |
|
Video |
3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
|
Digital zoom |
X16 |
|
Zoom display |
on/off |
|
ZCF control mode |
mode 1, mode 2 |
General
|
Cable |
integrated cable |
|
Size |
282.5*282.5*408.1mm |
|
Weight |
18kg |
|
Mounted |
wall, ceilling |
|

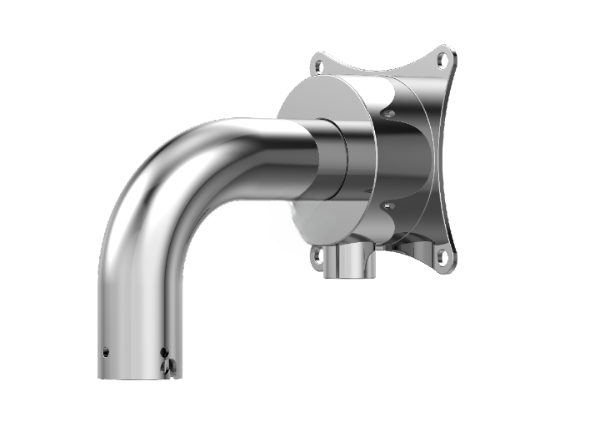

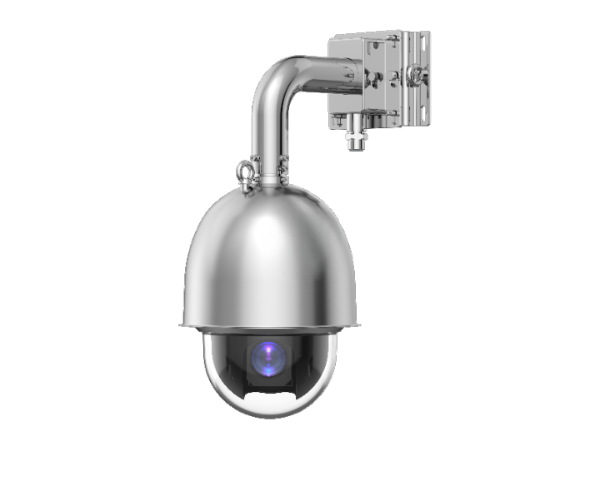

Wall bracket |
ZAZ637-B |
|

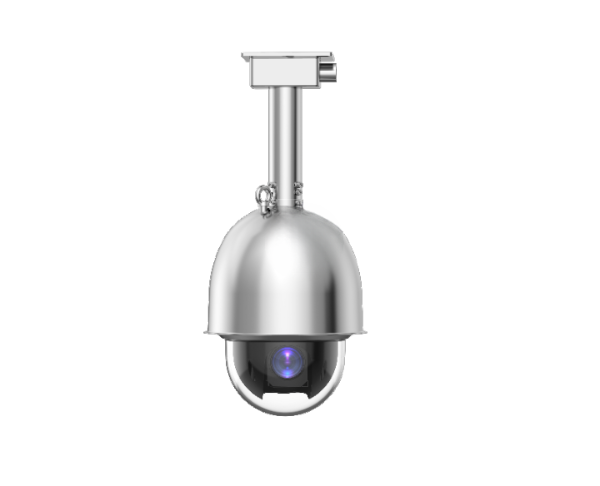

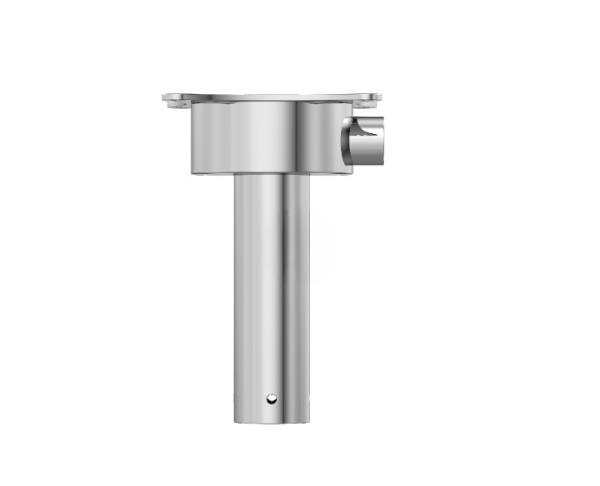

Ceiling mounted bracket |
ZAZ637-D |
|
Sunshield |
optional |
|
Safety hook |
supported |
AJSCZ637 System Overiew
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, AJSCZ637 explosion proof PTZ speed dome camera can provide large monitoring range and great detail. AJSCZ637 explosion proof PTZ speed dome camera has very excellent low light performance due to adopting the latest starlight technology. The camera is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.
Starlight Technology
For challenging low-light applications, starlight Ultra-low Light technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005lux. This explosion proof speed dome camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Wide Dynamic Range
AJSCZ637 explosion proof PTZ speed dome camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, AJSCZ637 explosion proof PTZ speed dome camera can zoom in and track the defined target automatically.
Application
AJSCZ637 explosion proof PTZ speed dome camera is certified ATEX/IECEx Hazardous Location. Zuoan can respond to all of these challenging demands with a wide range of equipment with the most advanced technical features for CCTV systems that operate in Marine(with high corrosive salt), offshore, Oil & Gas and industrial locations (IIB and IIC).
Camera Drawing
