You are here: AJWASYS > Ex > Explosion Proof Cameras > AJSCZ6417 ATEX 4K Ultra HD 360° Panoramic Explosion Proof Fish-eye Dome Camera

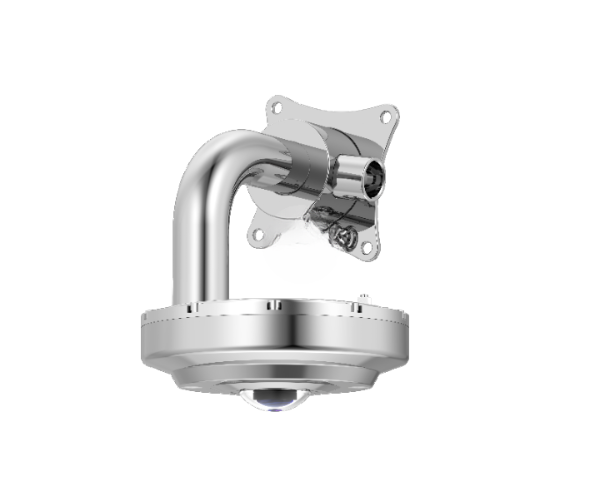

Product Image 2 Product Image 2

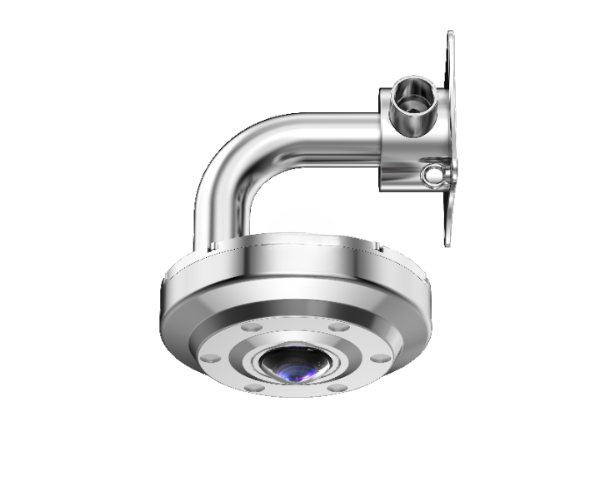

Product Image 3 Product Image 3

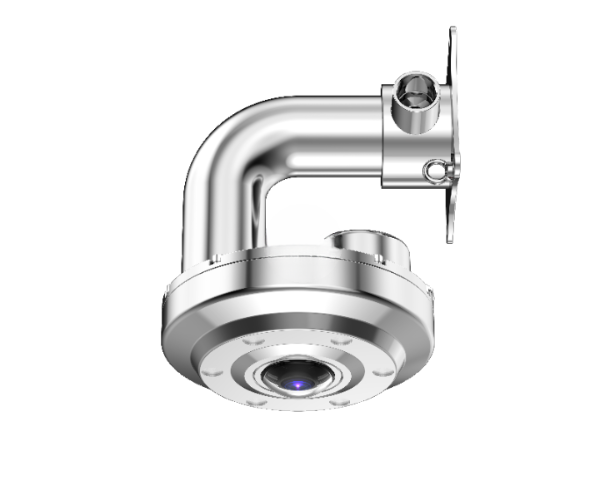

Product Image 4 Product Image 4

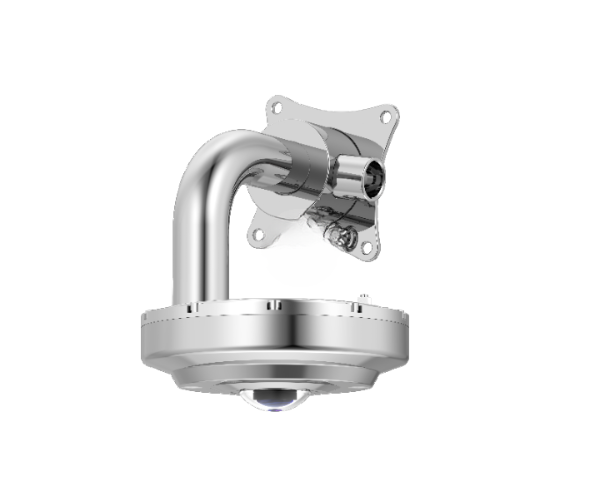

Product Image 5 Product Image 5

AJSCZ6417 ATEX 4K Ultra HD 360° Panoramic Explosion Proof Fish-eye Dome Camera

Main Features:

  • Ultra wide angle lens, 360° panoramic image
  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finish
  • Enclosure Protection: IP68
  • Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
  • Power Input: DC12V or POE Power Supply
  • 1/1.7",progressive scan,CMOS
  • 4K, Max. 4000 * 3000 resolution
  • Fisheye, panoramic and PTZ view
  • Smart IR, up to 10m IR distance
  • 2D/3D DNR, ROI, ONVIF Conformance
  • Ultra265, H.265, H.264, MJPEG
  • DC12V,PoE.Wide voltage range of ±25%

More Details About AJSCZ6417 ATEX 4K Ultra HD 360° Panoramic Explosion Proof Fish-eye Dome Camera

Product Description

AJSCZ6417 4K is Explosion proof camera for Liquefied petroleum gas plant which is ATEX, IECEx certified explosion proof fish-eye camera, which adopts ultra wide angle lens supporting 360° panoramic image.

ATEX, IECEx certified

AJSCZ6417 series explosion proof fish-eye camera. AJSCZ6417 Explosion-proof fish-eye camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.

4K Resolution, 360° Panoramic

AJSCZ6417 Explosion-proof fish-eye camera adopts ultra wide angle lens supporting 360° panoramic image. This explosion-proof fish-eye camera frame rate is 4K (4000*3000)@/ 15fps.

PoE Power Supply

AJSCZ6417 Explosion-proof fish-eye camera voltage input can be DC 12V±25% and PoE (IEEE 802.3af), which max power consumption is 4.0W.

Stainless Steel 316L

AJSCZ6417 Explosion-proof fish-eye camera is full made of stainless steel 316L, also including mounted bracket. This camera can apply for high corrosion area, such as off-landing, marine, ship, waste incineration and chemical factory.

IP66/IP68 Weather Proof

AJSCZ6417 Explosion-proof fish-eye camera ingress protection is IP66/IP68 (2m/2h) according to IEC 60529.

Embedded infrared light

AJSCZ6417 Explosion-proof fish-eye camera is embedded infrared lights around the camera module. Its infrared light is 360° fill-in type, which support night vision up to 10m(33ft) distance.



Technical Specification

Camera

Image sensor

1/1.7", 12.0 megapixel, progressive scan, CMOS

Lens

1.8mm@F2.4

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

1.8

43.8

17.5

8.8

4.4

Angle of View

360°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.05Lux (F2.4, AGC ON)
0Lux with IR

Day / Night

IR-cut filter for day & night function

S/N Ratio

>52dB

IR Range

Up to 10m (33ft)

wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

DWDR



Video

Compression

Ultra265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Fisheye Frame Rate

Main Stream: 15fps (4000*3000, 3000*3000); 25fps (2560*2560);
Sub Stream: 15fps (2000*1500, 2000*2000); 25fps (2000*2000);
Third Stream: 15fps (720*576, 320*288)

Panorama

25fps (3000*2000);
15fps (4000*3000, 3000*2000, 3000*1500)

Frame Rate PTZ

15fps (1920*1080)

Video Bit Rate

128 Kbps~16 Mbps

ROI

Up to 8 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas




White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Flip Vertical/ Flip Horizontal/180°

Dewarping

N/A

HLC

N/A

BLC

Support



Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ



Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)



Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation
EZView
EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+



Live View Display

Mount Type

Support table, wall, and ceiling

Display Mode

Support 10 display modes in total (including display modes of mount types and decoding modes):
Display Mode: Original Image, Fisheye+4PTZ, Panoramic
Preview Mode: Original Image, 360° Panoramic+1PTZ, 180° Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360° Panoramic+6PTZ, Fisheye+8PTZ



Interface

Audio I/O

Audio interface

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

2/1

Multiple Alarm linkage editable

Serial

1 channel RS485 interface

Network

1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

Video Output

1 BNC, impedance 75Ω; amplitude 1V [p-p]



Certifications

Certifications

Ex d II CT6 Gb/ Ex tD A21 IP68 T80℃



General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 11.7W

Dimensions (Ø x H)

Φ180 x 239mm

Net Weight

5.2KG

6.7KG(with wall mount)

Material

Stainless steel 304 or 316L,

Optional with corrosion proof painting

Working Environment

–20°c～+60°C, Humidity: ≤95% RH

Strorage Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH

Ingress Protection

IP66/IP68

Bracket

Optional wall mounted, ceiling mounted



Camera Diagram
