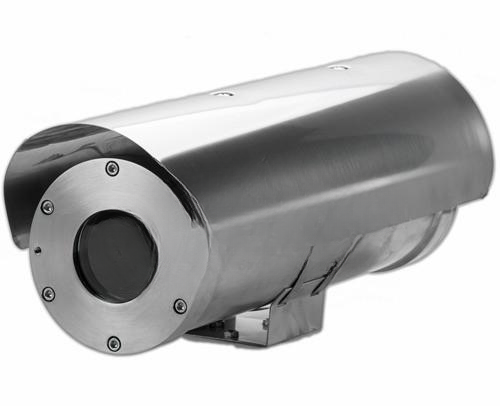

Product Image 2 Product Image 2

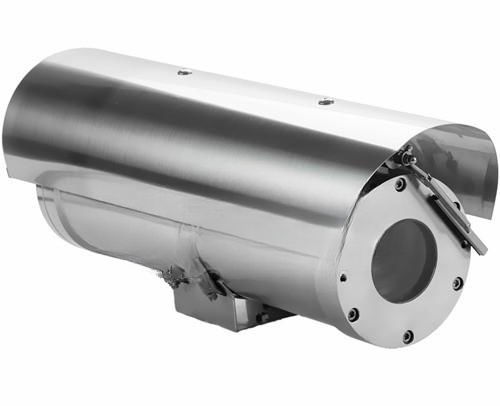

Product Image 3 Product Image 3

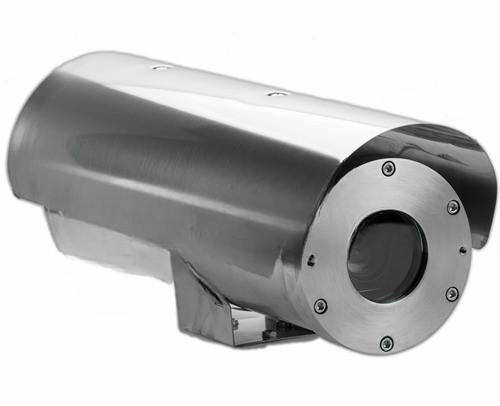

Product Image 4 Product Image 4

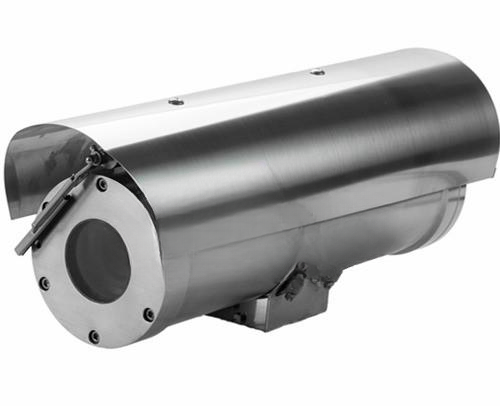

Product Image 5 Product Image 5

AJSCZ100-B ATEX IECEx Explosion proof CCTV Camera

Main Features:

  • ATEX & IECEx Certified
  • Explosion Proof Housing
  • Smart intrusion prevention
  • Stainless steel 304/316L
  • Optional electropolished or corrosion resistant paint finish
  • Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
  • Ex db IIC T6 Gb/ Ex tb IIIC T80℃Db
  • Outdoor-Ready with Sunshade
  • Flexible Mounting Options
  • Ideal for Industrial Use

More Details About AJSCZ100-B ATEX IECEx Explosion proof CCTV Camera

Product Description

AJSCZ100-B is ATEX and IECEx certified explosion proof CCTV Camera. Equipped with sunshade, the AJSCZ100-B can be applied for industry hazardous outdoor locations. Bigger enclosure can load client bullet camera, zoom camera and box camera.

Technical Specification

Certificate

ATEX Certificate Mark


Ⅱ2G Ex db ⅡC T6 Gb,

Ⅱ2D Ex tb ⅢC T80 ºC Db



Certificate

ATEX, IECEx

Standards

IEC/EN60079



Mechanical

ATEX explosion proof housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2m/ 45min)

Cable thread hole

M25X1.5, or M27×1.25、



Electrical

Voltage

AC100V～AC240Vor AC24V

Power

15W/25W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Optical Video signal

1-way video output

Optional network signal

RJ45

Optical Audio

1-way input, 1-way output

Optical Alarm

2-way alarm input, 1-way alarm output

Address code

0/1

Trail cable

2m integrated cable



Ambient

Ambient temperature

-25°～+60°/-40℃～+60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)



Communication

Communication type

RS485

Protocol

Pelco-D, Pelco-P

Communicate Rate

2400~19200bps adjustable

485 Communication

Support



General

Model

CZ100-A

CZ100-B

Sun-shield

Yes

Optional

Wiper

Yes

No

Overall dimension

524*179*215mm

524*179*208mm

Weight

15.5kg

12.5kg
