AJSCZ6417 Series 5MP 360°Panoramic Explosion Proof Fisheye Fixed Dome Camera with Light

Main Features:

  • ATEX, IECEx certified
  • Application: gas zone 1, zone 2; dust zone 21, 22.
  • Ex d II CT6 Gb/ Ex tD A21 IP68 T80℃
  • Ultra-wide angle lens, 360° panoramic image,
  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finish
  • Enclosure Protection: IP68
  • 1/2.8",progressive scan, CMOS
  • 5MP, Max. 2592*1944 resolution
  • Fisheye, panoramic and PTZ view
  • Smart IR, up to 10m IR distance
  • 2D/3D DNR, ROI, ONVIF Conformance
  • Ultra265, H.265, H.264, MJPEG
  • DC12V,PoE.Wide voltage range of ±25%

More Details About AJSCZ6417 Series 5MP 360°Panoramic Explosion Proof Fisheye Fixed Dome Camera with Light

Product Description

The ATEX & IECEx certified AJSCZ6417 series are classic explosion-proof fisheye camera. The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station.

Technical Specifications

Camera

Image sensor

1/2.8", 5.0-megapixel, progressive scan, CMOS

Lens

1.4mm@F2.0

DORI Distance

Lens (mm)

Detect

(m)

Observe

(m)

Recognize

(m)

Identify

(m)

1.4

31.5

12.6

6.3

3.2

Angle of View

180°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR

Day / Night

IR-cut filter for day & night function

S/N Ratio

>55dB

IR Range

Up to 10m (33ft)

Defog

Digital Defog

WDR

120dB



Video

Compression

Ultra265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Fisheye Frame Rate

Main Stream: 5MP (2592*1944), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 25fps;

Third Stream: D1(720*576), Max 25fps

BLC

Support

Video Bit Rate

128 Kbps~16 Mbps

ROI

Up to 8 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas



Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)



Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK



Live View Display

 Mount Type

 Support table, wall, and ceiling



Interface

Network

1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet

Video Output

N/A



Certifications



Certification

ATEX, IECEx certified

Explosion proof certification

DNV 22 ATEX 24383X,

IECEx DNV 22.0019X

ATEX Explosion proof marking

With fill light:

2a81c1927fab43bdb24e798d0583434.jpgⅡ 2 G Ex db op is Ⅱ C T6 Gb

2a81c1927fab43bdb24e798d0583434.jpgⅡ 2 D Ex tb op is ⅢC T80 ºC Db

Without fill light:

2a81c1927fab43bdb24e798d0583434.jpgⅡ 2 G Ex db ⅡC T6 Gb

2a81c1927fab43bdb24e798d0583434.jpgⅡ 2 D Ex tb ⅢC T80 ºC Db

IECEx Explosion proof marking

With fill light:

Ex db op is ⅡC T6 Gb

Ex tb op is ⅢC T80°C Db

Without fill light:

Ex db ⅡC T6 Gb

Ex tb ⅢC T80°C Db



General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 11.7W

Dimensions (Ø x H)

Φ180 x 239mm

Net Weight

5.2kg

Material

Stainless steel 304 or 316L,

Optional with corrosion proof painting

Working Environment

–40°C～+60°C, Humidity: ≤95% RH

Storage Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH

Ingress Protection

IP68

Bracket

Wall Bracket (CZ6417-B)

Ceiling bracket (CZ6417-D)



AJSCZ6417-□□□ EXPLOSION PROOF FIXED CAMERA





Product Drawing:

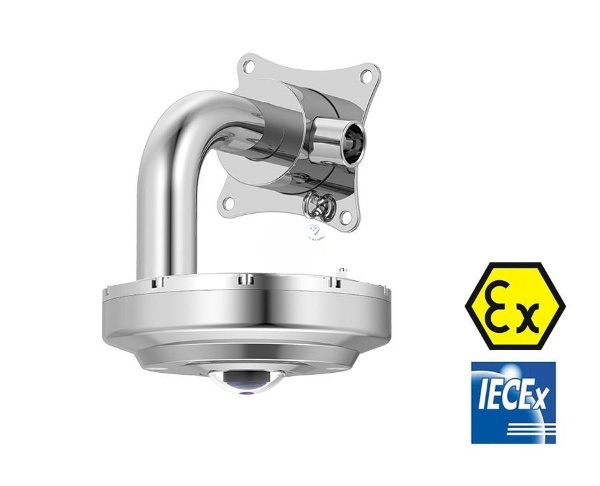

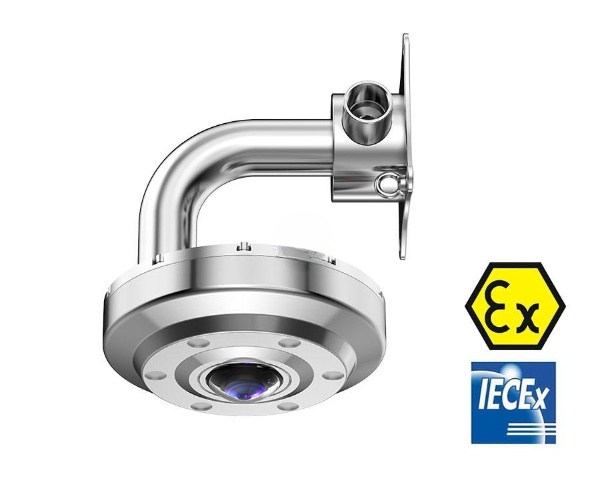

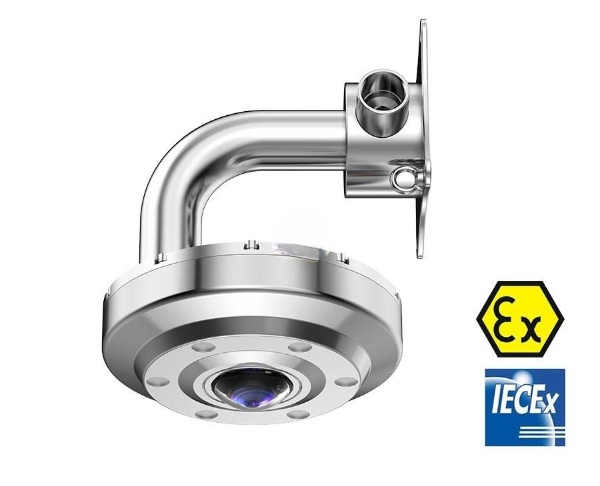

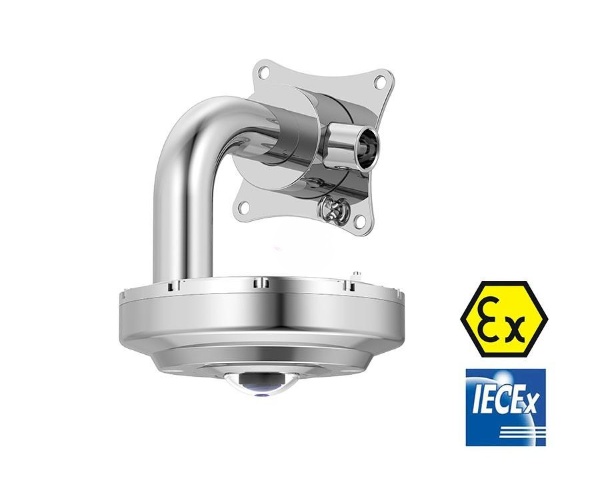

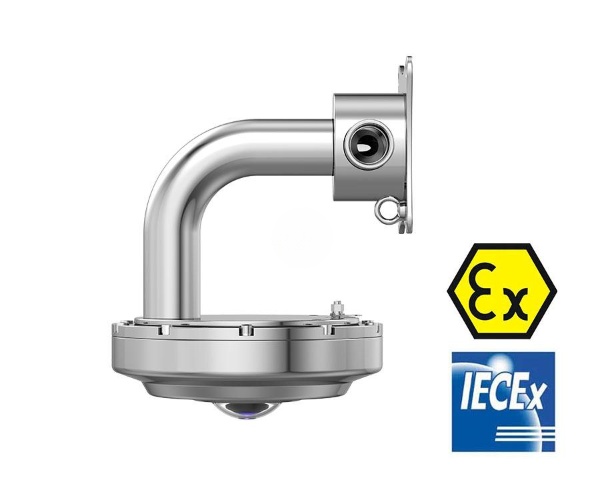

                                    With Wall Bracket (AJSCZ6417-B)



                                      With Ceiling Bracket (AJSCZ6417-D)
