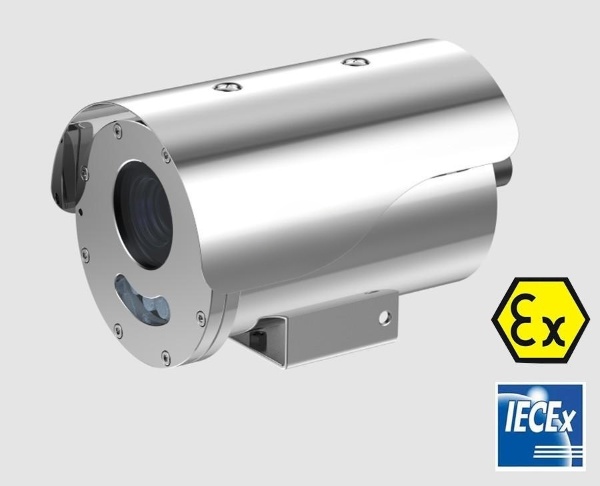

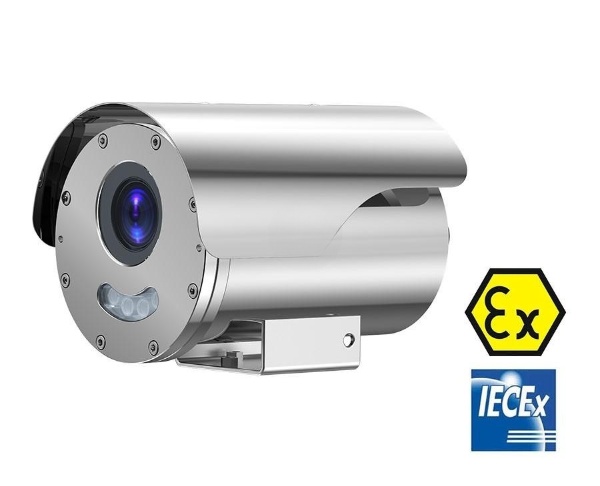

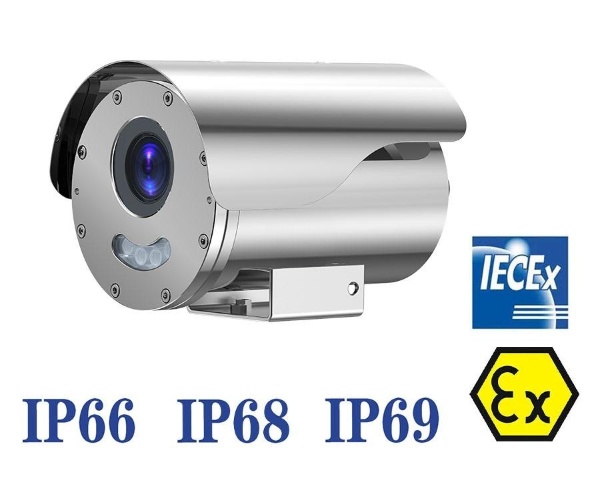

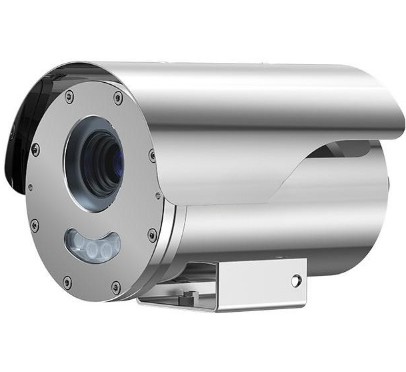

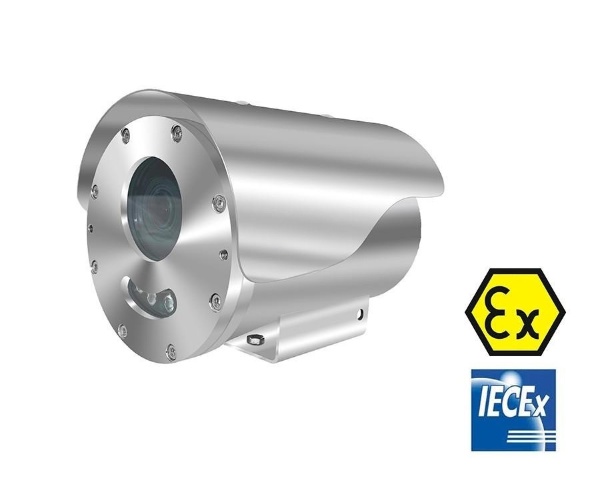

AJSCZ109 2MP HD IR Vari-focal lens Explosion Proof Corrosion Proof Camera

Sensor

1/2.7", 2.0-megapixel, progressive scan, CMOS

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42

16.8

8.4

4.2

12

180

72

36

18

Angle of View (H)

108.05°~ 32.59°

Angle of View (V)

56.81°~ 18.36°

Angle of View (O)

111.91°~36.53°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 60m (209.9ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile, MJPEG

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

9:16 Corridor Mode

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

 Audio Compression

 G.711

 Suppression

 Supported

 Sampling Rate

 8KHZ

 Edge Storage

 Micro SD, up to 128GB

 Network Storage

 ANR, NAS(NFS)

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

EZStation EZView EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

 Network

 10/100M Base-TX Ethernet

 Built-in Mic

 Supported

Certifications

ATEX, IECEx certified

Explosion proof certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof marking

Ⅱ 2 G Ex db ⅡC T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db

IECEx Explosion proof marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 8.5W

Dimensions (L × W × H)

270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)

Net Weight

5.6 kg (12.34 lb)

Gross Weight

6.5 kg (14.33 lb)

Ambient Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Ingress Protection

IP66, IP68 (2m 2h), IP69

Reset Button

Supported

Bracket

ZAZ100B Wall bracket with adaptor

Material

 Stainless steel 304 or 316L

Max Loading

 20kg

Gross Weight

 2.5kg
