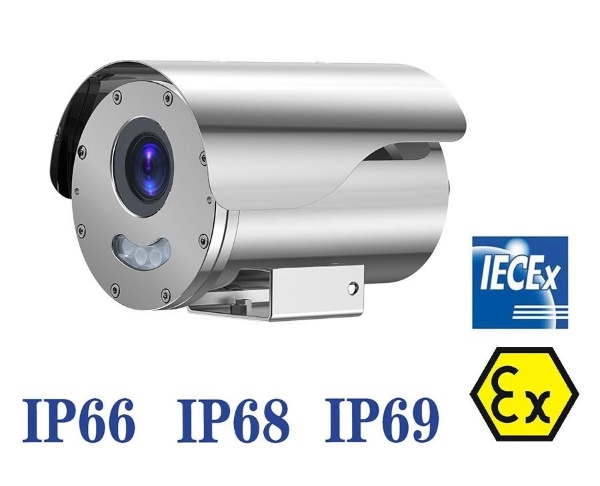

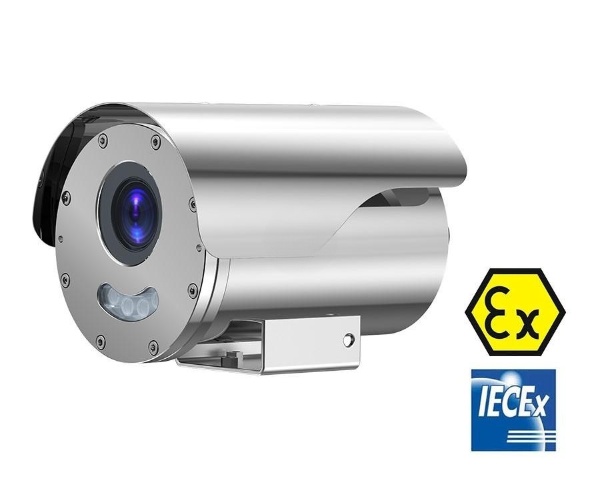

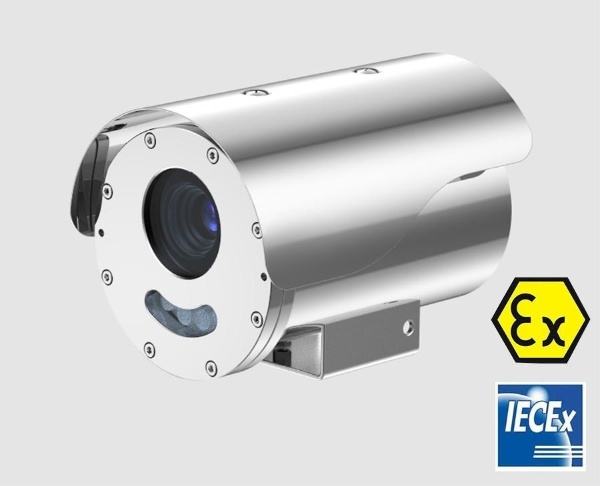

AJSCZ109-8MP HD Intelligent IR Vari-focal lens Explosion Proof Corrosion Proof Camera

Sensor

1/2.8", 8.0megapixel, progressive scan, CMOS

Minimum Illumination

Color: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>56 dB

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Iris

Fixed

Field of View (H)

107.4°~ 29.2°

Field of View (V)

54.2°~ 16.3°

Field of View (D)

111.0°~33.1°

DORI Distance

Lens

(mm)

Detect

(m)

Observe (m)

Recognize

(m)

Identify

(m)

2.8

86.9

34.8

17.4

8.7

12

372.4

149.0

74.5

37.2

IR Range

Up to 60m (196ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream:

8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream:

1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Third Stream:

D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

RoI

Up to 8 areas

Video Stream

Triple streams

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

Support

HLC

Support

BLC

Support

Defog

Digital Defog

Smart intrusion

prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Basic Detection

Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

Audio Compression

G.711

Audio Bitrate

64 Kbps

Two-way audio

Support

Suppression

Support

Sampling Rate

8KHZ

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation EZView EZLive

Web Browser

Plug-in required live view: IE10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

RS485

N/A

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Certifications

ATEX, IECEx certified

Explosion proof

certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof marking

Ⅱ 2 G Ex dbⅡC T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db

IECEx Explosion proof marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 10.5W

Pigtail cable

2meters standard combined cable (power+UTP)

Dimensions

(L × W × H)

270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)

Net Weight

5.6 kg (12.34 lb)

Gross Weight

6.5 kg (14.33 lb)

Material

Stainless steel 304/316L

Ambient Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Ingress Protection

IP66, IP68 (2m 2h), IP69

Reset Button

N/A

Bracket

ZAZ100B Wall bracket with adaptor

Material

Stainless steel 304 or 316L

Max Loading

20kg

Gross Weight

2.5kg
