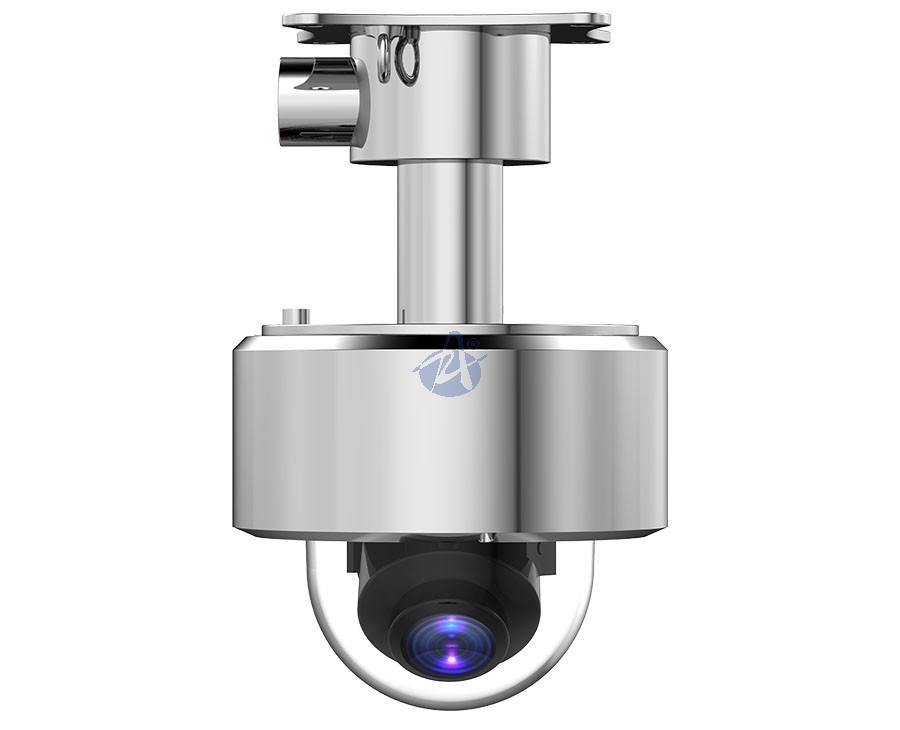

AJSCZ6404 Series 5MP IR Vari-focal Explosion Proof Mini Dome Camera

Image Sensor

1/2.7” 5 Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.5

S/N Ratio

>56 dB

Illumination Distance

40 m (131.2 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 100°–26°
Vertical: 72°–20°
Diagonal: 133°–33°

Iris Type

Fixed

Close Focus Distance

0.8m–0.8m (2.62 ft–2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64 m
(209.97 ft)

25.6 m
(83.99 ft)

12.8 m (41.99 ft)

6.4 m

(21 ft)

T

220 m

(721.78 ft)

88 m

(288.71 ft)

44 m

(144.36 ft)

22 m

(72.18 ft)

 IVS

 Tripwire; intrusion

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 (1 fps-20 fps); 2688 × 1520 (1 fps-25/30 fps)

Sub stream: 704 × 576 (1 fps-25 fps); 704 × 480 (1 fps-30 fps)

Stream Capability

2 streams

Mobile Phone

IOS; Android

Resolution

2592×1944 (2592×1944); 2688×1520 (2688×1520);
3M (2048×1536); 2304×1296(2304×1296);

1080p (1920×1080); 1.3M (1280 × 960);

720p (1280×720); D1 (704× 576/704×480);

VGA (640×480); CIF (352×288/352×240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street/lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2592 × 1944 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

 Audio Compression

 G.711a; G.711Mu; G.726

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP;
NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;

Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Certifications

ATEX, IECEx certified

Explosion proof

certification

DNV 21 ATEX 24764X

IECEx DNV 21.0047X

ATEX Explosion proof

marking

Without optical fibre

II 2 G Ex db IIC T6 Gb

II 2 D Ex tb IIIC T80°C Db

With optical fibre

II 2 G Ex db op pr IIC T6 Gb

II 2 D Ex tb op pr IIIC T80°C Db

IECEx Explosion proof

marking

With optical fibre:

Ex db op pr IIC T6 Gb

Ex tb op pr IIIC T80°C Db

Without optical fibre:

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel In: 5mA 5VDC

Alarm Output

1 channel Out: 300mA 12VDC

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 8.0W

Ambient Temperature

-40°C ~ +60°C (-40°F to +140°F), Humidity: ≤95% RH

Storage Temperature

-40°C ~ +60°C (-40°F to +140°F)

Protection

IP66, IP68 (2m, 2h)

Casing

Stainless steel 304 or 316L

Optional with corrosion proof painting

Dimensions

Φ144 (mm) x 245 (mm) (include ceiling mount)

Net Weight

6.4kg with ceiling mount bracket

Gross Weight

6.5kg with ceiling mount bracket
