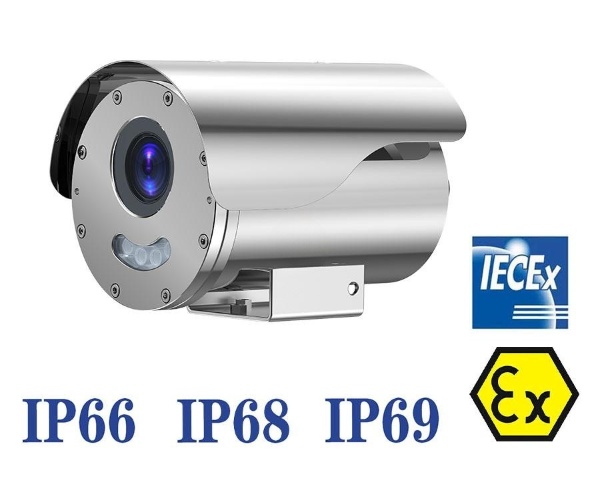

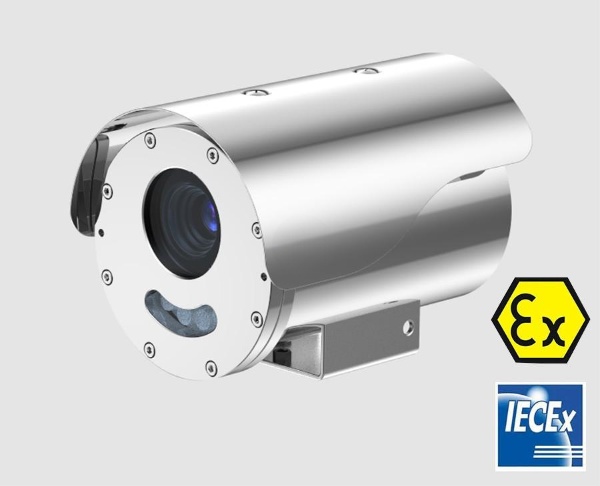

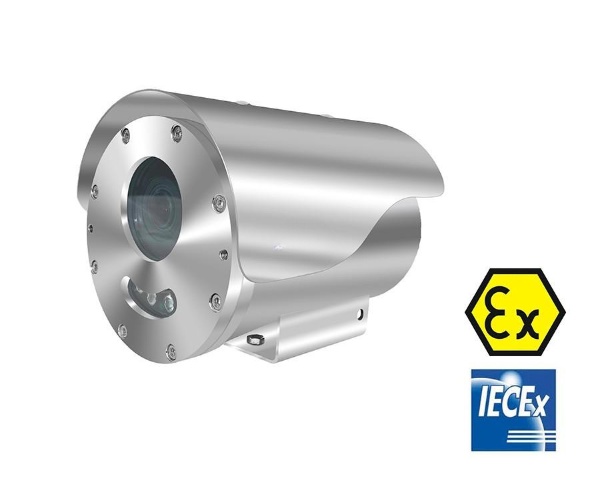

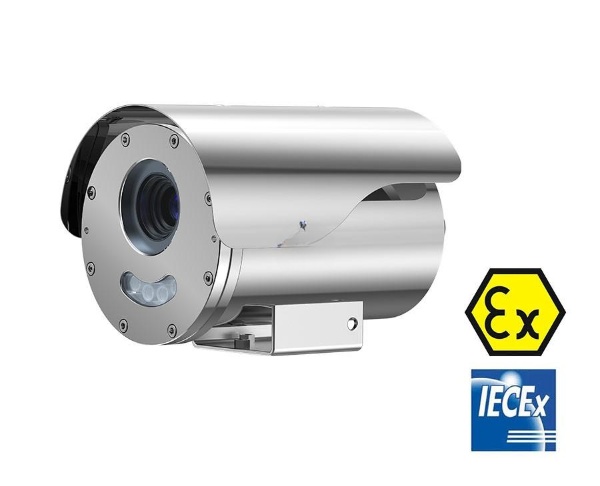

AJSCZ109 2MP Vari-focal lens Explosion Proof Corrosion Proof Camera with Light

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter

Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 Lux@F1.6 (Color, 30 IRE)

0.0002 Lux@F1.6 (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

60 m (196.85 ft) (IR)

Illuminator On/Off

Control

Auto; manual

Illuminator Number

4 (IR LED)

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7mm–13.5mm

Max. Aperture

F1.5

Field of View

Horizontal: 108°–30°
Vertical: 56°–17°
Diagonal: 131°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44.1 m

(144.69 ft)

17.7 m

(58.07 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

T

144.8 m
(475.07 ft)

57.9 m
(189.96 ft)

29.0 m
(95.14 ft)

14.5 m

(47.57 ft)

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; tripwire; intrusion; audio abnormality; voltage detection; external alarm; security exception

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE
Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

ATEX, IECEx certified

Explosion proof certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof marking

Ⅱ 2 G Ex db ⅡC T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db

IECEx Explosion proof marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 5VDC

Alarm Output

1 channel out: 300mA 12VDC

Power Supply

12 V DC/PoE

Power Consumption

Basic: 1.8 W (12 V DC); 2.2 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS + vari-focal); 8.2 W (12 V DC); 9.8 W (PoE)

Ambient Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP66 IP68 (2m 2h) IP69

Casing

Stainless steel 304/316L

Product Dimensions

270.50 mm X 166.00 mm X 160.00 mm (L x W x H)

Cable thread hole

1set M25*1.5 (standard), G3/4 or M27*1.25

Net Weight

5.6 kg (12.34 lb)

Gross Weight

6.5 kg (14.33 lb)

Bracket

ZAZ100B Wall bracket with adaptor

Material

Stainless steel 304 or 316L

Max Loading

20kg

Gross Weight

2.5kg

Fit

ZAF1091 series
