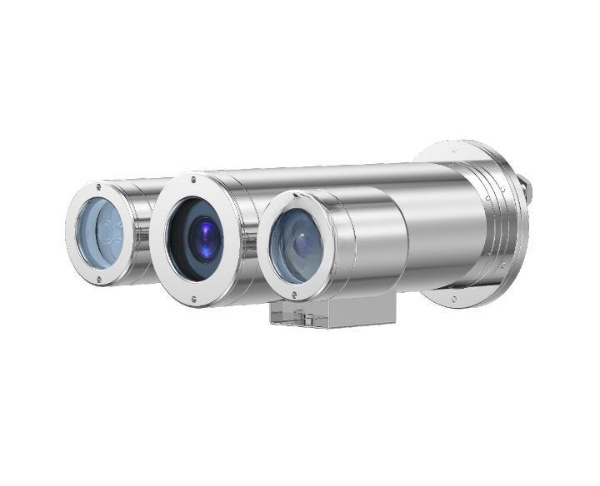

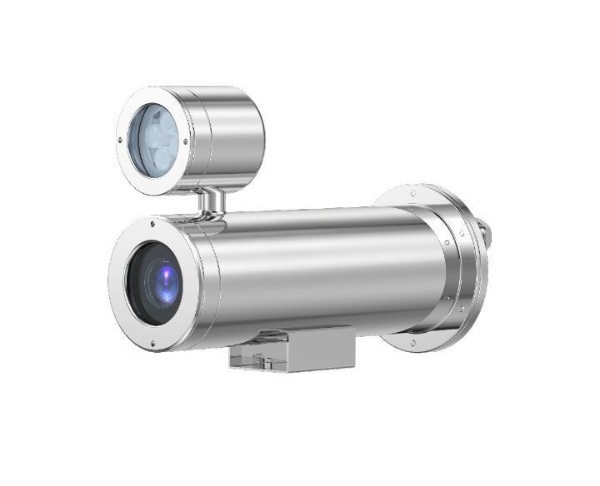

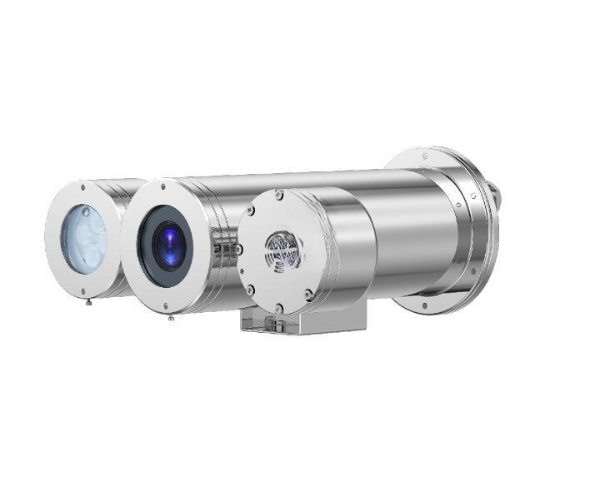

AJSKBA127(F) 2MP Coal mining Explosion Proof CCTV camera

Model

KBA127(F)

KBA127(G)

Atmospheric pressure

80KPa～106Kpa

Ambient Temperature

0°c～+40°C

Relative Humidity

≤95% （+25°c）

Ex-proof mark

Ex d I Mb

MA certificate no.

CCCMT15.0384

Ingress Protection

IP68

Voltage Input

AC127V

Power consumption

Less than 50VA

Window glass

Strong tempered glass

Overall dimension

418*268*166mm

418*360*171mm

Net weight

11KG

13KG

Aux lights distance

White light 30m

Or Infrared light 30m

White light 60m

Or Infrared light 60m

Material

Stainless Steel 304, or Stainless Steel 316L

Network

10/100Mbps, TCP/IP Full Duplex Communication

Fiber optical

(optional)

2port- Single Mode Single Fiber, 1310T/1550R (standard)

Optional Multi Mode Single Fiber, 1310T/1550R

Cable output

Integrated cable, 2m long

Cable gland

2pcs M24*1.5

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Image Resolution

2.0 megapixel

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps;

Third Stream: D1 (704*576), Max 30fps

Min. Illumination:

0.01Lux @(F1.6,AGC ON),

0 Lux with IR

Shutter

Auto/ Manual, 1/100,000 sec

Lens

2.8 - 12 mm, motorized lens

DORI Distance

Lens(mm)

Detect

Observe

Recognize

Identify

2.8

42

16.8

8.4

4.2

12

180

72

36

18

Angle of View (H)

112.7-28.1°

Angle of View (V)

60.1-15.4°

Angle of View (O)

146.5-33.2°

Day& Night:

IR cut filter with auto switch

S/N

>52dB

Image Enhancement

2D/3D DNR

HLC, BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas

WDR

DWDR

Video output

1 RJ45 100M Base-TX Ethernet

Edge Storage

MicroSD, Up to 256GB

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 type

Baseline Profile, Main profile

Compatible

ONVIF (Profile S, Profile G, Profile T), API

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible integration

ONVIF (Profile S, Profile G, Profile T), API
