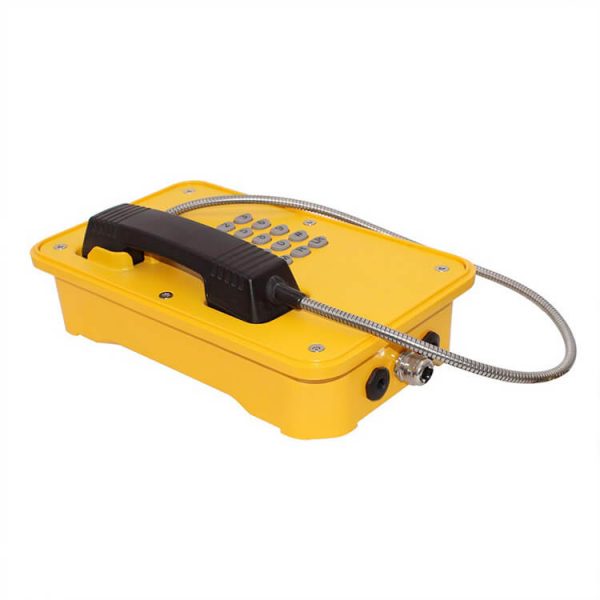

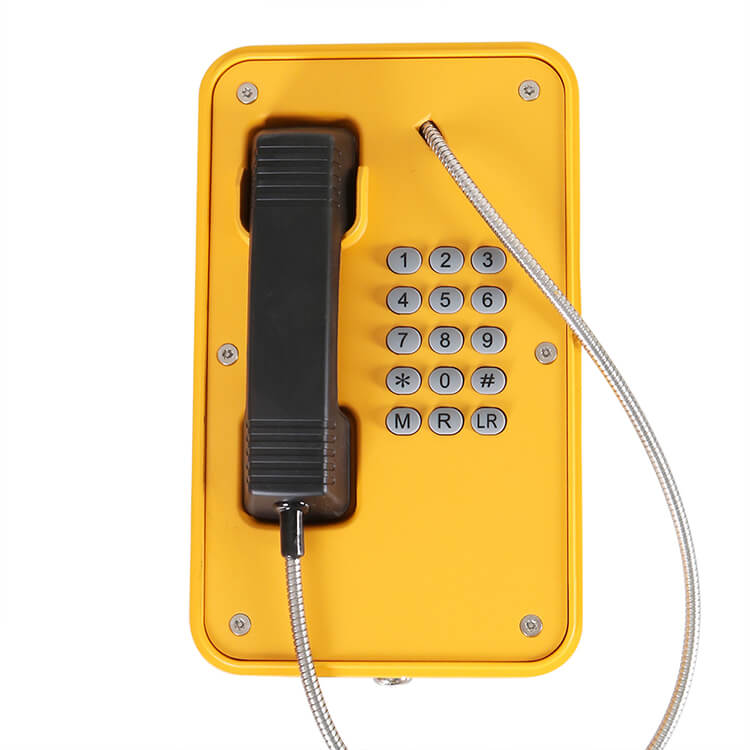

Weather Resistant Telephone

The JR100 series telephones are fully contained within a corrosion resistant cast aluminum weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from molded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armored cord to provide additional resistance to vandalism or heavy industrial use.

Main Features

·       Standard Analogue phone/SIP phone

  • Vandal resistant handset and cord
  • Weatherproof protection to IP 67
  • Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
  • “LR”button for last number redial
  • “R”for flash recall
  • “M”for muting
  • Wall mounting, simple installation
  • Inductive coupler fitted as standard for hard of hearing
  • Phone line powered (Analogue )
  • External power supply or PoE (SIP-VoIP)
  • RJ45 port for SIP phone

More Details About Weather Resistant Telephone

Technical Specifications
Product Details

Parameters

Specifications

Casing Material

Die cast aluminum, epoxy powder coated

 Colors

Yellow, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Keypad

Rubber keypad

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance

IP 67

 Ringing Tone

Shrill warble tone 85 dBA at 1 meter typical

 Hook switch

Electronic / magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

 Weight

Up to 5 kg depending on option


Analogue Version

Parameters

Specifications

  Power Supply

From the analogue telephone network

  Supply Voltage

24 VDC to 65 VDC

  Supply Current

20 mA DC to 100 mA DC

  Ringer Volume

– 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

  Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.


SIP Version

Parameters

Specifications

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions

Parameters

Specifications

Protection Type

IP 66 as per EN60529

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +75°C

Features

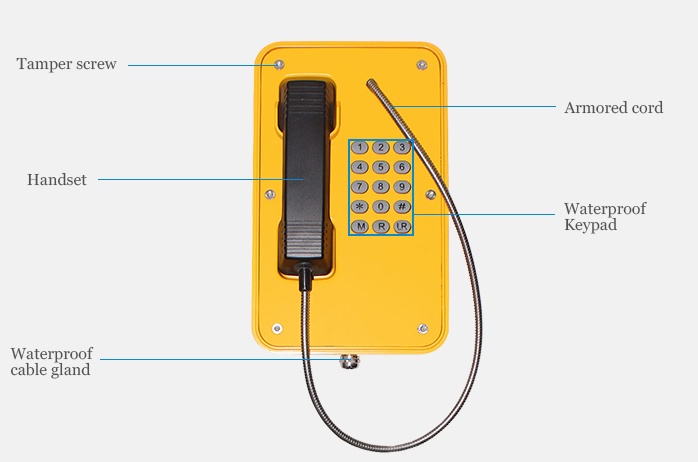

   ★ Strong structure, vandal resistant – Aluminum alloy die-casting shell

   ★ Cord with stainless steel spiral – tensile strength up to 200 KG

   ★ High-quality sound – with built-in induction loop

   ★ 6 stainless steel tamper screws – to prevent theft and tampering

   ★ Ingress protection rating – up to IP 67

   ★ Easy to installation – wall mounting or pillar mounting for choice

Applications

JR103-FK Weather Resistant Telephone more commonly used in

  Toll Station, Gas Station, Mine, Underground Pipe Gallery, Tunnel, Sewage Plant, Hydropower Station, Steel Plant, Food Processing Factory, etc.
