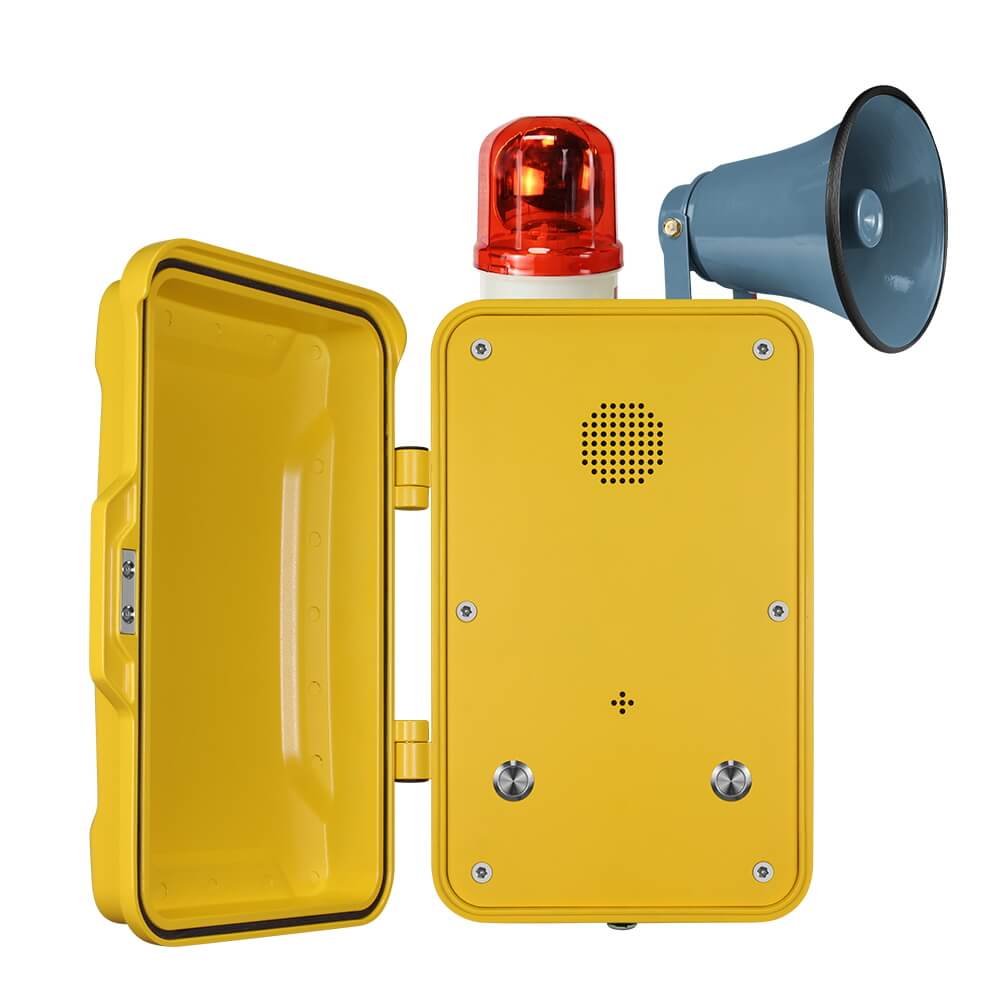

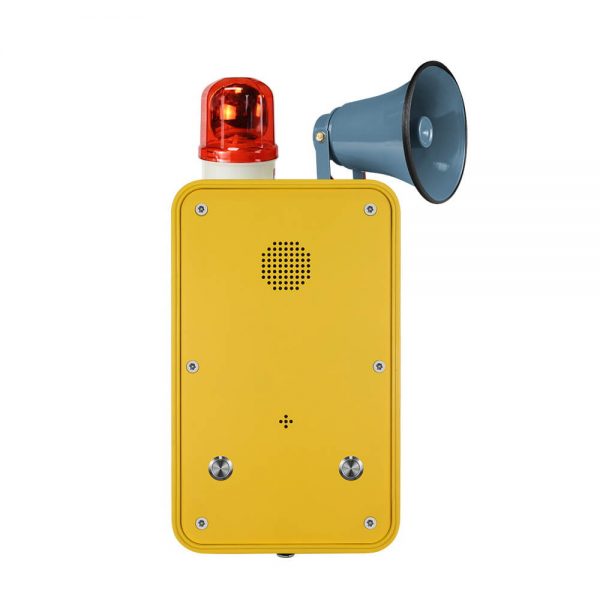

Corrosion protection telephone for Chemical Plants

This Corrosion protection telephone for Chemical Plants is fully contained within a corrosion resistant cast aluminum weatherproof case with door, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

With metal material horn, this Corrosion protection telephone for Chemical Plants can broadcast remotely for notification. The horn works after 1-9 rings (adjustable), shut when press the button or call finished. The lamp will flashing when there is an incoming call.

Main Features

  • Standard Analogue phone or SIP phone
  • Aluminum alloy die-casting body
  • Vandal resistant metal button
  • Handsfree operation
  • Two button for emergency call
  • Weather proof protection to IP66
  • Wall mounting, simple installation
  • Phone line powered(Analogue)
  • External power supply or PoE (SIP-VoIP)
  • RJ45 port for SIP phone
  • CE, FCC, RoHS, ISO compliant
  • IP65/IP67 compliant

More Details About Corrosion protection telephone for Chemical Plants

TECHNICAL SPECIFICATIONS

Product Details

Parameters

Specifications

Casing Material

Die cast aluminum body, cold rolled steel paceplate epoxy powder coated

Colors

yellow, other colors to special order

Handset Material

No handset

Keypad

No Keypad

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance

IP66

Ringing Tone

Shrill warble tone 90 dBA @ 1 meter typical

Hook switch

No hook switch

Push button

Vandal resistant stainless-steel button

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

Up to 6 kg depending on option


Analogue

Parameters

Specifications

Dialing

MF (tone)

Power supply

Drawn from telephone line

Lightning / Transients

Protection to ITU-T k.21 enhanced levels

Programming

Can be programmed remotely by DTMF tone or build-in keypad


SIP-VoIP

Parameters

Specifications

Power Input

12-24V DC

Port

WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX

LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption

Idle:1.5W/ Active:1.8W


Voice Features

     ★ Support SIP 2.0 (RFC3261)

     ★ Codec: G.711A/u, G.7231 high/low, G.729, G.722

     ★ Echo cancellation: Support G.168 and hand-free can support 96ms

     ★ Supports full duplex

     ★ SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

     ★ DTMF: SIP info, DTMF Relay，RFC2833

     ★ Call control features: Flexible dial map, support hot line


Network Features

     ★ WAN/LAN: support Bridge mode

     ★ Support static IP address

     ★ Support DHCP get IP on WAN port

     ★ Support VLAN

     ★ Support web config


Packing Details

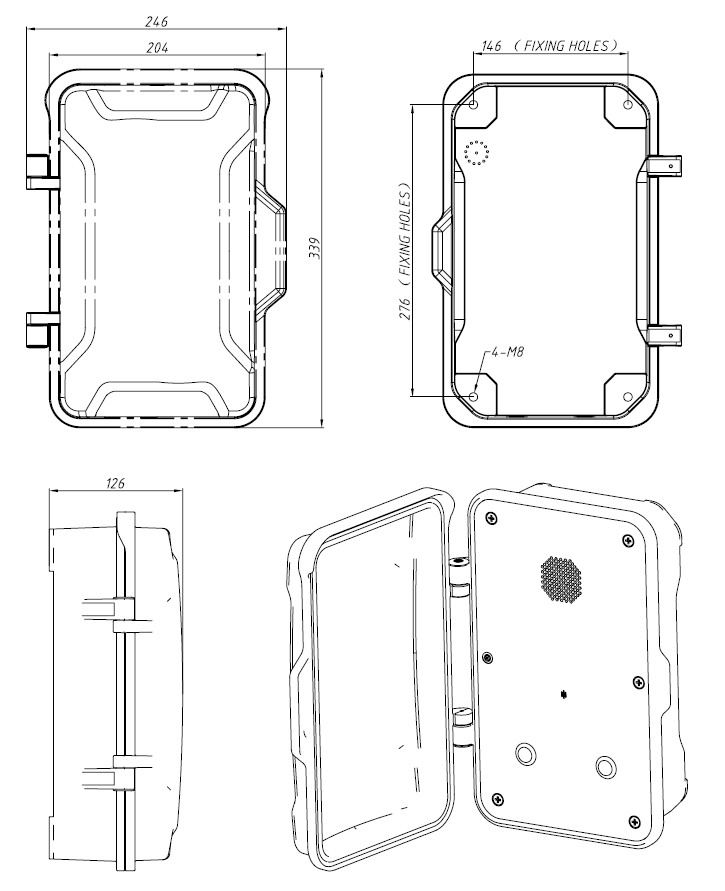

unit size: 204 *334 *126(mm)

Carton size:200*300*440(mm)

Packaging materials: pearl cotton, carton

Gross weight: 7KG Net weight: 6KG
