VoIP Industrial Telephone WIFI SIP Phone

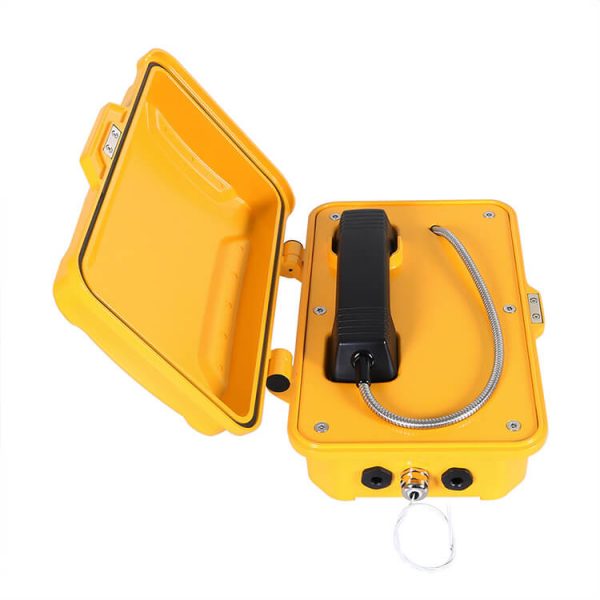

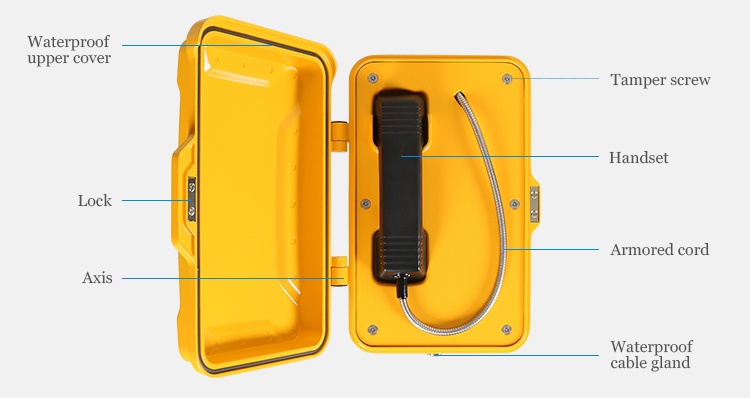

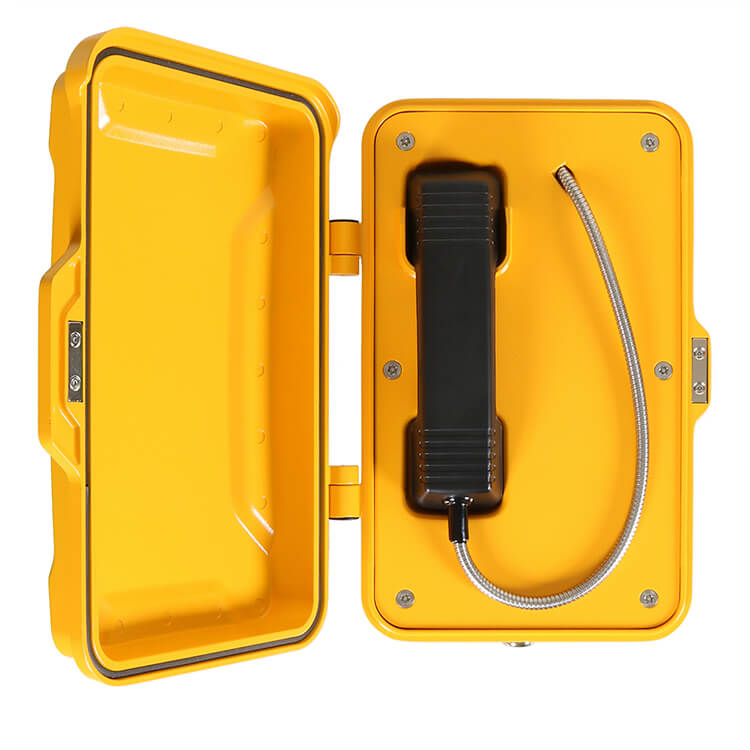

JR103-CB VoIP Industrial Telephone WIFI SIP Phone is fully contained within a corrosion resistant cast aluminum weatherproof case with a door providing complete protection against dust and moisture ingress.

The inner ring of the cover with imported silicone rubber sealing ring, bringing about waterproof and dustproof, which is extremely suitable for high temperature and rainy climate.

Main Features

  • Standard Analogue phone or SIP phone
  • Vandal resistant handset and cord
  • Weatherproof protection to IP67
  • Programmable for autodial
  • Wall mounting, simple installation
  • Inductive coupler fitted as standard for hard of hearing
  • Phone line powered (Analogue)
  • External power supply or PoE (SIP-VoIP) l
  • RJ45 Port for SIP connection

More Details About VoIP Industrial Telephone WIFI SIP Phone

Technical Specification

Analogue Version

Parameters

Specifications

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

–80dB(A) at a distance of 1 m
–110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

Power Supply

From the analogue telephone network



SIP Version

Parameters

Specifications

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W
-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions

Parameters

Specifications

Protection Type

IP 66 as per EN60529

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +75°C



Features

   ★ Strong structure, vandal resistant – Aluminum alloy die-casting shell

   ★ Cord with stainless steel spiral – tensile strength up to 200KG

   ★ High-quality sound – with built -in induction loop

   ★ 6 stainless steel tamper screws – to prevent theft and tampering

   ★ Ingress protection rating – up to IP66

   ★ Easy to installation – wall mounting or pillar mounting for choice



Applications

JR103-CB VoIP Industrial Telephone WIFI SIP Phone more commonly used in

   ★ Toll Station

   ★ Gas Station

   ★ Mine

   ★ Underground Pipe Gallery

   ★ Tunnel

   ★ Sewage Plant

   ★ Hydropower Station

   ★ Steel Plant

   ★ Food Processing Factory



Packing Details

Parameters

Specifications

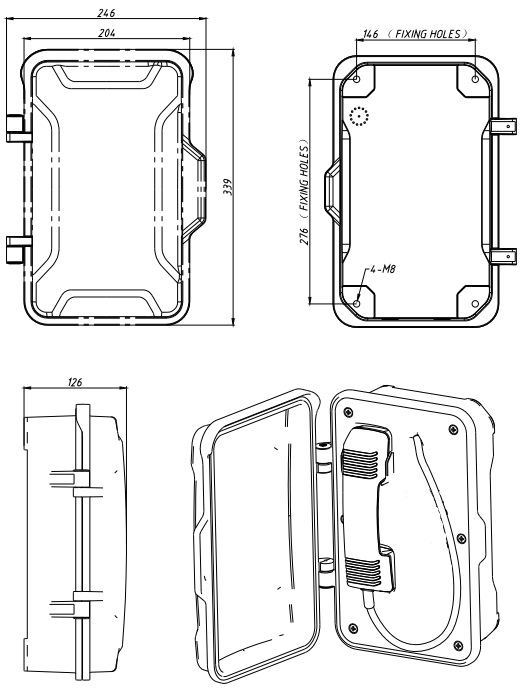

Unit Size

334 *204 *109 (mm

Carton Size

200 *300 *440 (mm)

Packaging Materials

Pearl cotton, carton

Net Weight

5 KG

Gross Weight

6 KG



Customizations

AJWASYS provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.

       ★ HOOK FUNCTION: Magnetic hooks for choice

       ★ KEYBOARD SHAPE: Round buttons and square buttons for choice

       ★ INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

       ★ MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

       ★ HADSET CORD: Black curly handset cord or stainless-steel spiral cord

If you have any custom requirements, please feel free to contact us.
