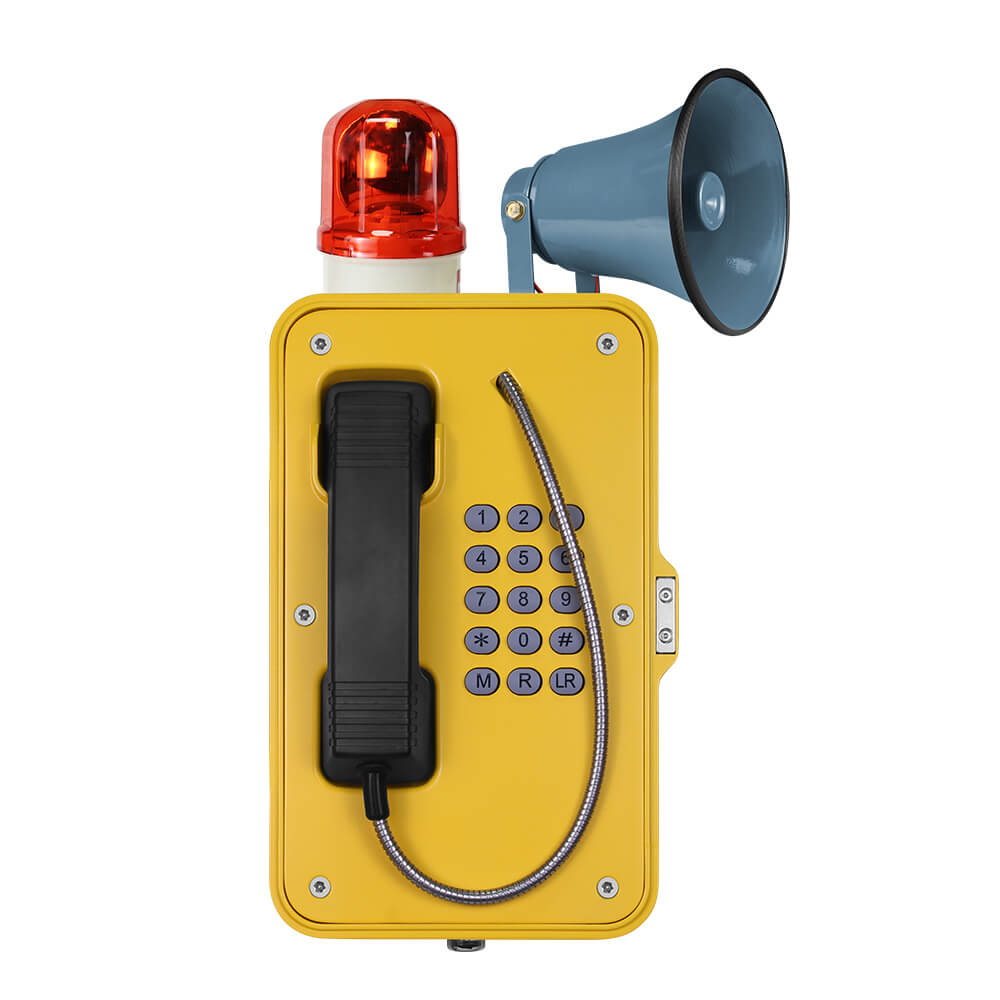

Undergrounds Broadcasting Telephone

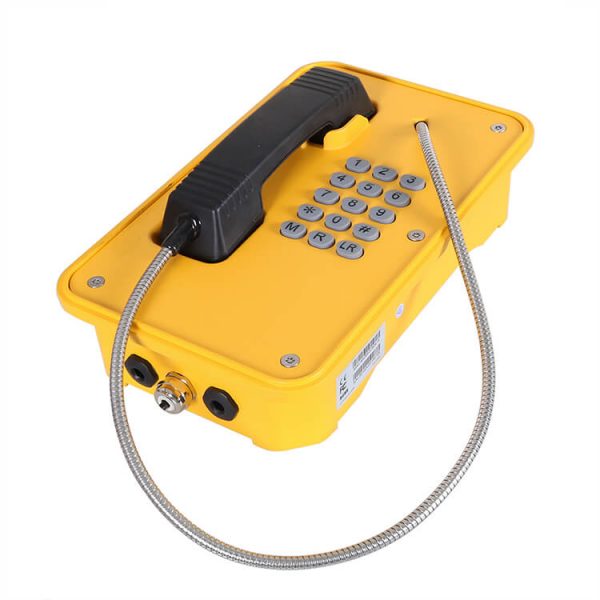

The JR103-FK-HB series telephones are fully contained within a corrosion resistant cast aluminum weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from molded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armored cord to provide additional resistance to vandalism or heavy industrial use.

Main Features

  • Standard Analogue phone/SIP phone
  • Vandal resistant handset and cord
  • Weatherproof protection to IP 66
  • Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
  • The phone will be ringing loudly, and lamp will flashing when there is a incoming call.
  • With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.

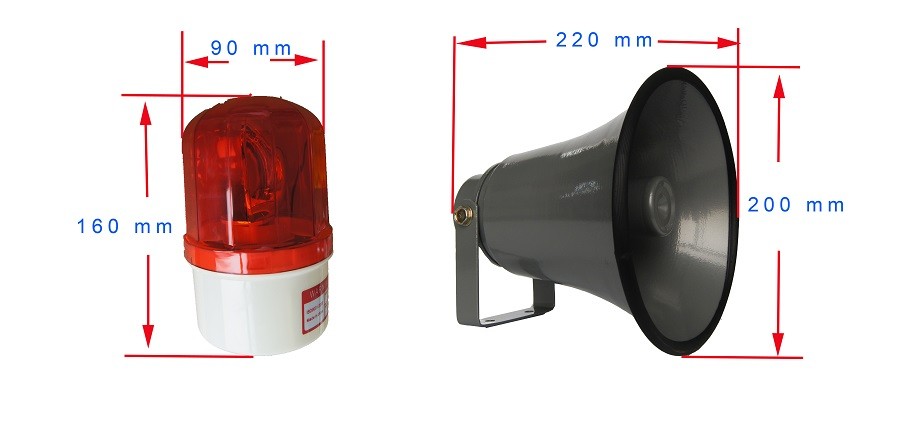

  • Built-in amplifier, with external ringer and lamp: 15 W (30W optional),broadcasting feature
  • Wall mounting, simple installation
  • External power supply

More Details About Undergrounds Broadcasting Telephone

Technical Specification

Product details

Parameters

Specification

Casing Material

Die cast aluminum, epoxy powder coated

 Colors

Yellow, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Keypad

Rubber keypad

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance

IP 67

 Ringing Tone

Shrill warble tone 85 dBA at 1 meter typical

 Hook switch

Electronic / magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

 Weight

Up to 5 kg depending on option



Analogue Version

Parameters

Specification

Power Supply

From the analogue telephone network

  Supply Voltage

24 VDC to 65 VDC

  Supply Current

20 mA DC to 100 mA DC

  Ringer Volume

– 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

  Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

Power Supply

From the analogue telephone network



SIP Version

Parameters

Specification

Power Supply

PoE or 12V DC

  Power Consumption

-Idle:1.5W
-Active:1.8W

  SIP Protocol

SIP 2.0 (RFC3261)

  Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

  Communication Type

Full duplex

  Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions

Parameters

Specification

Protection Type

IP 66 as per EN60529

  Operating Temperature

-30°C to +70°C

  Storage Temperature

-40°C to +75°C



Features

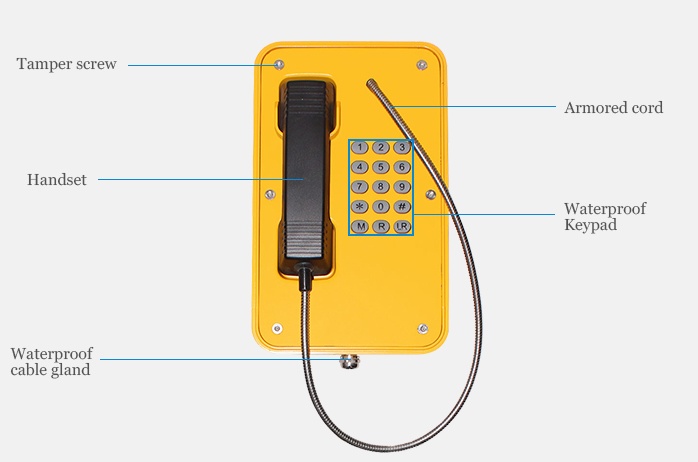

   ★ Strong structure, vandal resistant – Aluminum alloy die-casting shell

   ★ Cord with stainless steel spiral – tensile strength up to 200 KG

   ★ High-quality sound – with built-in induction loop

   ★ 6 stainless steel tamper screws – to prevent theft and tampering

   ★ Ingress protection rating – up to IP 67

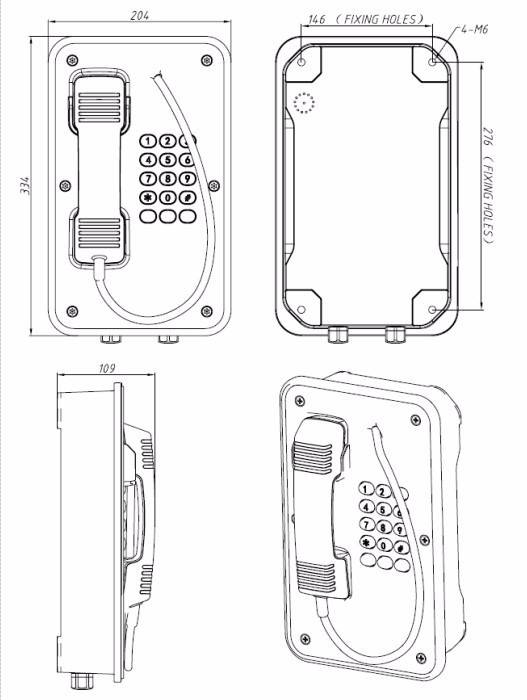

   ★ Easy to installation – wall mounting or pillar mounting for choice



Applications

JR103-FK-HB Undergrounds Broadcasting Telephone more commonly used in

   ★ Toll Station

   ★ Gas Station

   ★ Mine

   ★ Underground Pipe Gallery

   ★ Tunnel

   ★ Sewage Plant

   ★ Hydropower Station

   ★ Steel Plant

   ★ Food Processing Factory
