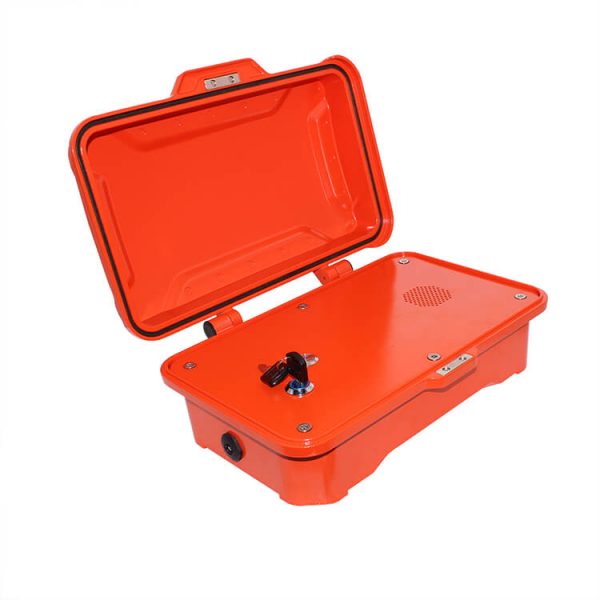

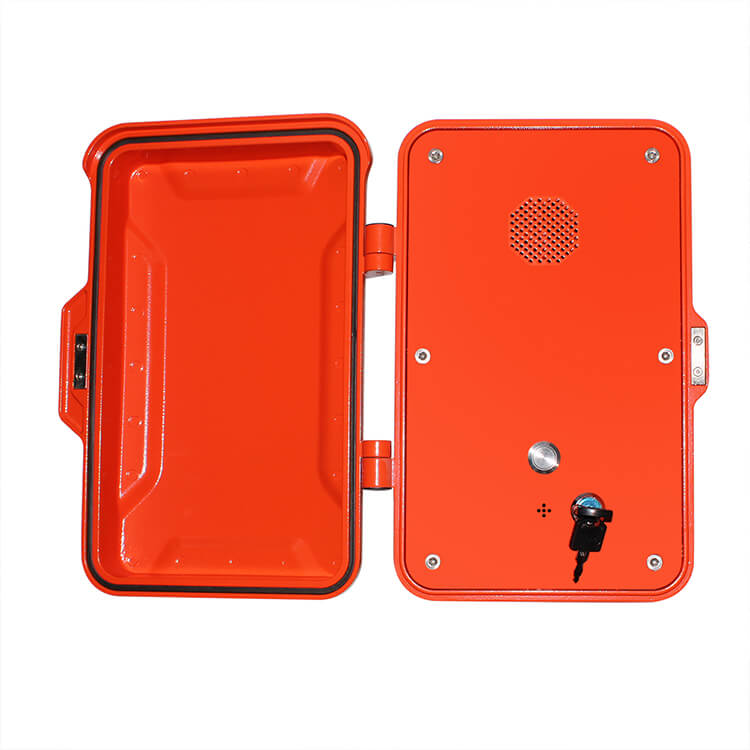

The JR102-SC series Tunnel telephones are
fully contained within a corrosion resistant cast aluminum weatherproof case
and cold rolled steel faceplate with a door providing complete protection
against dust and moisture ingress, resulting in a highly reliable product with
a long MTBF. Extremely easy to install. The cable entrance
is on the back of the phone to prevent artificial damage, while the keypad is
weather and vandal resistant. The JR102-SC series Weatherproof Telephones are
designed for use by the railways, power stations, the armed services and heavy
industry which require very reliable telephony under adverse conditions. Main Features
TECHNICAL
SPECIFICATIONS
Product Details
|
Parameters |
Specifications |
|
Casing Material |
Die cast aluminum
body, cold rolled steel paceplate epoxy powder coated |
|
Colors |
yellow, other
colors to special order |
|
Handset
Material |
No handset |
|
Keypad |
No Keypad |
|
Temperature |
Operating:
-30°C to +65°C Storing: -40°C
to +75°C |
|
Weather
Resistance |
IP66 |
|
Ringing Tone |
Shrill warble
tone 90 dBA @ 1 meter typical |
|
Hook switch |
No hook switch |
|
Push button |
Vandal
resistant stainless-steel button |
|
M.T.B.F. |
Calculated to
have an M.T.B.F. in excess of 50,000 hours using |
|
Weight |
Up to 6 kg
depending on option |
Analogue
|
Parameters |
Specifications |
|
Dialing |
MF (tone) |
|
Power supply |
Drawn from
telephone line |
|
Lightning /
Transients |
Protection to
ITU-T k.21 enhanced levels |
|
Programming |
Can be
programmed remotely by DTMF tone or build-in keypad |
SIP-VoIP
|
Parameters |
Specifications |
|
Power Input |
12-24V DC |
|
Port |
WAN:
10/100Base- T RJ-45 for LAN, Auto MDIX LAN:
10/100Base- T RJ-45 for PC, Auto MDIX |
|
Power
Consumption |
Idle:1.5W/
Active:1.8W |
Voice Features
★ Support SIP 2.0
(RFC3261)
★ Codec:
G.711A/u, G.7231 high/low, G.729, G.722
★ Echo
cancellation: Support G.168 and hand-free can support 96ms
★ Supports
full duplex
★
SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server
★ DTMF: SIP info,
DTMF Relay，RFC2833
★ Call control
features: Flexible dial map, support hot line
Network Features
★
WAN/LAN: support Bridge mode
★ Support static
IP address
★ Support DHCP
get IP on WAN port
★ Support
VLAN
★
Support web config
Packing Details
Unit size: 334*204*109 (mm)
Carton size:200*300*440 (mm)
Packaging materials: pearl cotton, carton
Net weight: 5 KG
Gross Weight: 6 KG
