IP Hotline Industrial Waterproof Phones

JR101-CB IP Hotline Industrial Waterproof Phones has eye-catching yellow hosing color by default, which is easy to spot. The aluminum alloy die-casting shell of JR101-CB can withstand a great deal of punishment. The imported seal ring is placed inside to extend service life and ingress protection rating is up to IP67.

Even in the hazardous areas, IP Hotline Industrial Waterproof Phones may offer reliable voice and high quality communication.

Main Features

  • Standard Analogue phone or SIP phone
  • Aluminum alloy die-casting body
  • Vandal resistant handset and cord
  • Weatherproof protection to IP67
  • Programmable for autodial
  • Wall mounting, simple installation
  • Inductive coupler fitted as standard for hard of hearing
  • Phone line powered(analogue)
  • External power supply or PoE (SIP)
  • RJ45 Port for SIP connection
  • CE, FCC, ROSH compliant

More Details About IP Hotline Industrial Waterproof Phones

Technical Specification

Analogue Version

Parameters

Specifications

 Power Supply

PoE or 12V DC

  Power Consumption

-Idle:1.5W
-Active:1.8W

  SIP Protocol

SIP 2.0 (RFC3261)

  Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

  Communication Type

Full duplex

  Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions

Parameters

Specifications

  Protection Type

IP 66 as per EN60529

  Operating Temperature

-30°C to +70°C

  Storage Temperature

-40°C to +75°C



Product Description

Parameters

Specifications

Casing Material

Die cast aluminum, epoxy powder coated

 Colors

Yellow, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Keypad

No keypad

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance

IP67

 Ringing Tone

Shrill warble tone 80 dBA at 1 meter typical

 Hook switch

Electronic / magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

 Weight

Up to 7 kg depending on option

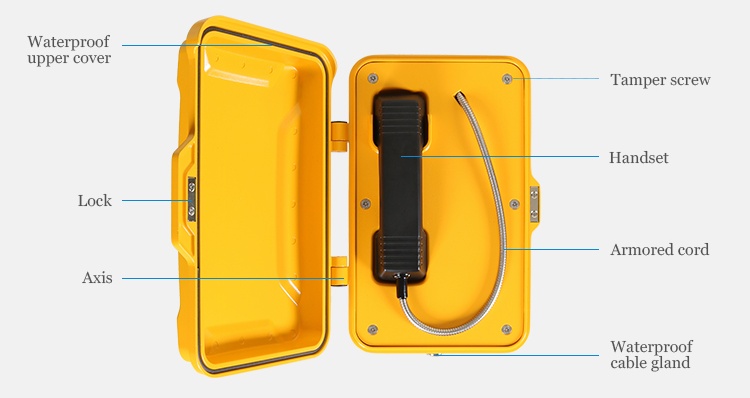

Features

     ★ Waterproof upper cover – built in imported rubber ring

     ★ Automatically detection –  send test reports to the specified IP by opening the lock

     ★ Imported ABS and PC composite handset – vandal resistant

     ★ 6 stainless steel tamper screws – to prevent theft and tampering

     ★ Ingress protection rating – up to IP67

     ★ Easy to use – automatic dial-up while pick up handset

Applications

JR101-CB IP Hotline Industrial Waterproof Phones more commonly used in

     ★ Airports

     ★ Railways

     ★ Mine

     ★ Underground Pipe Gallery

     ★ Tunnel

     ★ Sewage Plant

     ★ Power Plant

     ★ Steel Plant

     ★ Food Products Factory

Packing Details

Parameters

Specifications

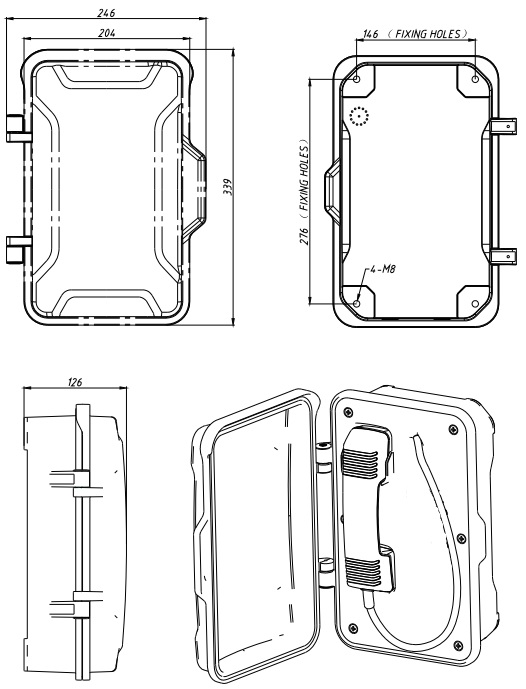

Unit Size

339 *146 *126 (mm)

  Carton Size

200 *300 *440 (mm)

  Packaging Materials

Pearl cotton, carton

  Net Weight

6 KG

  Gross Weight

7 KG



Customizations

AJWASYS provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.

       ★ HOOK FUNCTION: Magnetic hooks for choice

       ★ KEYBOARD SHAPE: Round buttons and square buttons for choice

       ★ INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

       ★ MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

       ★ HADSET CORD: Black curly handset cord or stainless-steel spiral cord

If you have any custom requirements, please feel free to contact us.
