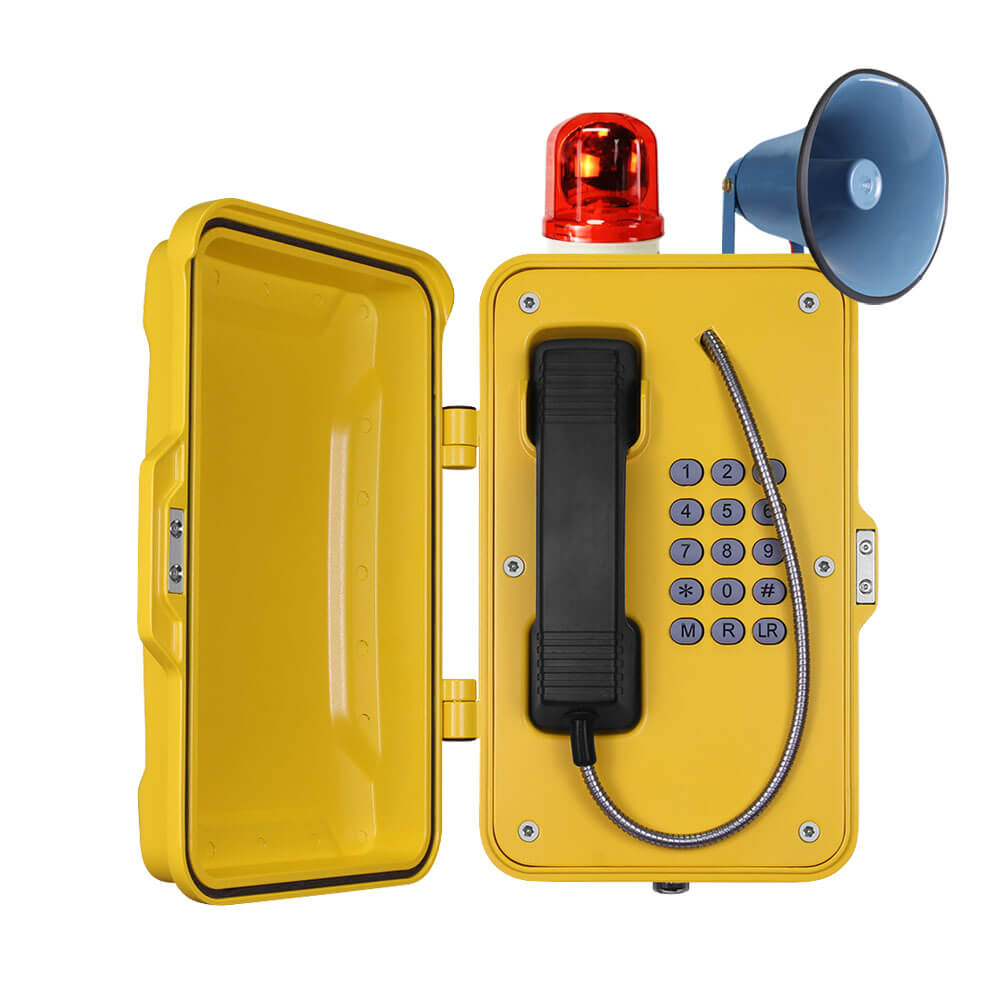

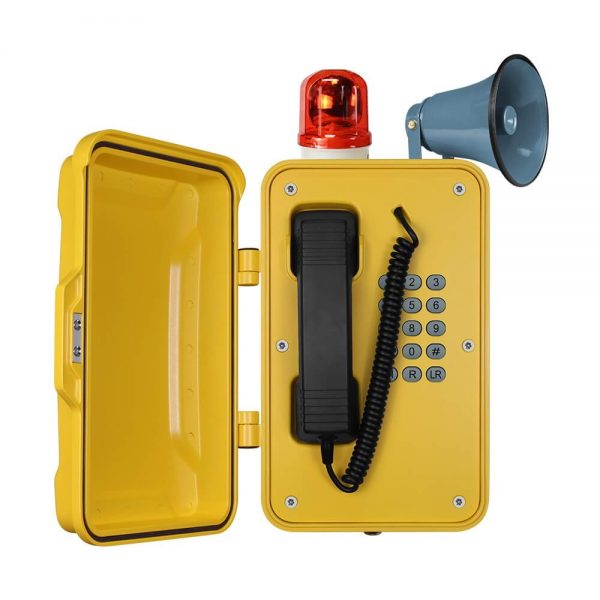

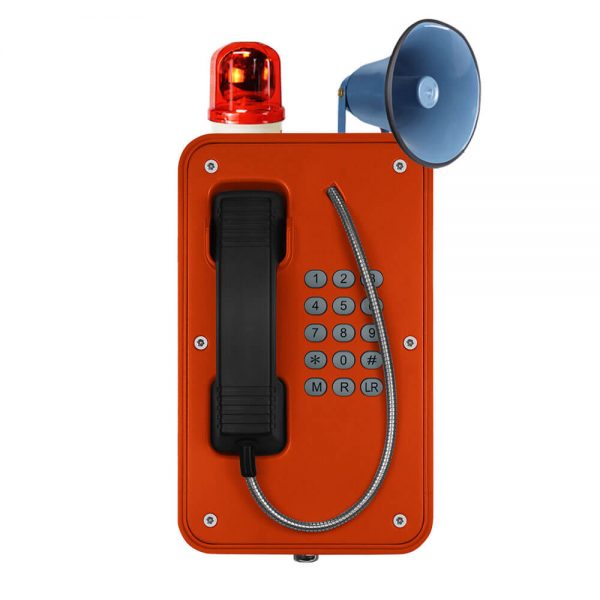

As an Undergrounds Mining Telephones with flashing lamp
& horn, it is fully contained within a corrosion resistant cast aluminum
weatherproof case with a door providing complete protection against dust and
moisture ingress, resulting in a highly reliable product with a long MTBF. Equipped with horn and beacon, the horn can broadcast
remotely for notification, horn works after 1-9 rings (adjustable), shut when
handset lifted, or call finished. Horn works after 1-9 rings, shut when handset
lifted, or call finished. The LED Red beacon begins to flash when ringing or in
use, attracting attention to the phone when call comes, it could be very useful
in the noisy environments. Main Features
TECHNICAL SPECIFICATIONS
Product Details
|
Parameters |
Specifications
|
|
Casing
Material |
Die cast aluminum,
epoxy powder coated. |
|
Colors |
Yellow, other
colors to special order |
|
Handset
Material |
Cycoloy with
stainless steel spiral cord |
|
Keypad |
Rubber Keypad |
|
Temperature |
Operating:
-30°C to +65°C Storing:
-40°C to +75°C |
|
Weather
Resistance |
IP66-IP67 |
|
Ringing Tone |
Shrill warble
tone 80 dBA @ 1 meter typical |
|
Hook switch |
Electronic /
magnetic with no visible moving parts |
|
M.T.B.F. |
Calculated to
have an M.T.B.F. in excess of 50,000
hours using |
|
Weight |
Up to 6 kg
depending on option |
Analogue
|
Parameters |
Specifications |
|
Dialing |
MF (tone) |
|
Power supply |
AC/DC Power
Supply |
|
Lightning /
Transients |
Protection to
ITU-T k.21 enhanced levels |
|
Programming |
Can be
programmed remotely by DTMF tone or use
keypad |
SIP-VoIP
|
Parameters |
Specifications |
|
Adapter Input |
100-240VAC
50~60Hz Output:5V/1A |
|
Port |
WAN: 10/100Base-
T RJ-45 for LAN, Auto MDIX LAN:10/100Base-
T RJ-45 for PC, Auto MDIX |
|
Power
Consumption |
Idle: 1.5W/
Active:1.8W |
Voice Features
★ Support 2 lines SIP, SIP 2.0 (RFC3261)
★ Codec:
G.711A/u, G.7231 high/low, G.729,
G.722, G.726
★ Echo
cancellation: Support G.168 and hand-free can
support 96ms
★ SIP support
SIP domain, SIP authentication (none,
basic, MD5), DNS name of server, peer to peer
★ SIP support 2
servers, user can through each server to
calling in and out
Network Features
★ WAN/LAN: support Bridge mode
★ Support PPPoE
for xDSL
★ Support VLAN
★ Support Stun
penetration
★ Support DHCP get IP on WAN port
