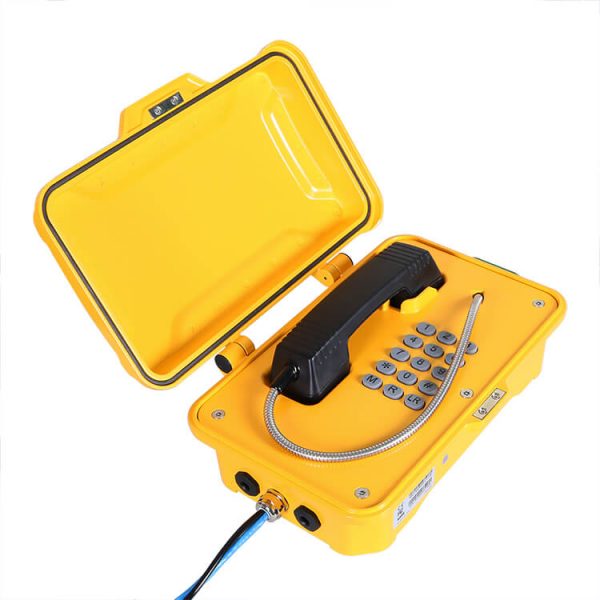

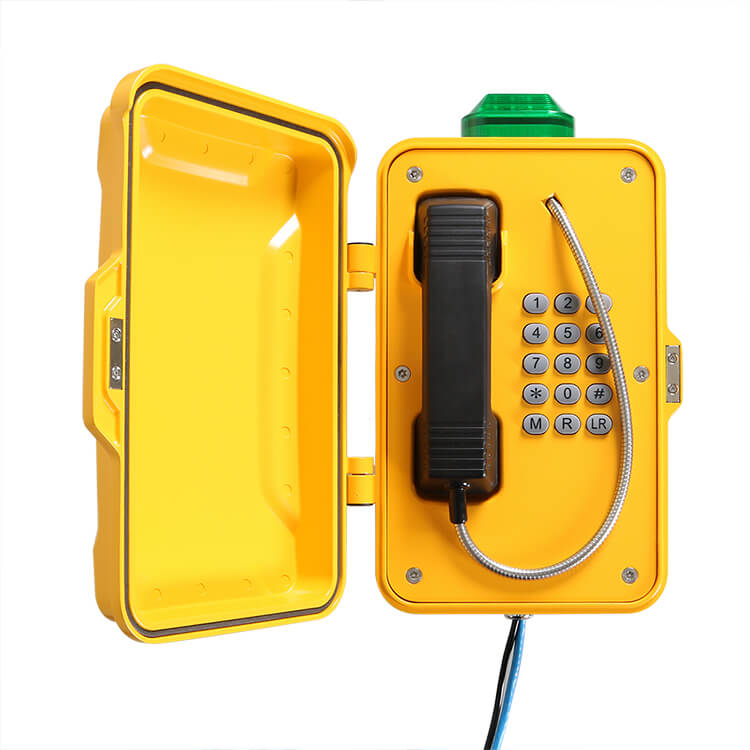

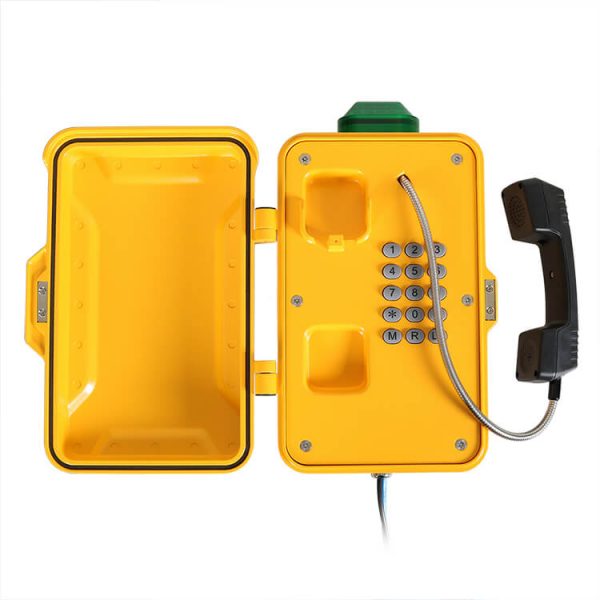

This
Waterproof Telephone with Flashing Beacon is fully contained within a corrosion
and vandal resistant cast aluminum weatherproof case with a pivoted door
providing complete protection against dust and moisture ingress, resulting in a
highly reliable product with a long MTBF. With
LED lamp fixed on the top, when there is a incoming call, the lamp will
flashing. Main Features of Waterproof telephone
TECHNICAL SPECIFICATION
Analogue Version
Parameter |
Specification |
Power Supply |
From the
analogue telephone network |
Supply
Voltage |
24 VDC to 65
VDC |
Supply
Current |
20 mA DC to
100 mA DC
|
Ringer Volume |
– 80dB(A) at
a distance of 1 m – 110dB(A) at
a distance of 1 m (for external horn speaker) |
Dialing
Method |
DTMF mode in
accordance with ITU-T recommendation Q.23. |
SIP Version
Power Supply |
PoE or 12V DC |
Power
Consumption |
-Idle:1.5W -Active:1.8W |
SIP Protocol |
SIP 2.0
(RFC3261) |
Support Codec |
G.711 A/U,
G.722 8000/16000, G.723, G.729 |
Communication
Type |
Full duplex |
Ringer volume |
– 90~95dB(A)
at a distance of 1 m – 110dB(A) at
a distance of 1 m (for external horn speaker) |
Ambient conditions
Protection
type |
IP 66 as per
EN60529 |
Operating
temperature |
-40°C to
+70°C |
Storage
temperature |
-45°C to
+85°C |
Package
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: Pearl cotton, Carton
Net weight: 6 KG
Gross weight: 7 KG
