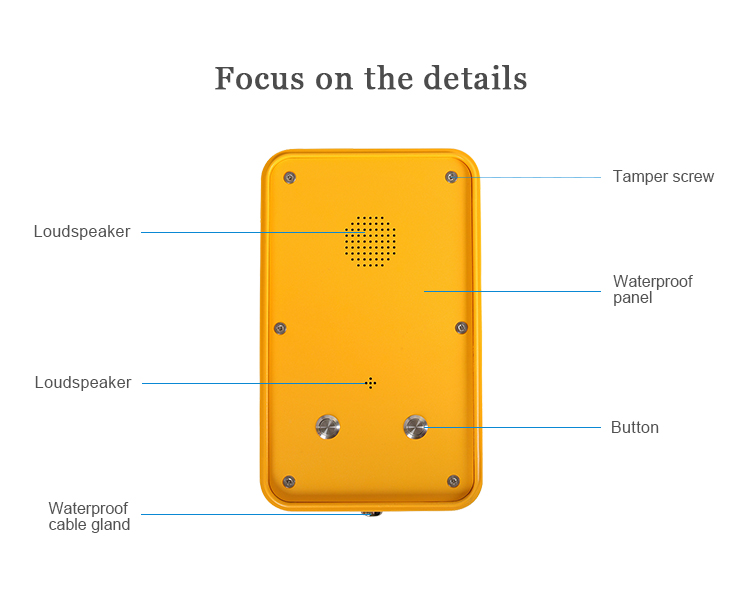

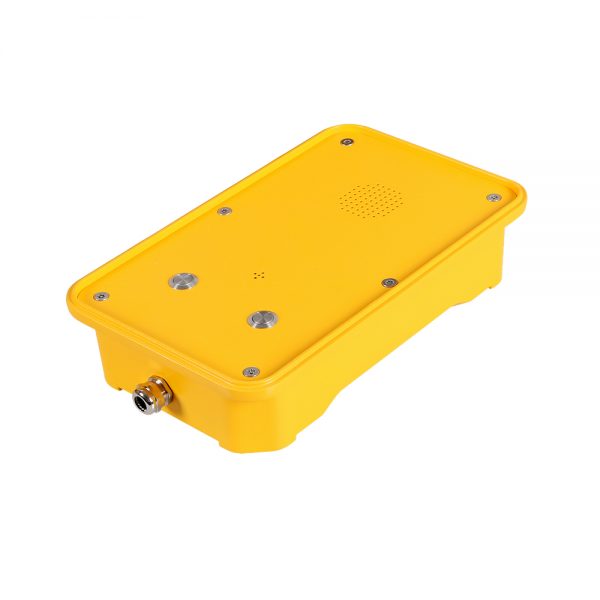

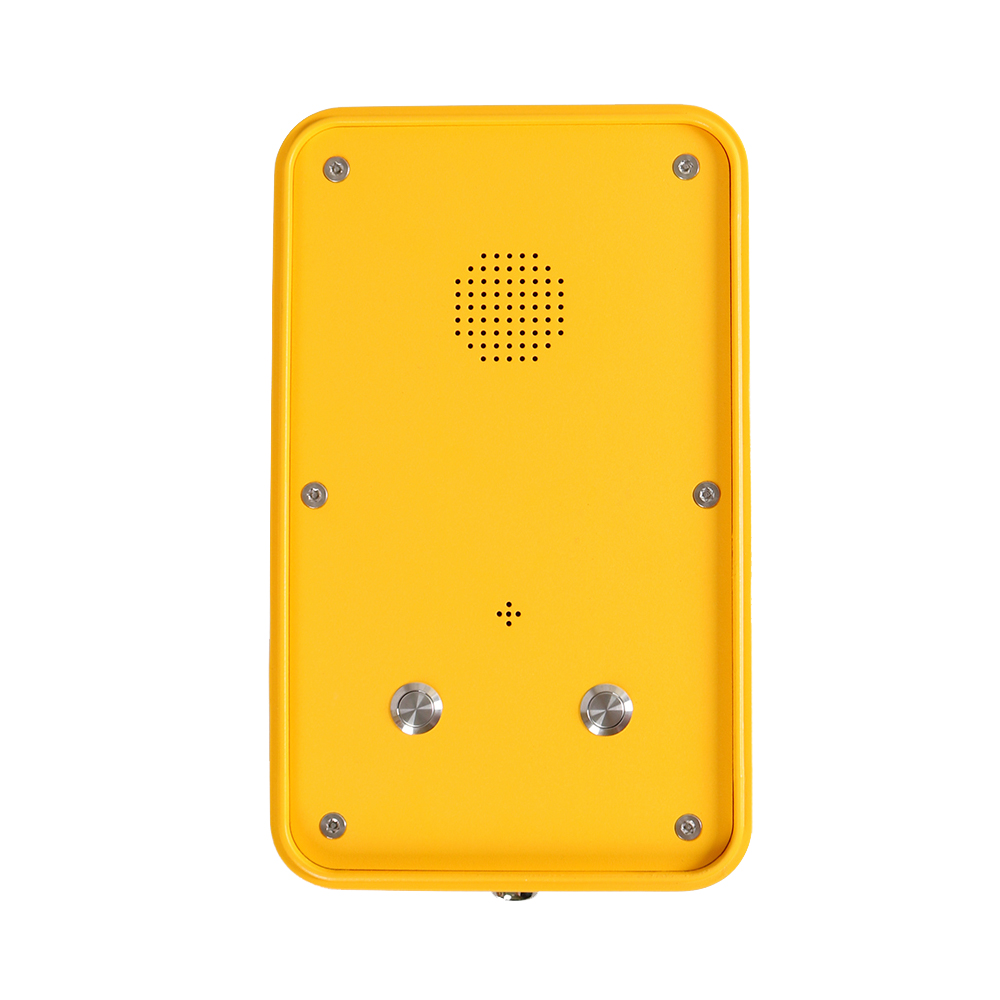

JR104-2B Help Point is a tough, weather resistant units, built to withstand abuse and environment extremes. It is simple to install with fixings concealed from view giving increased security from vandalism. The help point level of vandal resistant with metal buttons and wall & flush mount design with no handset. As a Weather Resistant Telephone, it is fully contained within a corrosion resistant cast aluminum weatherproof case to providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MBTF. Main Features of Waterproof telephone
TECHNICAL SPECIFICATION
Analogue Version
Power
Supply |
From the analogue telephone network |
Supply
Voltage |
24 VDC to 65 VDC |
Supply
Current |
20 mA DC to 100 mA DC |
Ringer
Volume |
– 80dB(A) at a distance of 1 m |
Dialing
Method |
DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version
Power
Supply |
PoE or 12V DC |
Power
Consumption |
-Idle:1.5W |
SIP
Protocol |
SIP 2.0 (RFC3261) |
Support
Codec |
G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication
Type |
Full duplex |
Ambient conditions
Protection
Type |
IP 66-IP67 as per EN60529 |
Operating
Temperature |
-30°C to +65°C |
Storage
Temperature |
-40°C to +75°C |
PACKAGE
Unit
Size |
204 *334 *162(mm) |
Carton
Size |
200 *300 *440 (mm) |
Packaging
Materials |
Pearl cotton, carton |
Net
Weight |
7 KG |
Gross
Weight |
8 KG |

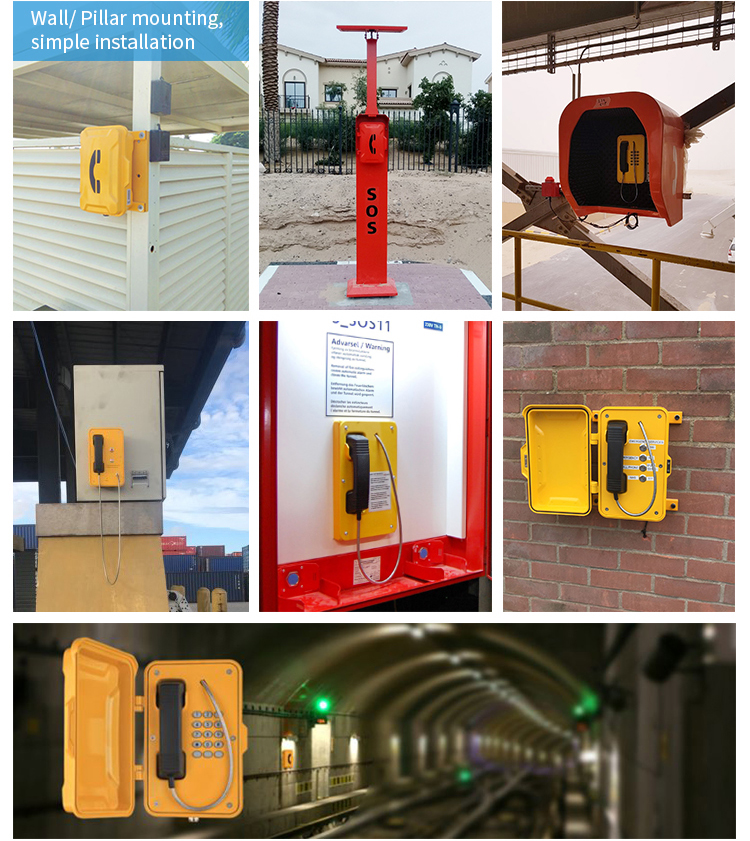

APPLICATION
★
Chemical Plant
★ Heavy industry
★
Oil & Gas station
★
Tunnel
★
Highway
★
Parking lots
★
Prisons
★
Railway & Metro platforms
★ Power plant
★
Mining plant
★
Police Stations
★
University
★
Stadiums
★
Outside building and related industrial application
