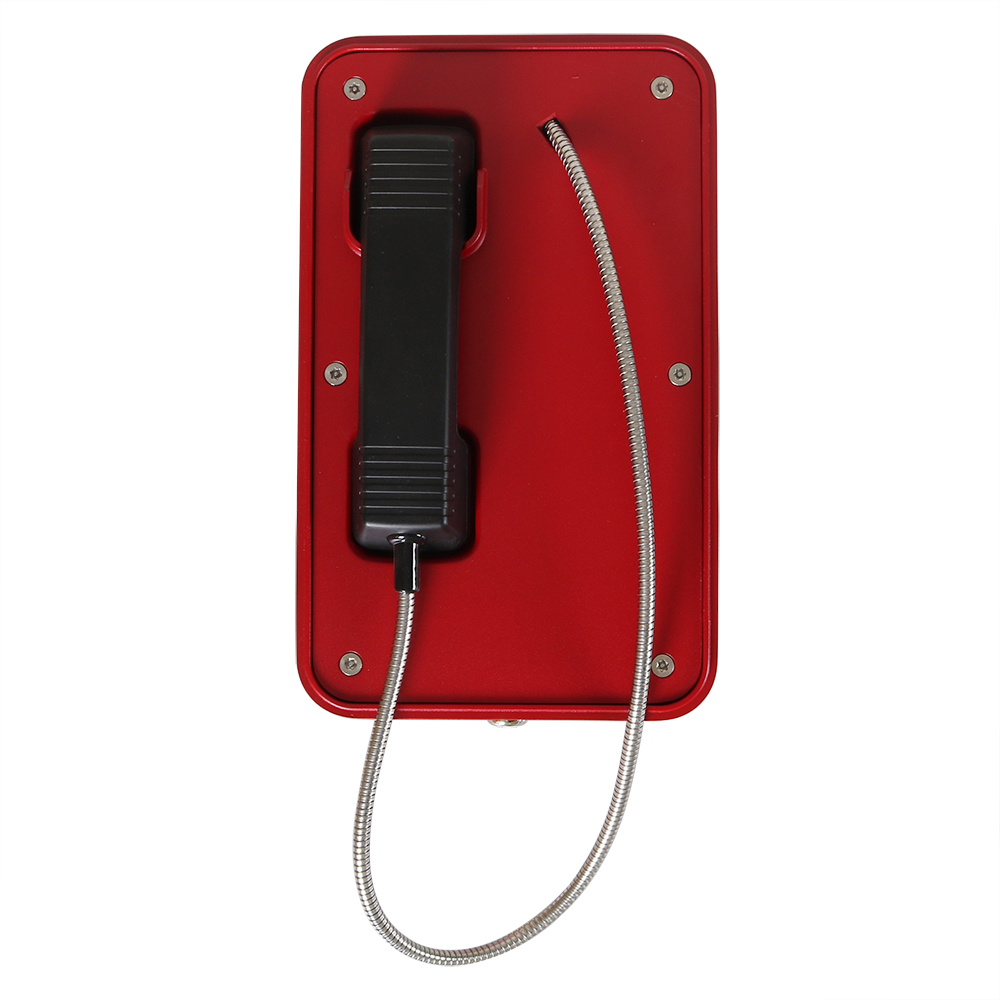

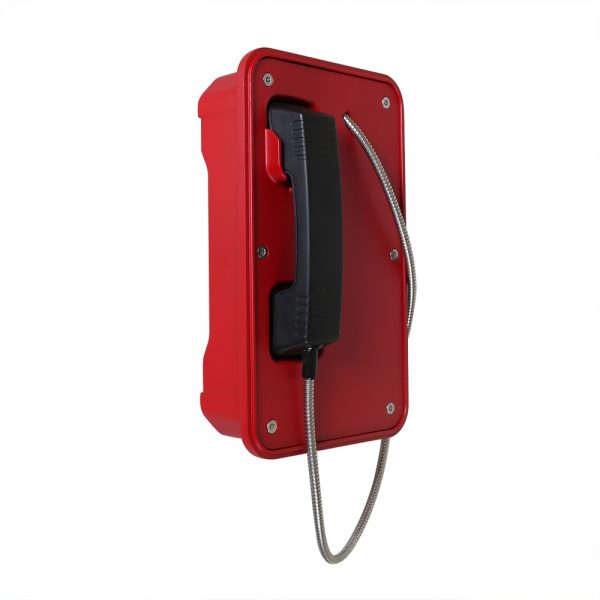

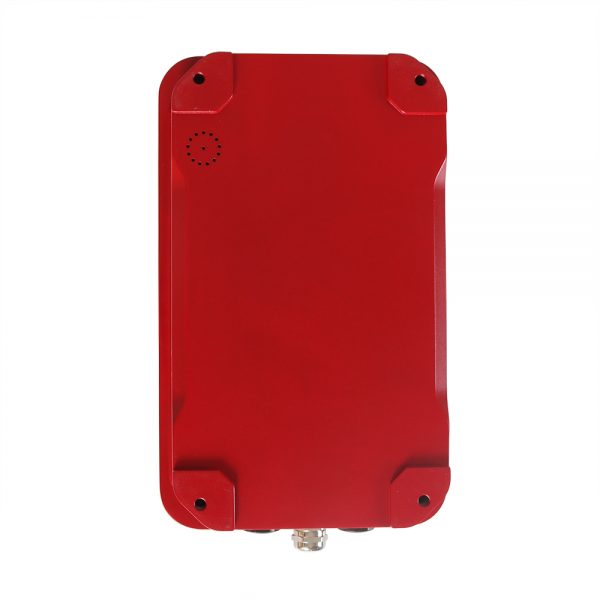

Outdoor Soundproof Auto-Dial Hands-Free Telephone

Casing Material

Die cast aluminum, epoxy powder coated

 Colors

Yellow, Red, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Keypad

No keypad

 Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

 Weather Resistance

IP66

 Ringing Tone

Shrill warble tone 80 dBA at 1 meter typical

 Hook switch

Electronic / magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

 Weight

Up to 5 kg depending on option

  Power Supply

From the analogue telephone network

  Supply Voltage

24 VDC to 65 VDC

  Supply Current

20 mA DC to 100 mA DC

  Ringer Volume

– 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

  Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.

 Power Supply

PoE or 12V DC

  Power Consumption

-Idle:1.5W
-Active:1.8W

  SIP Protocol

SIP 2.0 (RFC3261)

  Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

  Communication Type

Full duplex

  Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

 Protection Type

IP 66 as per EN60529

 Operating Temperature

-30°C to +70°C

 Storage Temperature

-40°C to +75°C

Unit Size

334 *204 *109 (mm)

  Carton Size

200 *300 *440 (mm)

  Packaging Materials

Pearl cotton, carton

  Net Weight

5 KG

  Gross Weight

6 KG
