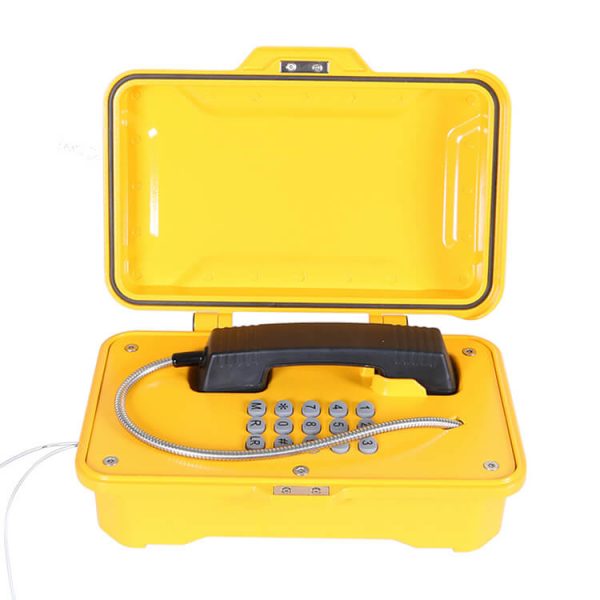

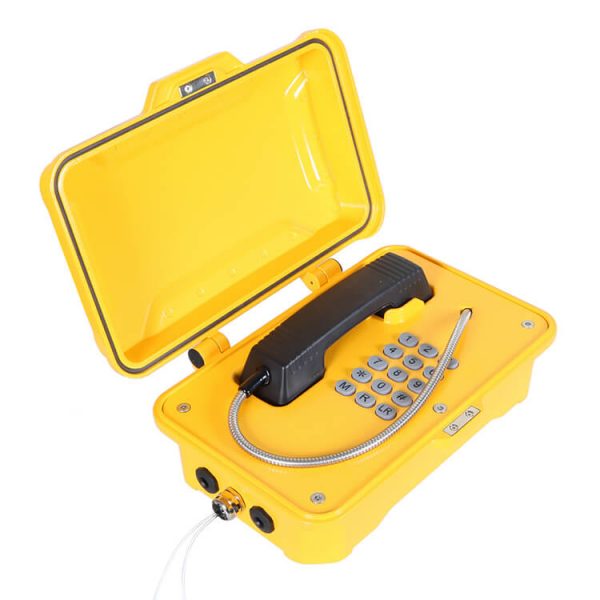

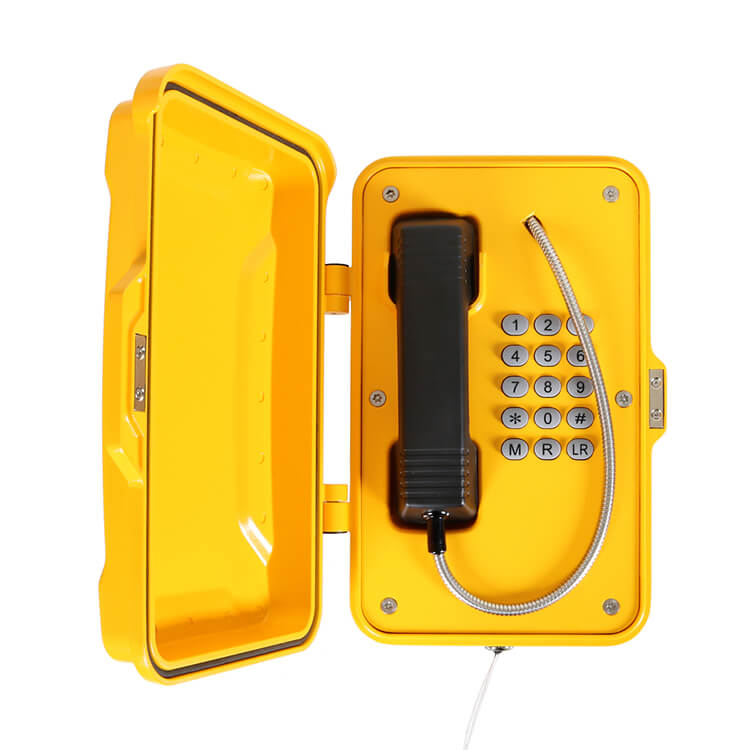

This Weatherproof Telephone is fully contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. The Quad-band 4G module covers wireless ranges across most of the globe. 4G connection offers wireless communications to provide a completely standalone telephone installation. The 4G phone greatly reduces installations costs by eliminating running wires. Main Features
TECHNICAL SPECIFICATION
Analogue Version
|
Power Supply |
From the analogue telephone network |
|
Supply
Voltage |
24 VDC to 65 VDC |
|
Supply
Current |
20 mA DC to 100 mA DC |
|
Ringer Volume |
– 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
|
Dialing
Method |
DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version
|
Power Supply |
PoE or 12V DC |
|
Power
Consumption |
-Idle:1.5W -Active:1.8W |
|
SIP
Protocol |
SIP 2.0 (RFC3261) |
|
Support
Codec |
G.711 A/U, G.722 8000/16000, G.723, G.729 |
|
Communication
Type |
Full duplex |
|
Ringer volume |
– 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker) |
Ambient conditions
|
Protection
type |
IP 66 as per EN60529 |
|
Operating
temperature |
-40°C to +70°C |
|
Storage
temperature |
-45°C to +85°C |
Package
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: Pearl cotton, Carton
Net weight: 6 KG
Gross weight: 7 KG
