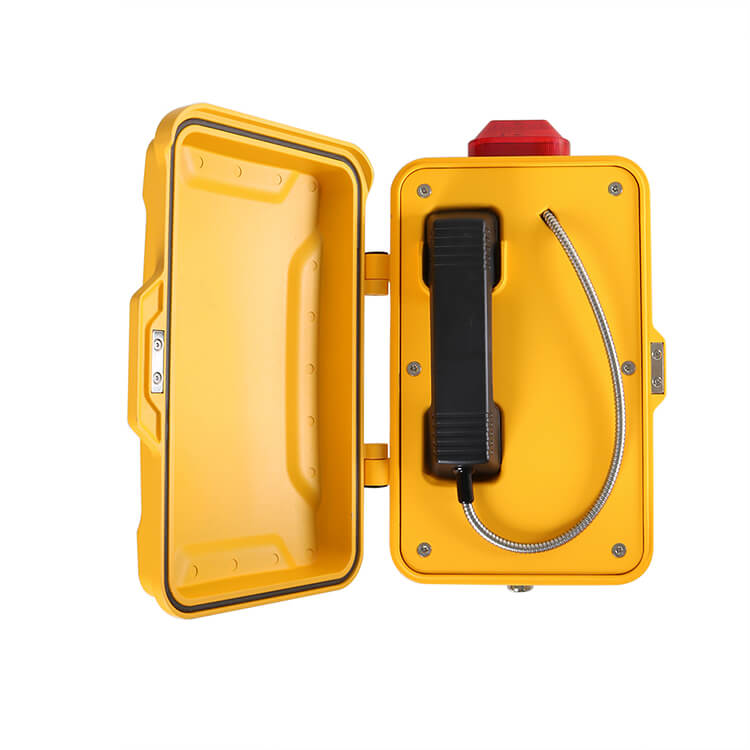

More Details About Speed Dial Industrial Telephones

TECHNICAL SPECIFICATION

Analogue Version

Parameters

Specifications

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

– 80dB(A) at a distance of 1 m

– 110dB(A) at a distance of 1 m (for external horn speaker)

Dialing Method

DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version

Parameters

Specifications

Power Supply

PoE or 12V DC

Power Consumption

-Idle:1.5W

-Active:1.8W

SIP Protocol

SIP 2.0 (RFC3261)

Support Code

G.711 A/U, G.722 8000/16000, G.723, G.729

Communication Type

Full duplex

Ringer volume

– 90~95dB(A) at a distance of 1 m

– 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient Conditions

Parameters

Specifications

Protection type

IP 66 as per EN60529

Operating temperature

-40°C to +70°C

Storage temperature

-40°C to +70°C



Packing Details

Unit size: 339*246*126 (mm)

Carton size: 200*300*440 (mm)

Packaging materials: Pearl cotton, Carton

Net weight: 6 KG

Gross weight: 7 KG
