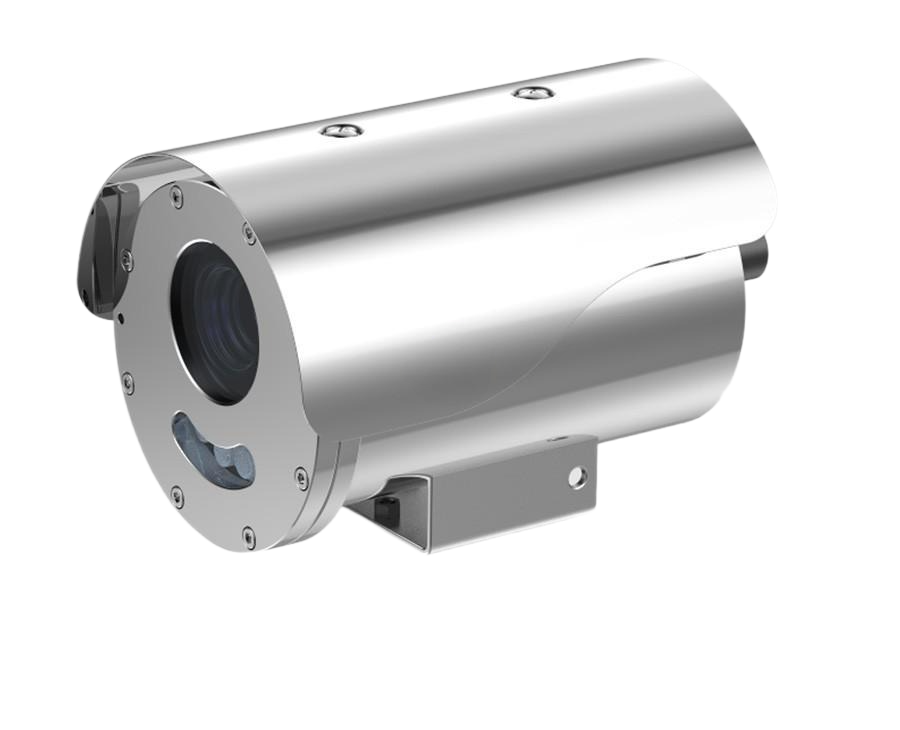

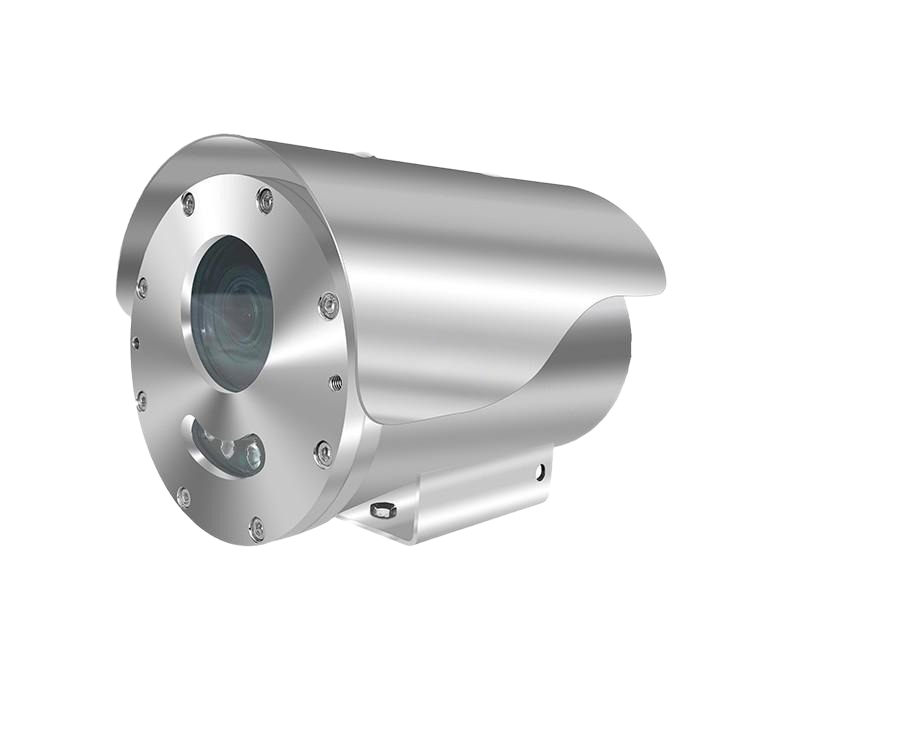

AJSCZ109-2MP-HD IR Vari Focal Lens Explosion Proof Corrosion Proof Camera

Parameters

Specifications

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.0005Lux @(F1.6, AGC ON)

Resolution and Frame Rate

mainstream: 50Hz: 25fps (2560×1440, 1920×1080, 1280×960, 1280×720); 60Hz: 30fps
(2560×1440, 1920×1080, 1280×960, 1280×720);
sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480,640×480, 352×240)

Video Compression

H.264, H.265

Optional Audio Compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM

White Balance

manual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp

Gain Control

auto, manual

SNR

> 52dB

3D DNR

yes

BLC

yes

Regional Focus

yes

Shutter

1/1s to 1/30,000s

Day & Night

Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input

Digital Zoom

12×

Focus

auto, semi-auto, manual

Regional Exposure

yes

Video Bit Rate

32Kbps to 16Mbps

Heartbeat

yes

Exposure Mode

auto, iris priority, shutter priority, manual

Day/Night Switch

IR Cut Filter

Parameters

Specifications

Focal Length

2.8 mm to 12 mm

Zoom Speed

approx. 1.7 s (optical, wide-tele)

Horizontal FOV

107.4° to 39.8° (wide-tele)

Aperture

F1.6 to F2.7

Parameters

Specifications

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour

API

open-ended, support ONVIF and ISAPI, support HIKVISION SDK and third-party management platform

Web Browser

IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Simultaneous Live View

up to 20 channels

User

up to 32 users; 3 levels: administrator, operator, and user

Security Measures

user authentication (ID and PW); host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control

Parameters

Specifications

Certification

ATEX, IECEx certified

Explosion proof

certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof marking

Ⅱ 2 G Ex db ⅡC T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db

IECEx Explosion proof marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Parameters

Specifications

Power Interface

AC100-240V, AC24V, PoE, DC12V (choose one option)

Communication Interface

10 M/100 M Ethernet interface

Optional Audio I/O

1-ch audio input and 1-ch audio output

Optional Alarm I/O

1-ch alarm input and 1-ch alarm output

RS-485

yes

On-board Storage

yes (no on-board MicroSD card socket)

Parameters

Specifications

Ambient Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Protection

IP66 IP68 (2m 2h) IP69

Parameters

Specifications

Power Consumption

static: 2.5W; dynamic: 4.5W

Dimensions

270.50 mm X 166.00 mm X 160.00 mm (L x W x H)

Gross Weight

6.5 kg (14.33 lb)

Net Weight

5.6 kg (12.34 lb)

Cable thread hole

1set M25*1.5 (standard), G3/4 or M27*1.25

Casing

Stainless steel 304/316L

Bracket

ZAZ100B Wall bracket with adaptor
