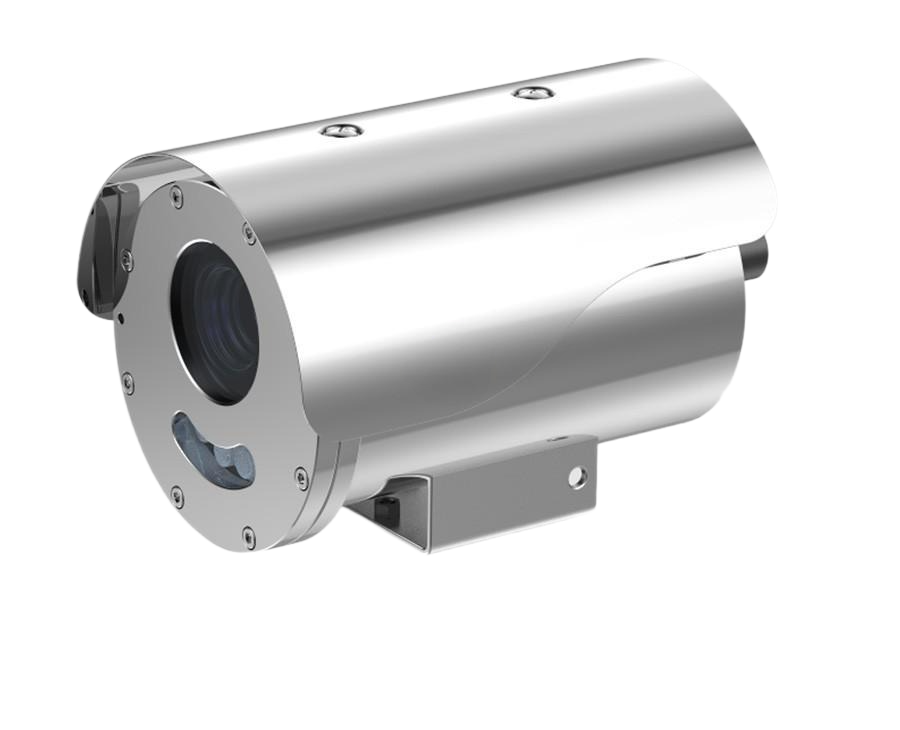

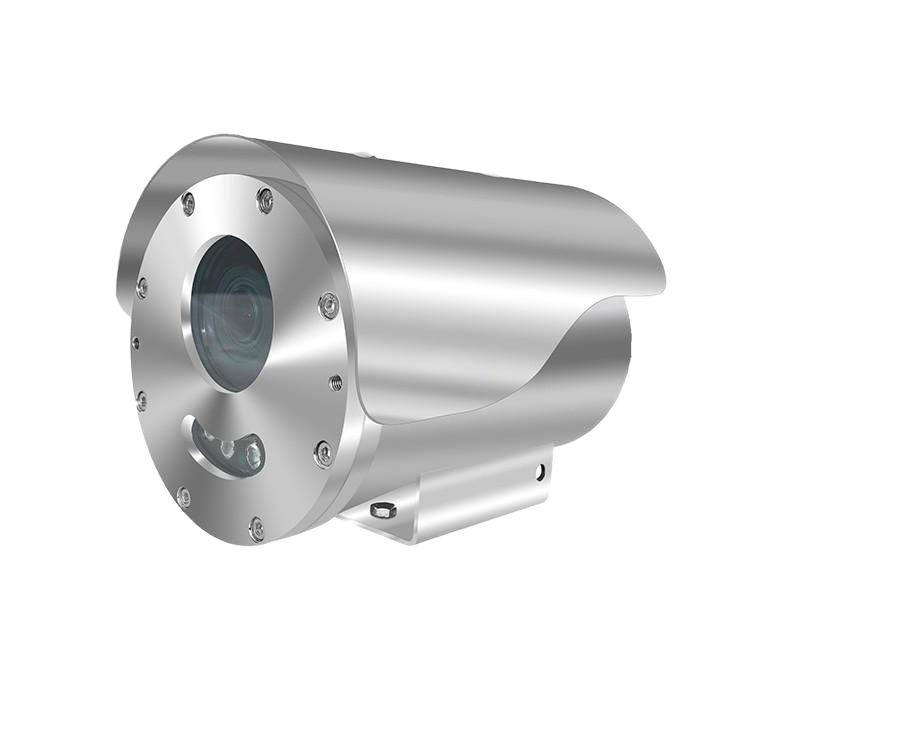

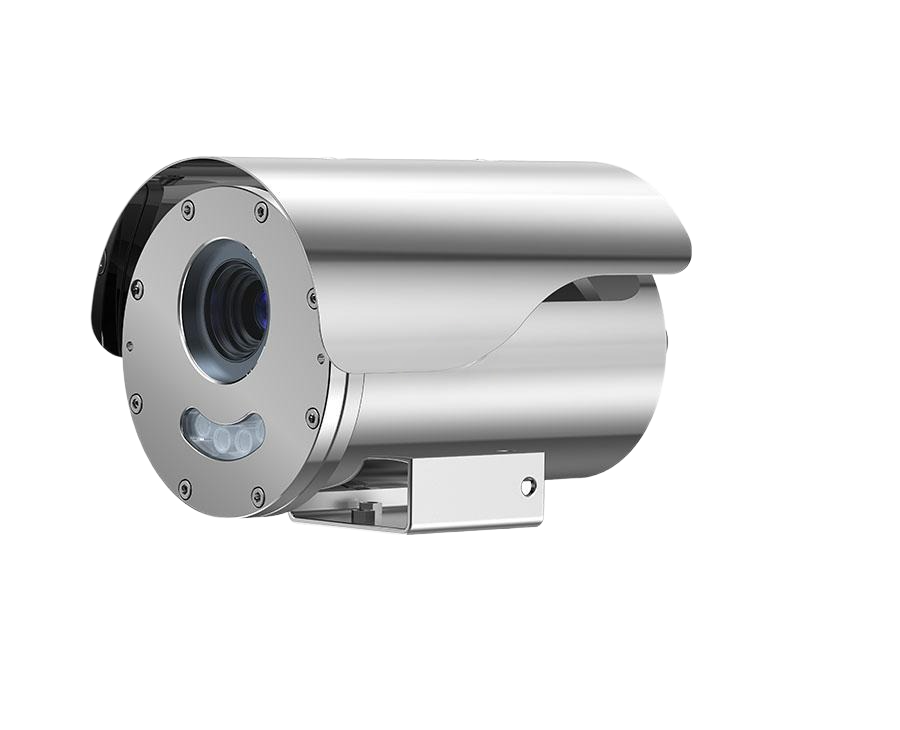

AJSCZ109-2MP-IR Vari-focal Lens Explosion Proof Corrosion Proof Camera

Parameters

Specifications

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.5 (Color, 30 IRE) 0.0002 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 60 m (196.85 ft) (IR LED)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

4 (IR LED)

Parameters

Specifications

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

H: 108°–30°;
V: 56°–17°;
D: 131°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44.1 m
(144.69 ft)

17.7 m
(58.07 ft)

8.8 m
(28.87 ft)

4.4 m
(14.44 ft)

T

144.8 m
(475.07 ft)

57.9 m
(189.96 ft)

29.0 m
(96.14 ft)

14.5 m
(47.57 ft)

Parameters

Specifications

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Manual;Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Parameters

Specifications

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Parameters

Specifications

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only- ZAS supports); SMD; security exception

Parameters

Specifications

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE
Chrome Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Parameters

Specifications

Certifications

ATEX, IECEx certified

Explosion proof

certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof

marking

Ⅱ 2 G Ex db ⅡC T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db

IECEx Explosion proof

marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Parameters

Specifications

Audio Input

1 channel (RCA port) (Only- ZAS supports)

Audio Output

1 channel (RCA port) (Only- ZAS supports)

Alarm Input

1 channel in: 5mA 3V–5V DC (Only- ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only- ZAS supports)

Audio Input

1 channel (RCA port) (Only- ZAS supports)

Parameters

Specifications

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

-ZS:
Basic: 2W (12 VDC); 2.6 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 8.5 W (12 VDC); 9.8 W (PoE)
-ZAS:
Basic: 2W (12 VDC); 2.6 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 8.6 W (12 VDC); 9.9 W (PoE)

Parameters

Specifications

Operating Temperature

-40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40°F to +140°F)

Parameters

Specifications

Casing Material

Stainless steel 304/316L

Product Dimensions

(L × W × H)

270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)

Net Weight

5.6 kg (12.34 lb)

Gross Weight

6.5 kg (14.33 lb)

Pigtail Cable

2meters standard combined cable (power+UTP)

Ingress Protection

IP66, IP68 (2m 2h), IP69

Bracket

ZAZ100B Wall bracket with adaptor

Parameters

Specifications

Material

Stainless steel 304 or 316L

Max Loading

20kg

Gross Weight

2.5kg
