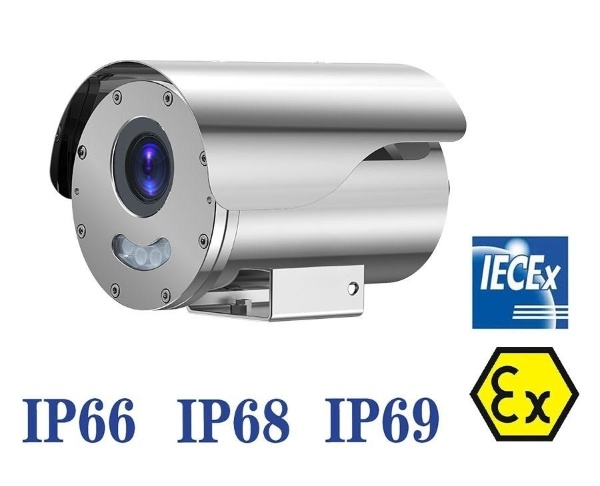

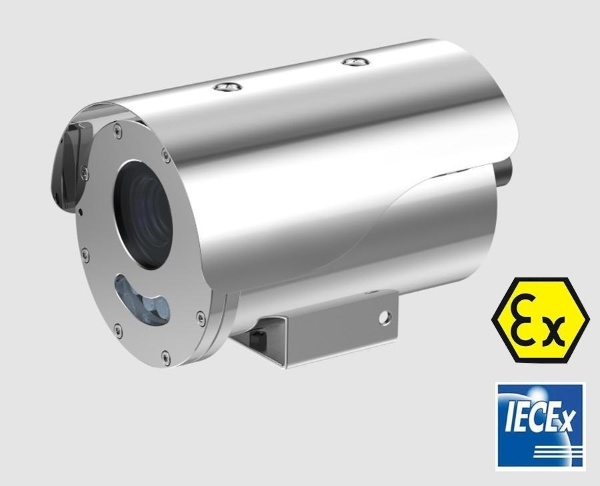

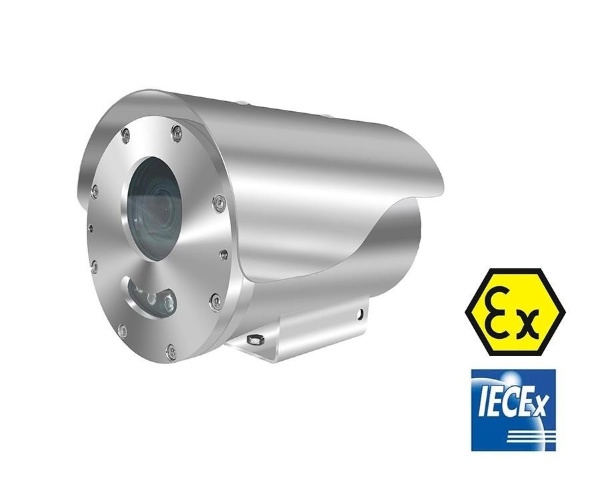

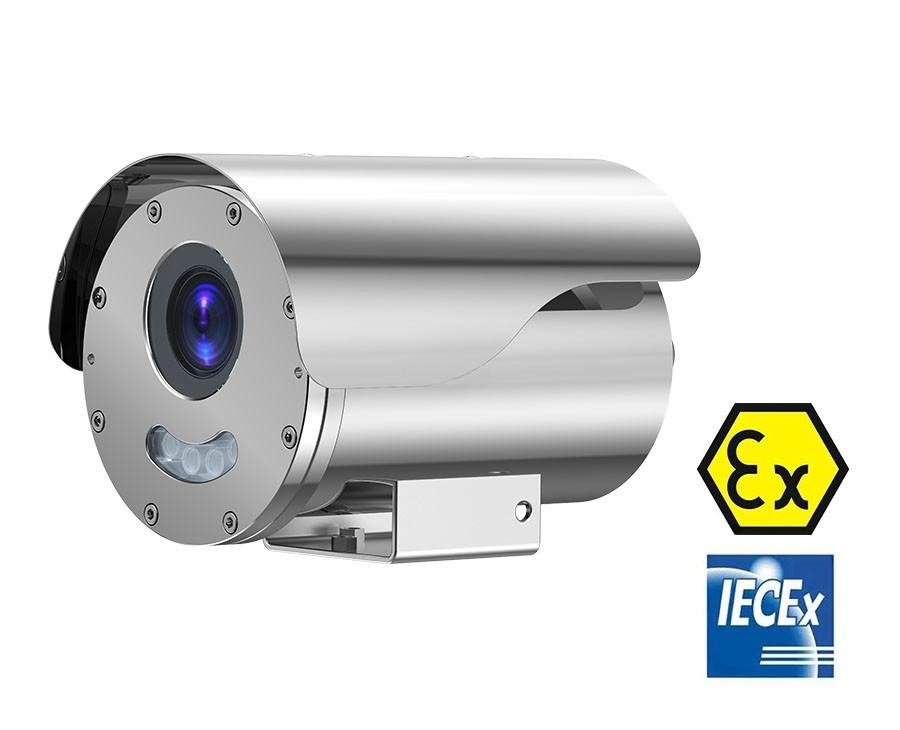

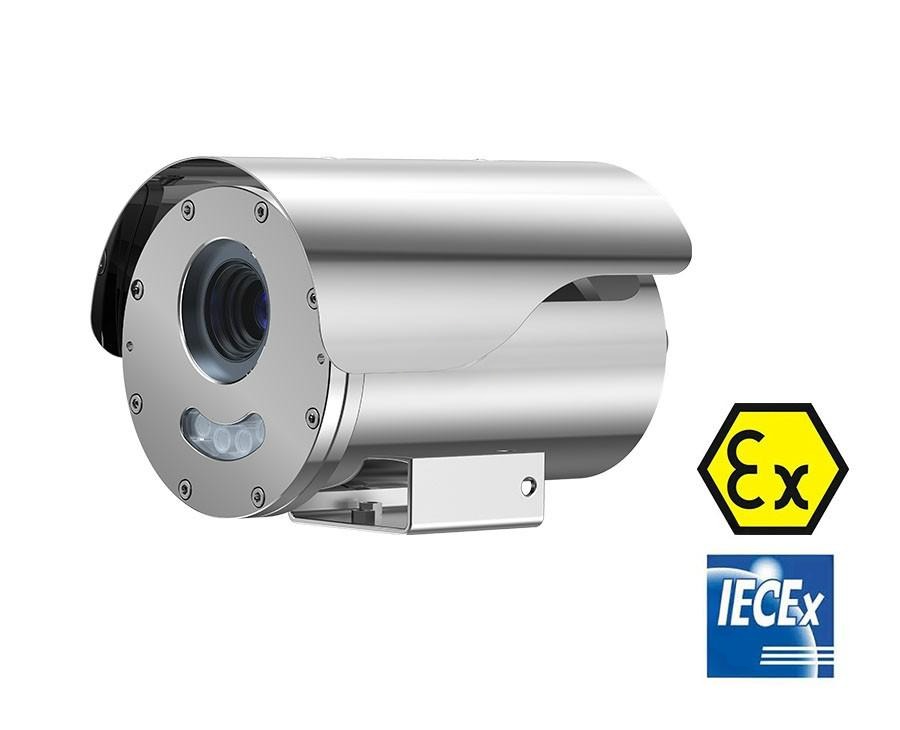

AJSCZ109-4MP-AI-IR Vari focal lens Explosion Proof Corrosion Proof Camera

Parameters

Specifications

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

color: 0.05Lux @ (F1.6, AGC ON); B/W: 0.01Lux @(F1.6, AGC ON)

Resolution and Frame Rate

main stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps (1920×1080, 1280×960, 1280×720); sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480,640×480, 352×240)

Video Compression

H.264, H.265

Optional Audio Compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM

White Balance

manual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp

Gain Control

auto, manual

SNR

> 52dB

3D DNR

yes

BLC

yes

Regional Focus

yes

Shutter

1/1 s to 1/30,000 s

Day & Night

Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input

Digital Zoom

12×

Focus

auto, semi-auto, manual

Regional Exposure

yes

Video Bit Rate

32 Kbps to 16 Mbps

Heartbeat

yes

Day/Night Switch

IR Cut Filter

Exposure Mode

auto, iris priority, shutter priority, manual

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 104°–27°
Vertical: 55° –15°
Diagonal: 124° –31°

Iris Type

Fixed aperture

Close Focus Distance

0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

64.0 m
(210.0ft)

25.6 m
(84.0 ft)

12.8 m
(42.0 ft)

6.4 m
(21.0 ft)

T

222.0 m
(728.3 ft)

88.8m
(291.3 ft)

44.4 m
(145.7 ft)

22.2 m
(72.8 ft)

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704
× 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352
× 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio Compression

G.711a; G.711Mu; G726; AAC

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adahptation

Yes

User/Host

20 (Total bandwidth: 64 M)

Edge Storage

FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8, IE9, IE11
Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certifications

ATEX, IECEx certified

Explosion proof

certification

DNV 22 ATEX 51565X

IECEx DNV 22.0097X

ATEX Explosion proof

marking

II2 G Ex db IIC T6 Gb

II2 D Ex tb IIIC T80℃ Db

IECExExplosion proof

marking

Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

Audio Input

1-channel (RCA port)

Audio Output

1-channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<9.8W

Operating Conditions

-40°C to +60°C (-40°F to +140°F), Humidity: ≤95% RH (non-condensing)

Strorage Conditions

-40°C to +60°C (-40°F to +140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection

IP66, IP68 (2m 2h), IP69

Casing

Stainless Steel 304/316L

Dimensions (L × W × H)

270.50mm × 166.00mm × 160.00mm (10.6” × 6.5” × 6.3”)

Pigtail Cable

2meters standard combined cable (power+UTP)

Net Weight

5.6 kg (12.34 lb)

Gross Weight

6.5 kg (14.33 lb)

Bracket

ZAZ100B Wall bracket with adaptor
