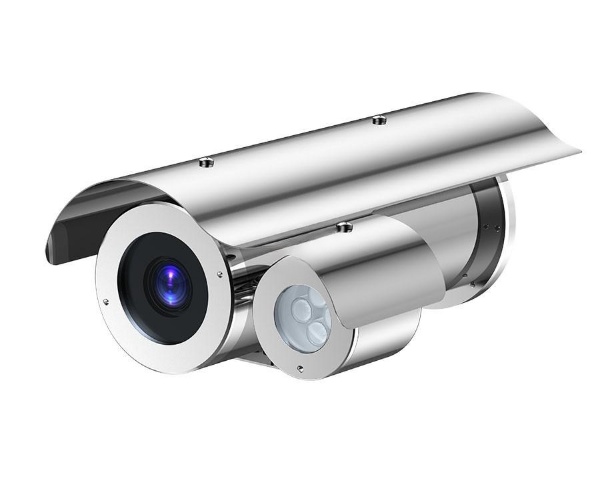

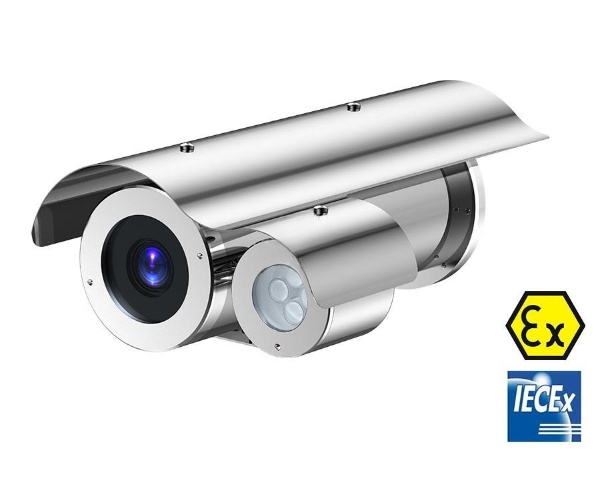

AJSCZ1035B (F) 8MP Explosion Proof Fixed Camera with IR

Sensor

1/2.8", 8.0megapixel, progressive scan, CMOS

Minimum Illumination

Color: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>56 dB

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Iris

Fixed

Field of View (H)

107.4° ~ 29.2°

Field of View (V)

54.2° ~ 16.3°

Field of View (D)

111.0° ~ 33.1°

DORI Distance

Lens

(mm)

Detect

(m)

Observe (m)

Recognize (m)

Identify

(m)

2.8

86.9

34.8

17.4

8.7

12

372.4

149.0

74.5

37.2

IR Range

100m night vision(single light)

200m night vision (double lights)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream:

8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps;

4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps;
Sub Stream:

1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps;

D1 (720*576), Max 30fps; 640*360, Max 30fps;

2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
Third Stream:

D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

RoI

Up to 8 areas

Video Stream

Triple streams

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°

Anti-clockwise

Dewarping

Support

HLC

Support

BLC

Support

Defog

Digital Defog

Smart intrusion

prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Basic Detection

Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection,

RTSP authentication, user authentication

Audio Compression

G.711

Audio Bitrate

64 Kbps

Two-way audio

Support

Suppression

Support

Sampling Rate

8KHZ

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,

RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP,

HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation EZView EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

RS485

N/A

Built-in Mic

N/A

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M Base-TX Ethernet

Video Output

N/A

Trail cable

2m integrated cable

Option 1: power+CAT

Option 2: power+RS485+coxial cable

Option 3: power+CAT+audio+alarm+RS485+coaxial cable

Option 4: power+CAT+audio+alarm+fiber cable

Certifications

ATEX, IECEx certified

Explosion proof

certification

ATEX: Presafe 20 ATEX 45644X,

IECEx: IECEx PRE20.0042X

ATEX Explosion proof marking

With optical fibre Models:

CZ1035, CZ1035A, CZ1035B, CZ1035C，CZ1035D

II 2G Ex db op is op pr II C T6 Gb,

II 2D Ex tb op is op pr III C T80 ºC Db

Without optical fibre models:

CZ1035, CZ1035A, CZ1035B, CZ1035C，CZ1035D

II 2G Ex db op is IIC T6 Gb

II 2D Ex tb op is IIIC T80 ºC Db

IECEx Explosion proof marking

Without optical fibre:

Ex db op is IIC T6 Gb

Ex tb op is IIIC T80°C Db

With optical fibre:

Ex db op is op pr IIC T6 Gb

Ex tb op is op pr IIIC T80°C Db

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 10.5W

Cable thread hole

2pcs M25*1.5(standard) or M27*1.25

Cable

Integrated cable

Dimensions

(L × W × H)

CZ1035(F), CZ1035A: 523*406*221mm,

CZ1035B(F): 523*297*196mm,

CZ1035C(F): 484*172*286mm,

CZ1035D(F): 523*297*221mm

Net Weight

CZ1035:17.5Kg; CZ1035A(F):16.5Kg; CZ1035B(F):14.5Kg

CZ1035C(F):13Kg; CZ1035D(F):15.5Kg; CZ1035F:17Kg

Material

Stainless steel 304/316L

Ambient Environment

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment

-30°C ~ 60°C (-22°F ~ 140°F),

Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Ingress Protection

IP68 (2m 2h)

Reset Button

N/A

Sun-shield

option

Wiper

option

Mounted Way

wall, pole, corner
