AJSCZ637-□ ATEX, IECEx certified DARK FIGHTER TYPE 2MP 33X AI Network Explosion Proof PTZ Speed Dome Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

1920 (H) x 1080 (V)

Effective Pixels

2MP

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1–1/30000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001Lux@F1.5 B/W: 0.0001Lux@F1.5

IR Distance

NA

IR On/Off Control

NA

IR LEDs Number

NA

Focal Length

5.8 mm–191.4 mm

Max. Aperture

F1.5–F4.8

Field of View

H: 60.1°–3.2°; V: 35.3°–1.8°; D: 67.9°–3.7°

Optical Zoom

33x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1655 m
(5429.80 ft)

622 m
(2040.68 ft)

331 m
(1085.96 ft)

165 m
(541.34 ft)

Pan/Tilt Range

Pan: 0°–360°
Tilt: -20°–+90°

Manual Control Speed

Pan: 0.1°/s–300°/s Tilt: 0.1°/s–150°/s

Preset Speed

Pan: 600°/s Tilt: 500°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern Number

5

Scanning Number

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

Video Metadata

Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD Plus

Support

Auto Tracking

Support

Face Detection

Support

Event Trigger

Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly.

General IVS

Object Abandoned/Missing

Compression

H.265/H.265+/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280×720); D1 (704 × 576/704×480); CIF (352 × 288/352× 240)

Frame Rate

Main stream: 1080P/1.3M/720P (1–50/60fps)

Sub stream 1: D1/CIF (1–25/30fps)

Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.265/H.264: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization

Support

Defog

Support

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Compression

G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2

Certifications

ATEX, IECEx, CEcertified

ATEX

DNV 22 ATEX 82491X

ATEX Standards

EN IEC60079-0:2018, EN60079-1:2014,

EN60079-28:2015, EN60079-31:2014

IECEx

IECEx DNV 22.0122X

IECEx Standards

IEC60079-0:2017, IEC60079-1:2014-06,

IEC60079-28:2015, IEC60079-31:2022-01

CE

EMC, LVD, FCC

CE Standards

LVD:

EN 62368-1: 2014+A11: 2017

FCC:

47 CFR FCC Part15, Subpart B, Class B ANSI C63.4:2014

EMC:

EN 55032:2015+A11: 2020+A1:2020, Class B

ENIEC 61000-3-2: 2019+A1: 2021

EN 61000-3-3: 2013+A1: 2019+A2: 2021

EN 55024: 2010+A1: 2015

EN 55035: 2017+A11: 2020

EN 50130-4: 2011+A1: 2014

ATEX Explosion proof

marking

Without optical fibre:

II 2 G Ex db IIC T6 Gb

II2 D Ex tb IIIC T80°C Db

With optical fibre:

II 2 GEx db op pr IIC T6 Gb

II 2 D Ex tb op pr IIIC T80°C Db

IECEx Explosion proof

marking

Without optical fibre:

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db

With optical fibre:

Ex db op pr IIC T6 Gb

Ex tb op pr IIIC T80°C Db

OptionalPort

Audio In

1 (LINE IN; bare wire)

Audio Out

1 (LINE OUT; bare wire)

Alarm Port

7/2

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Interoperability

ONVIF Profile S&G; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 48M)

Edge Storage

FTP; Micro SD card (256G); P2P

Browser

IE7 and newer versions Chrome 42 and older versions Firefox 52 and older versions Safari

Management Software

Smart Player; Smart PSS; DSS; Easy4ip

Smart Phone

IOS/Android

Power Supply

AC24V/3A±25%

PoE+ (802.3at)

Power Consumption

20W
34W (heater on)

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%RH

Ingress Protection

IP66, IP68 (2m, 2h), IP69

Casing

Stainless steel 304 or 316L

Cable

Integrated cable

Cable thread hole

1pcs M27×1.25 or M25×1.5

Dimensions

282.5*282.5*408.1mm

Weight

20kg

Mounted

Wall, ceilling

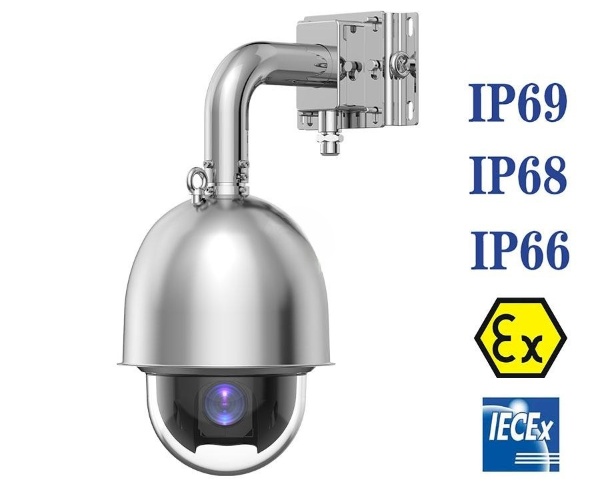

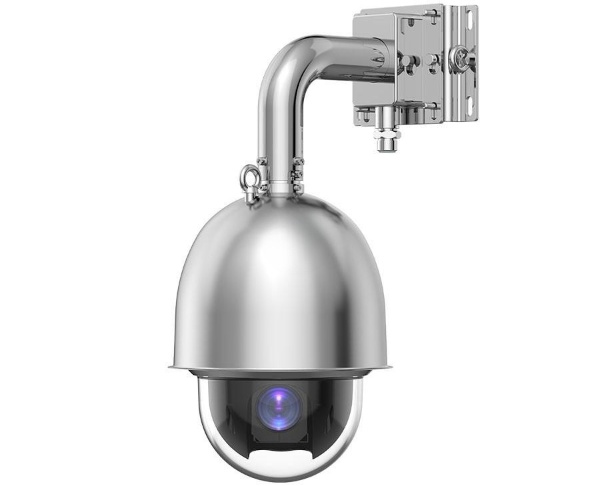

Wall bracket

ZAZ637-B

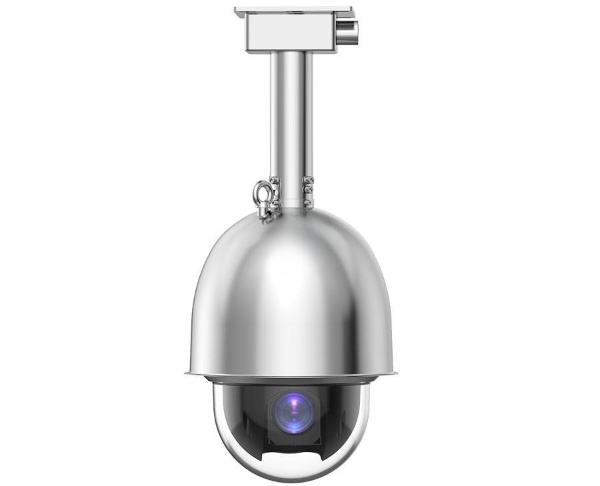

Ceiling mounted bracket

(optional)

ZAZ637-D

Sunshield

Supported

Safety hook

Supported
