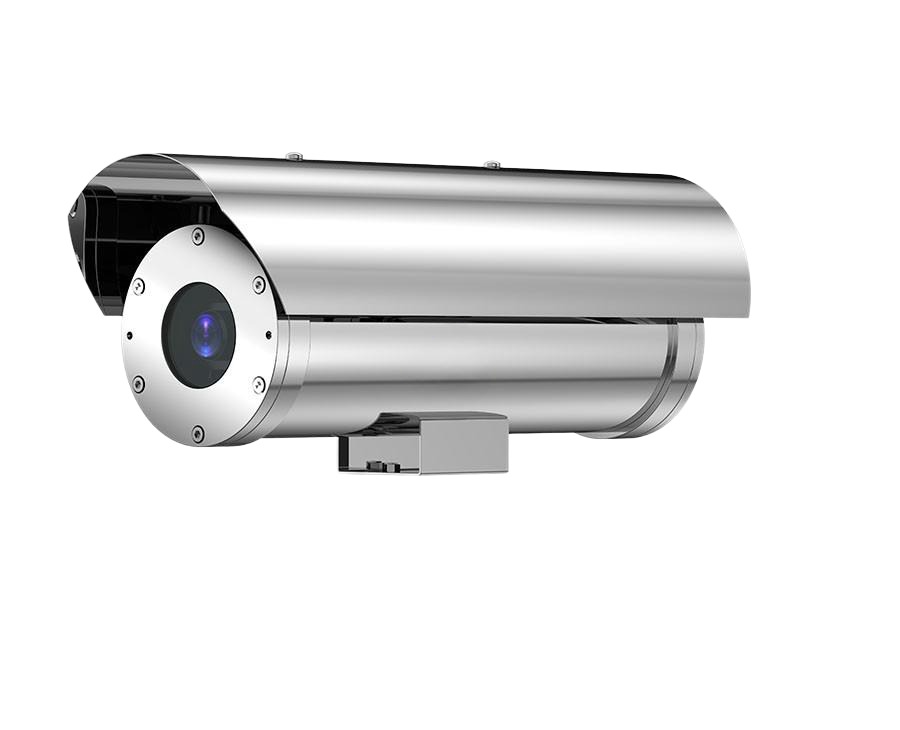

AJSCZ100-□□□ Explosion Proof Fixed Camera

Parameters

Specifications

Image Sensor

1/1.8" progressive scan CMOS

Min. Illumination

color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.0005Lux @(F1.6, AGC ON)

Resolution and Frame Rate

main stream: 50Hz: 25fps (2560×1440, 1920×1080, 1280×960, 1280×720); 60Hz: 30fps
(2560×1440, 1920×1080, 1280×960, 1280×720);
sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480,640×480, 352×240)

Video Compression

H.264, H.265

Optional Audio Compression

G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM

White Balance

manual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp

Gain Control

auto, manual

SNR

> 52dB

3D DNR

yes

BLC

yes

Regional Focus

yes

Shutter

1/1s to 1/30,000s

Day & Night

Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input

Digital Zoom

12×

Focus

auto, semi-auto, manual

Regional Exposure

yes

Video Bit Rate

32Kbps to 16Mbps

Heartbeat

yes

Exposure Mode

auto, iris priority, shutter priority, manual

Day/Night Switch

IR Cut Filter

Parameters

Specifications

Focal Length

2.8 mm to 12 mm, 4× optical

Zoom Speed

approx. 1.7 s (optical, wide-tele)

Horizontal FOV

107.4° to 39.8° (wide-tele)

Aperture

F1.6 to F2.7

Focal Length

2.8 mm to 12 mm, 4× optical

Parameters

Specifications

Image Enhancement

WDR, HLC

Smart Encoding

low bit rate, ROI

Exception Detection

illegal login

Power-off Memory

yes

Smart Detection

motion detection, video tampering detection, audio exception detection, intrusion detection, line crossing detection

Parameters

Specifications

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour

API

Open-ended API, ONVIF, PSIA, CGI, Hikvision SDK, Third-party management platform, ISUP, Hik-Connect

Web Browser

IE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Simultaneous Live View

Up to 20 channels

User

Up to 32 users. 3 levels: Administrator, Operator and User

Security Measures

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access

Parameters

Specifications

Voltage

AC100V～AC240V50/60Hzor AC24V 50/60Hz

DC24Vor PoE++ (48 V d.c.)

Power consumption

≤36W

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

multi-mode single fiber or single mode single fiber

Tx1310, Rx1550nm, FC connector

Optical Video signal

1-way video output

Optional network signal

RJ45

Optical Audio

1-way input, 1-way output

Optical Alarm

2-way alarm input, 1-way alarm output

Address code

0/1

On-board Storage

Micro SD/Micro SDHC/Micro SDXC card, up to 256 GB

Trail cable

Option 1：power+CAT

Option 2: power+RS485+coaxial cable

Option 3: power+CAT+audio+alarm+RS485+coaxial cable

Option 4: power+CAT+audio+alarm+fiber cable(FC connector)

Parameters

Specifications

Certificate

Presafe 17 ATEX 11326X, IECEx PRE18.0012X

ATEX Certificate Mark

Without optical fiber version:

Ⅱ2G Ex db ⅡC T6 Gb

Ⅱ2D Ex tbⅢC T80 ºC Db

With optical fibre version:

Ⅱ2G Ex db op pr ⅡC T6 Gb

Ⅱ2D Ex tbop prⅢC T80 ºC Db

ATEX Standard

EN IEC 60079-0:2018

EN 60079-1:2014

EN 60079-28:2015

EN 60079-31:2014

Ex Certificate Mark

Without optical fiber:

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db

With optical fibre:

Ex db op pr IIC T6 Gb

Ex tb op pr IIIC T80°C Db

Ex Standard

IEC 60079-0:2017

IEC 60079-1:2014-06

IEC 60079-28:2015

IEC 60079-31:2013

Parameters

Specifications

Housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2 m, 45 min)

IP66, IP68 (2 m, 2 h)

Cable thread hole

2pcs M25×1.5 (or M27*1.25)

Parameters

Specifications

Power Consumption

Static: 5 W, Dynamic: 7 W

Ambient temperature

-40°C to +60°C for products of types CZ100-□□with normal length

-40°C to +58°C for products of types CZ100-□□S with short enclosure/cylinder

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)

Parameters

Specifications

Model

CZ100-A/D(F)

CZ100-B/C(F)

Sun-shield

Yes

Yes

Wiper

Yes

No

Overall dimension

524*179*215mm

524*179*208mm

Net Weight

14kg

12.5kg
