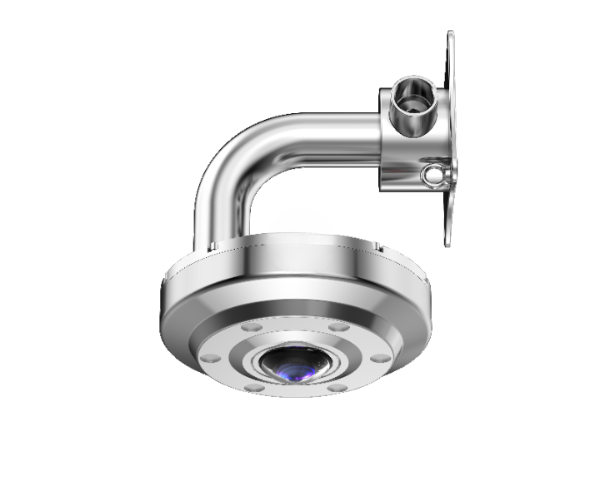

AJSCZ6417 ATEX 4MP 180° Panoramic Explosion Proof Fish-eye Dome Infrared Camera

Main Features:

  • 4MP High Resolution Sensor
  • 180° Panoramic View
  • ATEX & IECEx Certified
  • Infrared Night Vision
  • Explosion-Proof Stainless Steel Housing
  • IP68 Rated Protection
  • Fisheye Lens Distortion Correction
  • ONVIF Compatible
  • Ceiling or Wall Mounting Options
  • PoE Support



More Details About AJSCZ6417 ATEX 4MP 180° Panoramic Explosion Proof Fish-eye Dome Infrared Camera

Product Description

AJSCZ6417 Hazardous site Cameras Panoramic Explosion Proof Fish-eye Dome Infrared Camera is AJWASYS new developed ATEX, IECEx certified explosion proof fish-eye camera, which adopts ultra wide angle lens supporting 180° panoramic image.



ATEX, IECEx certified

AJSCZ6417 series is AJWASYS developed explosion proof fish-eye camera. AJSCZ6417 Explosion-proof fish-eye camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.



4MP Resolution, 180° Panoramic

AJSCZ6417 Explosion-proof fish-eye camera adopts ultra wide angle lens supporting 180° panoramic image. This explosion-proof fish-eye camera frame rate is 4MP (2560*1440)@25fps.



PoE Power Supply

AJSCZ6417 Explosion-proof fish-eye camera voltage input can be DC 12V±25% and PoE (IEEE 802.3af), which max power consumption is 11.7W.



Stainless Steel 316L

AJSCZ6417 Explosion-proof fish-eye camera is full made of stainless steel 316L, also including mounted bracket. This camera can apply for high corrosion area, such as off-landing, marine, ship, waste incineration and chemical factory.



IP66/IP68 Weather Proof

AJSCZ6417 Explosion-proof fish-eye camera ingress protection is IP66/IP68 (2m/2h) according to IEC 60529.



Embedded infrared light

AJSCZ6417 Explosion-proof fish-eye camera is embedded infrared lights around the camera module. Its infrared light is 360° fill-in type, which support night vision up to 10m(33ft) distance.



Technical Specifications

Camera

Image sensor

1/3", 4.0 megapixel, progressive scan, CMOS

Lens

1.6mm@F1.6

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

1.6

36

14.4

7.2

3.6

Angle of View

180°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR

Day / Night

IR-cut filter for day & night function

S/N Ratio

>52dB

IR Range

Up to 10m (33ft)

Defog

Digital Defog

WDR

120dB



Video

Compression

Ultra265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Fisheye Frame Rate

Main Stream : 4MP (2560*1440), Max 25fps;

Sub Stream: 1080P (1920*1080), Max 25fps;

Third Stream: D1(720*576), Max 25fps

BLC

Support

Video Bit Rate

128 Kbps~16 Mbps

ROI

Up to 8 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas



Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)



Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API



Live View Display

Mount Type

wall, and ceiling



Interface

Network

1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

Video Output

1 BNC, impedance 75Ω; amplitude 1V [p-p]



Certifications

Certifications

Ex d II CT6 Gb/ Ex tD A21 IP68 T80℃



General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 11.7W

Dimensions (Ø x H)

Φ180 x 239mm

Net Weight

5.2kg

Material

Stainless steel 304 or 316L,

Optional with corrosion proof painting

Working Environment

–20°c～+60°C, Humidity: ≤95% RH

Strorage Environment

-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH

Ingress Protection

IP68

Bracket

Optional wall mounted, ceiling mounted



Camera Drawing




AJSZANXG  Explosion Proof Cable Tube



Connector Material

Carbon Steel or Stainless steel 304 or 316L

Connector size

G3/4

Certificate Mark

Ex e IIC Gb

IP

IP68

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Length

1m, 1.5m, 2m
