Main Features:
Product Description
AJSCZ6354 series is a classic explosion-proof speed dome camera, which is integrated by explosion proof enclosure, speed dome module, sunshield. The explosion proof speed dome camera is applicable to one 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist, e.g. refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.
Technical Specifications
Camera
|
Image Sensor |
1/2.8" STARVIS™ CMOS |
|||
|
Pixel |
2MP |
|||
|
Max. Resolution |
1920 (H) x 1080 (V) |
|||
|
ROM |
4 GB |
|||
|
RAM |
1 GB |
|||
|
Electronic Shutter Speed |
1/1 s–1/30000 s |
|||
|
Scanning System |
Progressive |
|||
|
Min. Illumination |
Color: 0.005 Lux@F1.35 B/W: 0.0005 Lux@F1.35 |
|||
Lens
|
Focal Length |
4.9 mm–156 mm |
|||
|
Max. Aperture |
F1.35–F4.4 |
|||
|
Field of View |
H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6° |
|||
|
Optical Zoom |
32x |
|||
|
Focus Control |
Auto/Semi-Auto/Manual |
|||
|
Close Focus Distance |
1 m–1.5 m (3.28 ft–4.92 ft) |
|||
|
Iris Control |
Auto/Manual/Fixed |
|||
|
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|
2152 m (7060.37 ft) |
850 m (2788.71 ft) |
430 m (1410.76 ft) |
215 m (705.38 ft) |
|
PTZ
|
Pan/Tilt Range |
Pan: 0°–360° endless |
|||
|
Manual Control Speed |
Pan: 0.1°/s–350°/s Tilt: 0.1°/s–250°/s |
|||
|
Preset Speed |
Pan: 500°/s Tilt: 500°/s |
|||
|
Presets |
300 |
|||
|
Tour |
8 (up to 32 presets per tour) |
|||
|
Pattern |
5 |
|||
|
Scan |
5 |
|||
|
Power-off Memory |
Support |
|||
|
Idle Motion |
Preset/Tour/Pattern/Scanning |
|||
|
Protocol |
DH-SD |
|||
General Intelligence
|
Event Trigger |
Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
|||
|
IVS |
Object Abandoned/Missing |
|||
Artificial Intelligence
|
Smart Capture |
Support human, motor vehicle and non-motor vehicle image capture. |
|||
|
Perimeter Protection |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
|||
|
Face Detection |
Support |
|||
|
Auto Tracking |
Support |
|||
|
SMD PLUS |
Support |
|||
Video
|
Compression |
H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
|||
|
Streaming Capability |
3 streams |
|||
|
Resolution |
1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × |
|||
|
Frame Rate |
Main stream: 1080P/1.3M/720P (1–50/60 fps) Sub stream 1: D1/CIF (1–25/30 fps) |
|||
|
Bit Rate Control |
Variable/Constant |
|||
|
Bit Rate |
H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps |
|||
|
Day/Night |
Auto (ICR)/Color/B/W |
|||
|
BLC |
Support |
|||
|
WDR |
120 dB |
|||
|
HLC |
Support |
|||
|
White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ Natural light/Street lamp |
|||
|
Gain Control |
Auto/Manual |
|||
|
Noise Reduction |
2D/3D |
|||
|
Motion Detection |
Support |
|||
|
Region of Interest (RoI) |
Support |
|||
|
Image Stabilization |
Electronic |
|||
|
Defog |
Electronic |
|||
|
Digital Zoom |
16x |
|||
|
Flip |
180° |
|||
|
Privacy Masking |
Up to 24 areas, and up to 8 areas in the same view |
|||
|
S/N Ratio |
≥ 55 dB |
|||
Optional Audio
|
Compression |
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
|||
Network
|
Ethernet |
RJ-45 (10/100Base-T) |
|||
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
|||
|
Interoperability |
ONVIF Profile S&G&T; CGI |
|||
|
Streaming Method |
Unicast/Multicast |
|||
|
User/Host |
20 (total bandwidth 64M) |
|||
|
Storage |
FTP; Micro SD card (256G); NAS |
|||
|
Browser |
IE7 and later versions Firefox 52 and earlier versions |
|||
|
Management Software |
Smart PSS; DSS; DMSS; Easy4ip; IVSS |
|||
|
Mobile Phone |
IOS, Android |
|||
Certification
|
Certifications |
ATEX, IECEx certified |
|||
|
Explosion proof certification |
DNV 21 ATEX 38340X IECEx DNV 21.0048X |
|||
|
ATEX Explosion proof marking |
With optical fiber:
Without optical fiber:
|
|||
|
IECEx Explosion proof marking |
Without optical fibre: Ex db IIC T6 Gb Ex tb IIIC T80°C Db With optical fibre: Ex db op pr IIC T6 Gb Ex tb op pr IIIC T80°C Db |
|||
Optional Port
|
Audio Input |
1 |
|||
|
Audio Output |
1 (LINE OUT; bare wire) |
|||
|
Two-way Audio |
Support |
|||
|
Alarm I/O |
2/1 |
|||
Power
|
Power Supply |
DC24V/2.5A PoE+ (802.3at) |
|||
|
Power Consumption |
Basic:10W Max:16W |
|||
Environment
|
Operating Temperature |
–40°C to +60°C (–40°F to +140°F) |
|||
|
Operating Humidity |
≤ 95% |
|||
|
Air pressure |
80～110kPa |
|||
General
|
Dimensions |
245*245*302mm (without bracket) |
|||
|
Weight |
13.5kg (without bracket) |
|||
|
Cable |
Integrated cable |
|||
|
Cable thread hole |
1pcs M27×1.25 or M25×1.5 |
|||
|
Housing |
Stainless steel 304 or 316L |
|||
|
IP |
IP66, IP68 (2m/2h) |
|||
|
Sunshade |
Support |
|||
|
Wall bracket |
ZAZ637-B |
|||
|
Ceiling bracket |
ZAZ637-D |
|||
CZ6354-□□□ Explosion Proof Fixed Camera
Dimension (With Wall Bracket)
AJSZAZ637-B wall bracket
AJSZAZ637-D ceiling mounted bracket
Ceiling mount bracket dimension

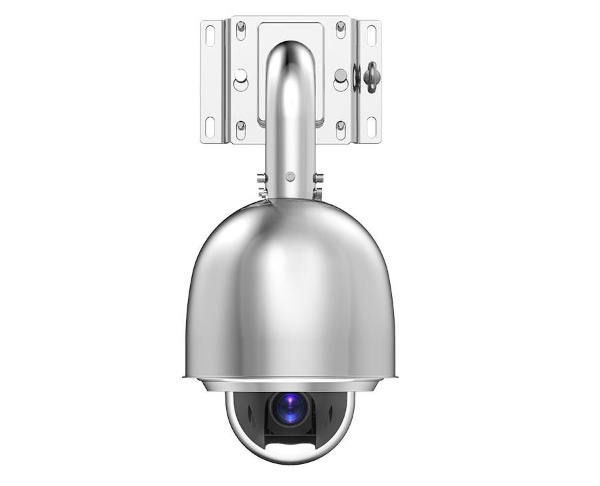

 (1)_20250413_114709.jpg "AJSCZ6354 ATEX, IECEx certified 2MP 32X Starlight Network Explosion Proof PTZ Speed Dome Camera")

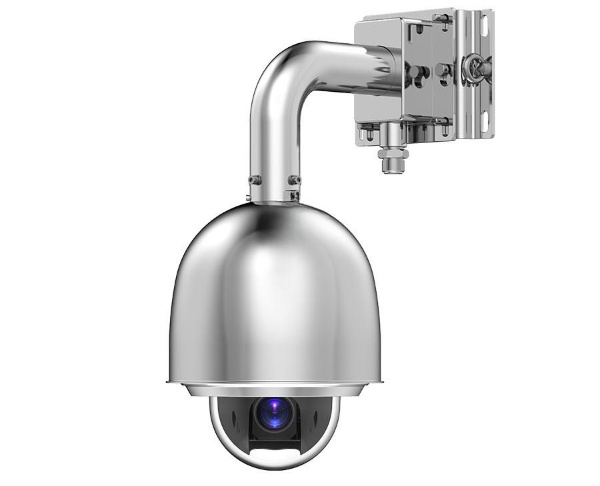

 (1)_20250413_114709.jpg "AJSCZ6354 ATEX, IECEx certified 2MP 32X Starlight Network Explosion Proof PTZ Speed Dome Camera")

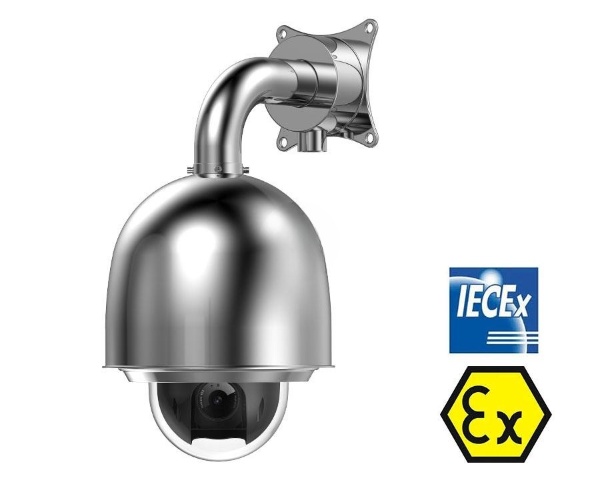

 (1)_20250413_114709.jpg "AJSCZ6354 ATEX, IECEx certified 2MP 32X Starlight Network Explosion Proof PTZ Speed Dome Camera")

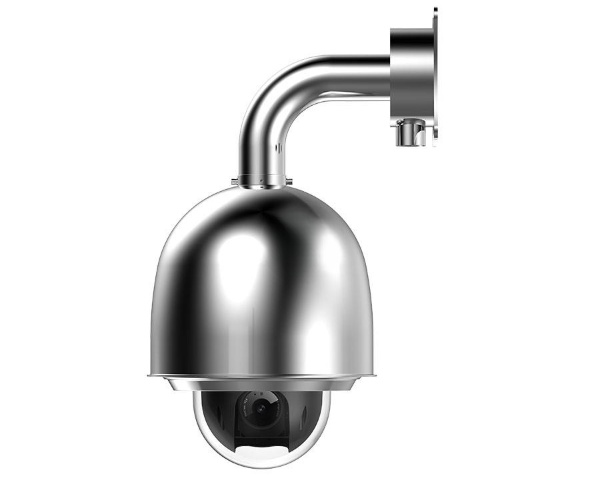

 (1)_20250413_114709.jpg "AJSCZ6354 ATEX, IECEx certified 2MP 32X Starlight Network Explosion Proof PTZ Speed Dome Camera")
