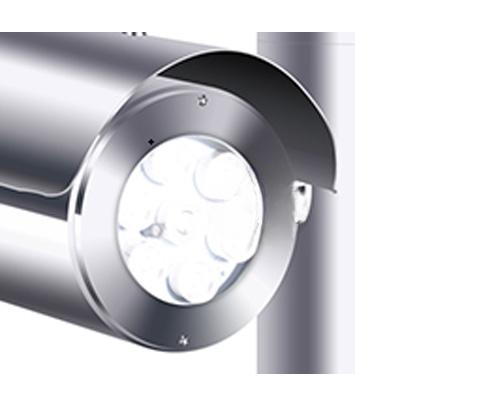

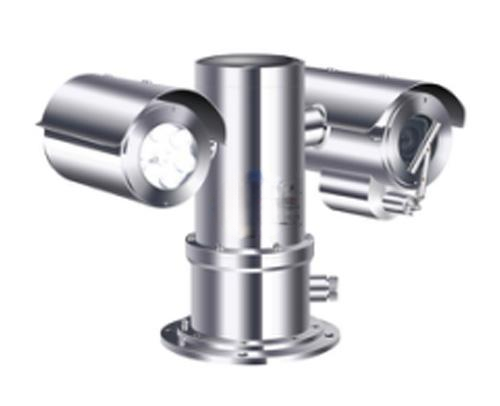

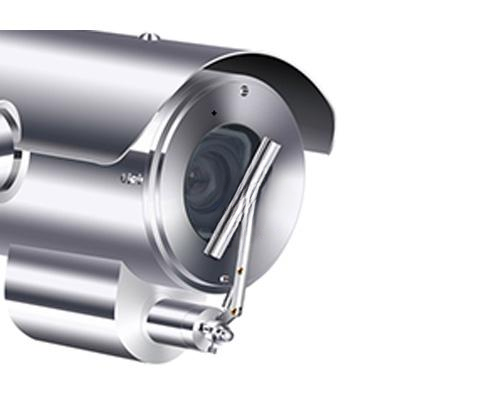

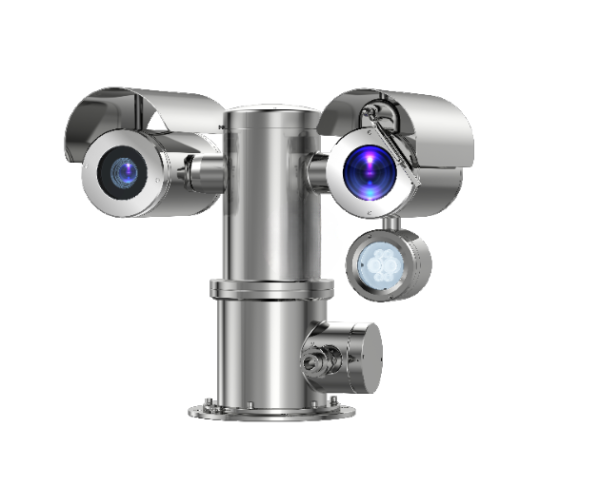

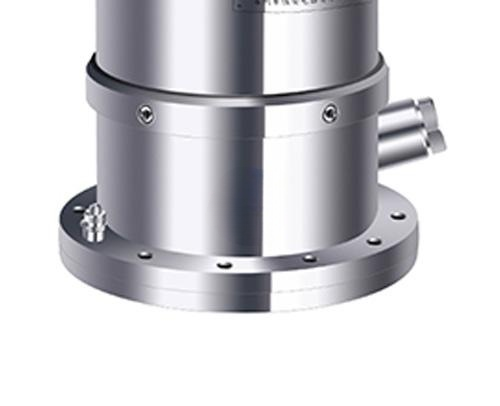

AJSZAT670 Network explosion proof PTZ camera

Main Features:

  • Explosion Proof Certified
  • High Resolution Zoom Camera
  • Infrared Night Vision
  • 360° PTZ Functionality
  • Wiper System
  • Audio & Alarm I/O
  • RS485 & Fiber Optical Communication
  • Remote-Control Washing Tank Support
  • Stainless Steel Enclosure
  • IP66/IP68 Protection

More Details About AJSZAT670 Network explosion proof PTZ camera

Product Description

AJSZAT670 is multi function of explosion proof PTZ Camera, which come with high resolution zoom camera, infrared lights for night vision, wiper system for window self-clean, RS485 output,audio&alarm input and output, optical fiber communication, remote control washing tank.

Technical Specifications

Certificate

Certificate Mark

Ex d ⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx18.4278X

Standards

Q/320412 ZAF047-2018



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4 or M25*1.5

Wiper

yes



Electrical

Voltage

AC85V～AC265V or DC24V or AC24V

Power

50W /70W (with thermostat)



Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Lights

Light distance

100m

Light control

Support



Communication

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps



Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Pattern

Support

Auto Scan

Support



Alarm

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Audio

Audio Input

Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%

Audio Output

Line-level impedance 600Ω



Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 main profile / MJPEG

Audio Compression

G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,

UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,

TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control



Camera

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

1.3MP, 2MP, 3MP

Min. Illumination

Color 0.05Lux B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

＞52dB（AGC off）

Gain

off/ lower/ higher

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

Optical zoom

20X / 30X



General

Cable

integrated cable

Size

502*292*443mm

Weight

24.5kg

Mounted

wall, pole

Wall bracket

AJSZAZ6XXB
