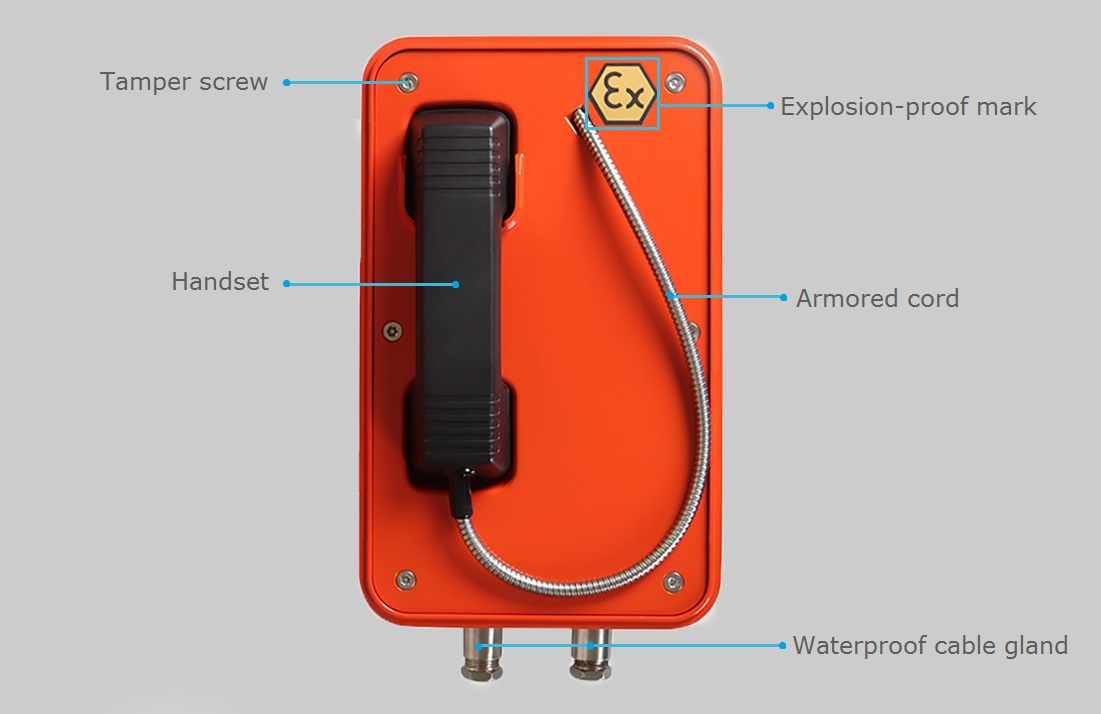

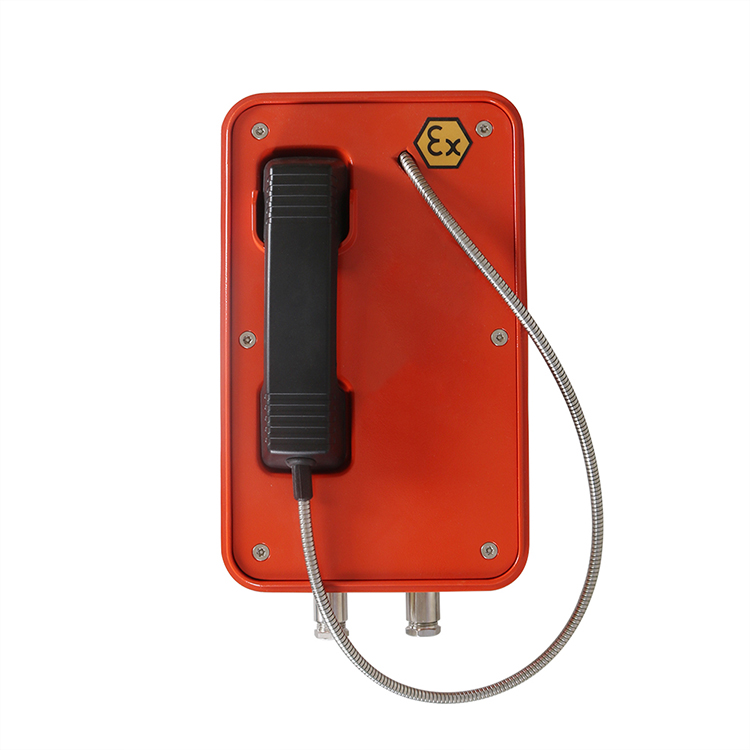

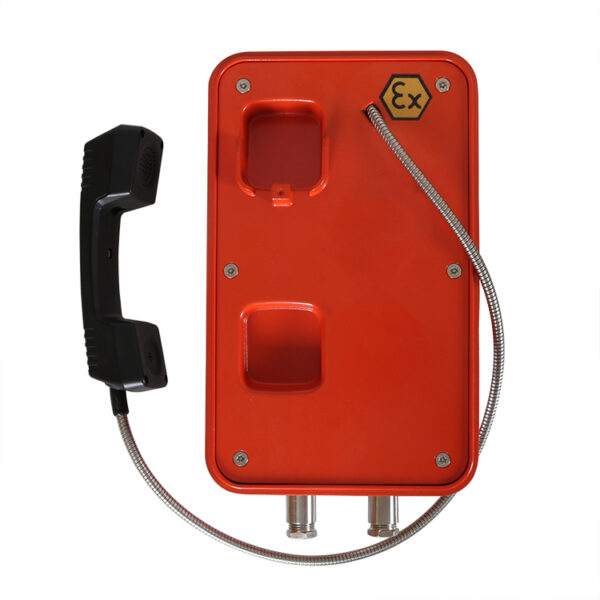

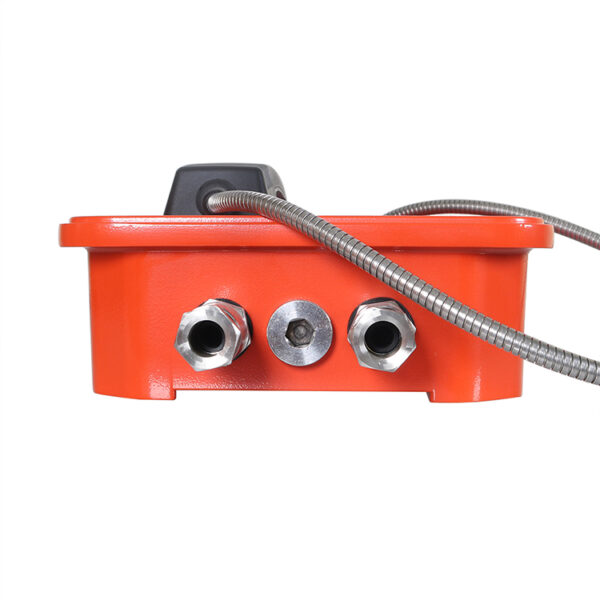

EXPLOSION PROOF IP INTERCOM

Main Features of Explosion Proof IP Intercom

  • ATEX, IECEx, EAC, INMETRO
  • Explosion-proof& Weatherproof Telephone
  • Aluminium alloy die-casting body
  • Vandal-resistant handset and cord
  • II 2G Ex e ib [ib] mb IIC T4Gb
  • II2D Ex ib [ib] tb IIIC T135 °Db
  • Zone 1& Zone 2
  • Analog or VOIP/SIP Version
  • Telephone line powered for PSTN
  • Power-Over-Ethernet (PoE) as standard
  • Weatherproof protection to IP66-IP67
  • Wall mounting, simple installation
  • Hotline, without Keypad
  • Inductive coupler fitted as standard for hard-of-hearing

More Details About EXPLOSION PROOF IP INTERCOM

The Explosion Proof IP Intercom is designed for voice communication in a hostile environment where reliability, efficiency, and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to seawater and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

 Casing Material

Die-cast aluminum, epoxy powder-coated

 Colors

Yellow, other colors to special order

 Handset Material

Cycoloy with stainless steel spiral cord

 Explosion protection

II 2G Ex e ib [ib] mb IIC T4 Gb
II 2D Ex ib [ib] tb IIIC T135 °Db
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22

 Handset

With Noise-canceling microphone, for effective communication from noisy areas(Armored SS cord stands up to rough treatment, optional for black curly cord )

 Weather Resistance

IP 67

 Ringing Tone

Shrill warble tone 85 dBA at 1 meter typical

 Hook switch

Electronic/magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. over 50,000 hours using

 Weight

Up to 8 kg depending on the option



Technical Specification

Analogue Version

Power Supply

From the analog telephone network

  Supply Voltage

24 VDC to 65 VDC

  Supply Current

20 mA DC to 100 mA DC

  Ringer Volume

– 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

  Dialing Method

DTMF mode by ITU-T recommendation Q.23.



SIP Version

Power Supply

PoE or 12V DC

  Power Consumption

-Idle:1.5W
-Active:1.8W

  SIP Protocol

SIP 2.0 (RFC3261)

  Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

  Communication Type

Full duplex

  Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient Conditions

  Protection Type

IP 66 as per EN60529

  Operating Temperature

-30°C to +70°C

  Storage Temperature

-40°C to +75°C



Features

  ★ Aluminum alloy die-casting body

   ★ Vandal-resistant handset and cord

   ★ Weatherproof protection to IP66-IP67

   ★ Wall mounting, simple installation

   ★ Hotline, without Keypad

   ★ Inductive coupler fitted as standard for hard-of-hearing



Applications

AJS-EX106-A03-CB Explosion Proof IP Intercom is designed for voice communication in a hostile environment where reliability, efficiency, and safety are of prime importance.

The telephone can handle the large temperature differences found outdoors, high humidity, exposure to seawater and dust, corrosive atmosphere, explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.



Packing Details

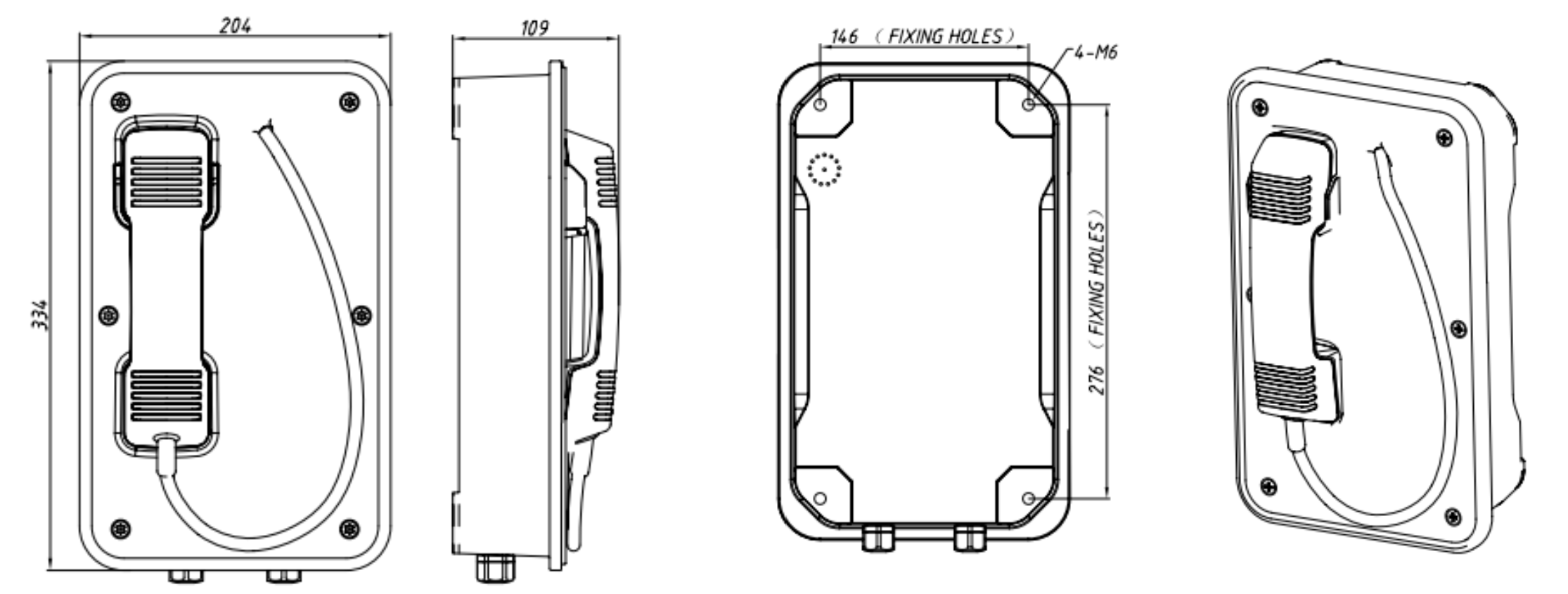

Unit Size

204 *334 *109 (mm)

  Carton Size

200 *300 *440 (mm)

  Packaging Materials

Pearl cotton, carton

  Net Weight

5 KG

  Gross Weight

6 KG



Customized Accessories

     HOOK FUNCTION: Magnetic hooks for choice

      KEYBOARD SHAPE: Round buttons and square buttons for choice

      INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

      MOTHERBOARD MODEL: 2G/4G/SIP/GSM for choice

      HANDSET CORD: Black curly handset cord or stainless-steel spiral cord
