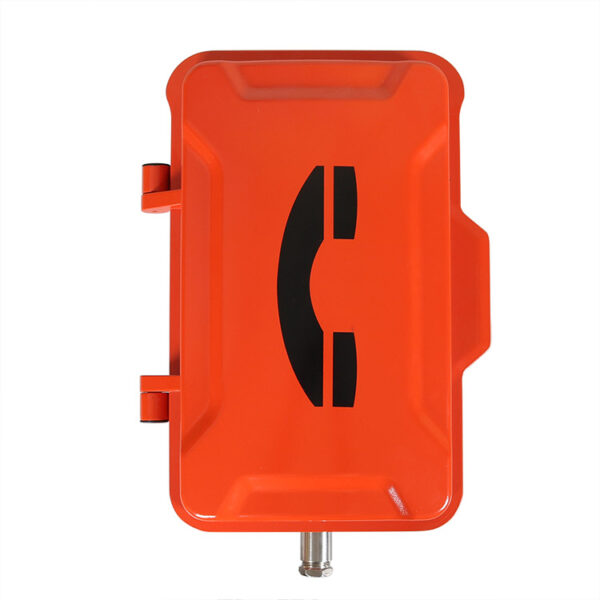

Product Image 3 Product Image 3

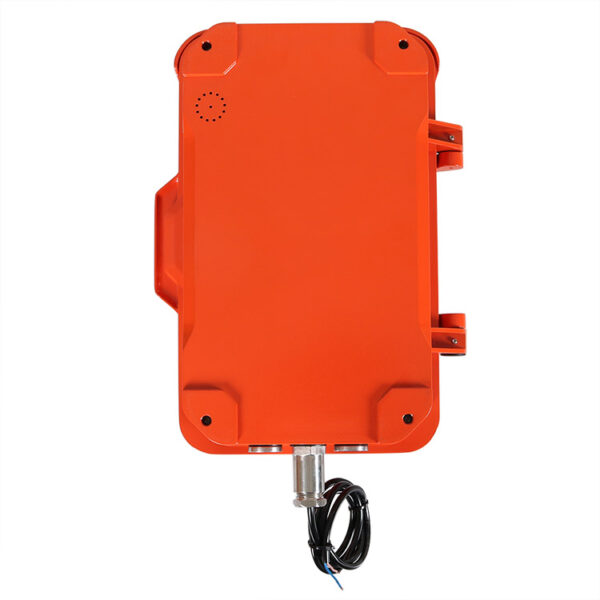

Product Image 4 Product Image 4

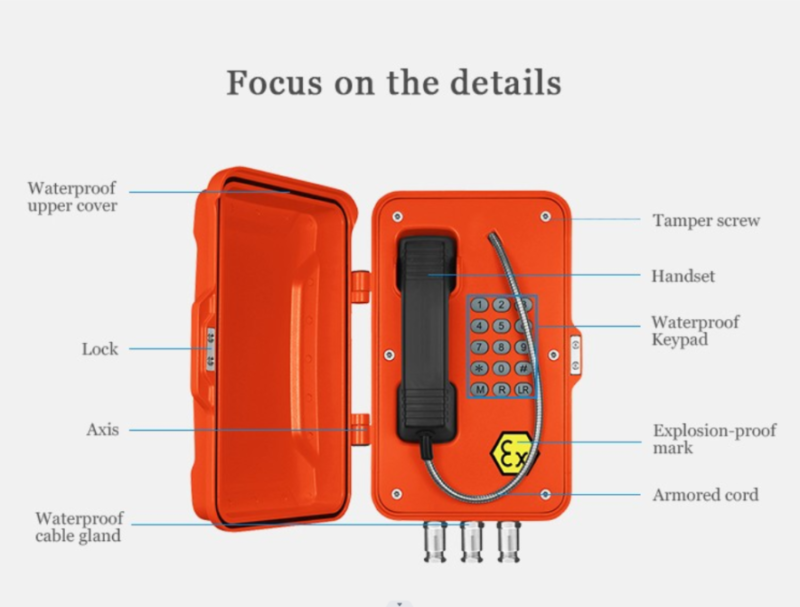

Product Image 5 Product Image 5
Product Image 6 Product Image 6

ATEX TELEPHONE

Main Features of ATEX telephone

  • ATEX, IECEx, EAC, INMETRO
  • Can be connected to any standard two-wire telephone line, including analog PABX lines and PSTN.
  • With NPT conduit entries and Type 3 / IP67 environmental ratings
  • Zone classification: (For explosive gas atmospheres Zone 1 and Zone 2. For IIA, IIB explosive atmosphere. For dust Zone 20, Zone 21, and Zone 22.)
  • Suitable for temperature class: T1 ~ T6.
  • Impact of protection: IK10 according to EN50102
  • The main keypad features 15 buttons (0-9,*,#, Redial, Mute, Last Number Redial) (A completely programmable weatherproof keypad designed to be used with gloves)
  • Handset with Noise-canceling microphone, for effective communication from noisy areas (Armored SS cord stands up to rough treatment, optional for black curly cord )
  • Hermetically sealed non-contact hook sensing switch improves system reliability
  • Ringing sound pressure level Approx. 90 dB(A) at 1m distance

More Details About ATEX TELEPHONE

This AJS-EX-106-A01-FK Explosion Proof Telephone is protected in a corrosion-resistant aluminum alloy die-casting housing, provides the phone from the ingress of dust, dirt, and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow, and rain. This explosion-proof telephone can handle the large temperature differences found outdoors, high humidity, exposure to seawater and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

OPTIONAL

  • Add Horn & Lamp on the top
  • Key lockable latch
  • Upper & lower internal mounting plates
  • Flat label area or custom embossed logo on the door
  • Vandal-resistant screws for the upper mounting plate


TECHNICAL SPECIFICATION

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC  to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

80dB(A) at a distance of 1 M

110dB(A) at a distance of 1 M (for external horn speaker)

Dialing Method

DTMF mode by ITU-T recommendation Q.23.


Ambient Conditions

Protection Type

IP 66 as per EN60529

Operating Temperature

-40°C to +70°C

Storage Temperature

-45°C to +85°C



Packing Details



Unit Size: 204*339*126mm (H*W*D)

Carton Dimension: 200*300*440 mm (H*W*D)

Packaging materials: pearl cotton, carton

Net Weight: 8 KG

Gross weight: 9 KG
