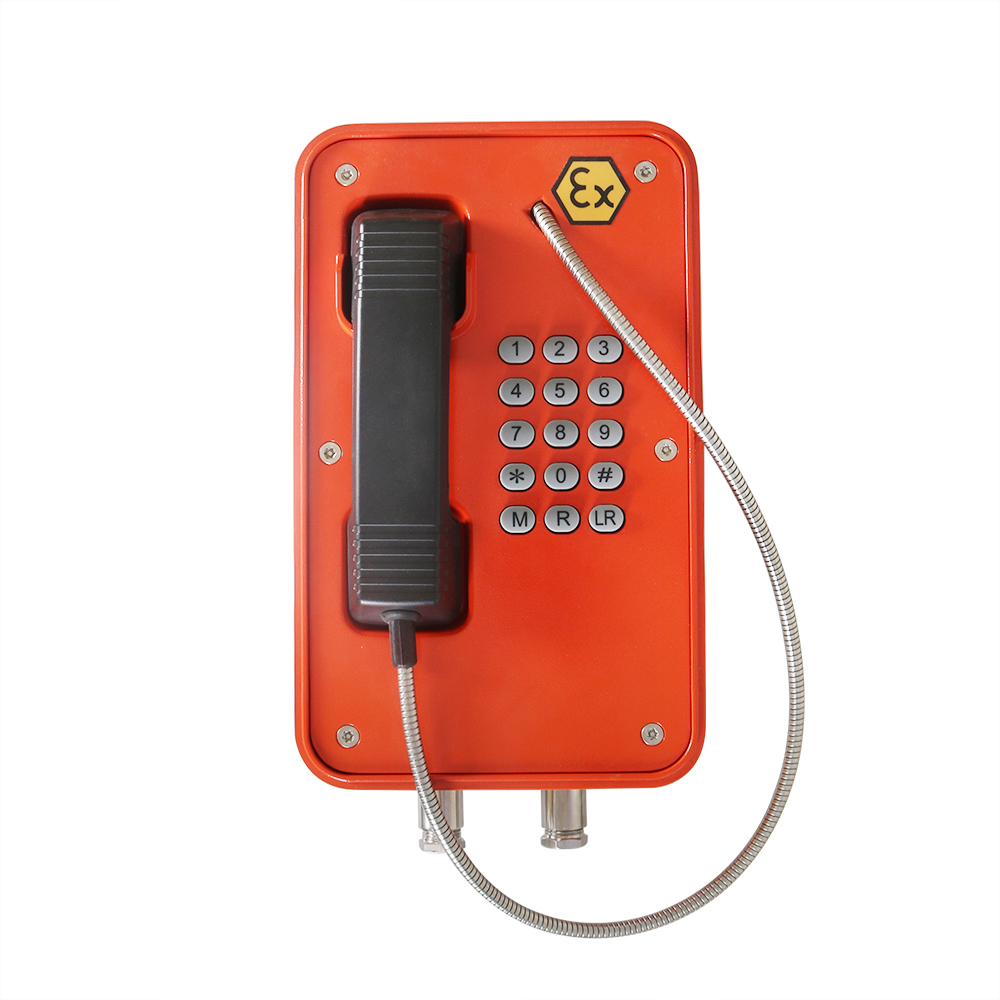

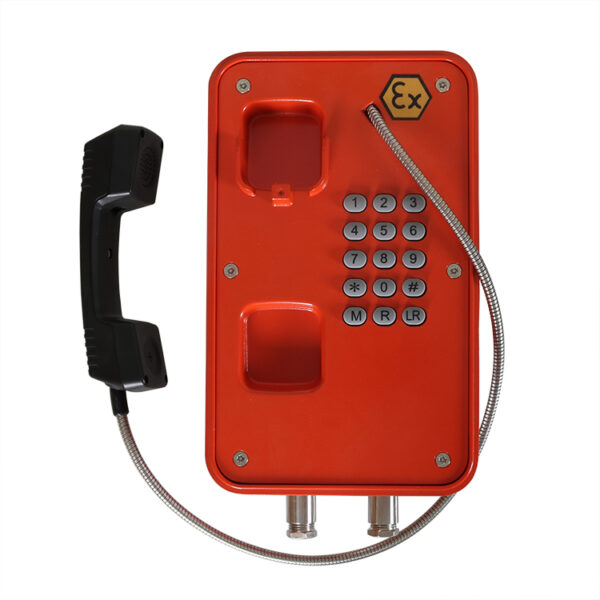

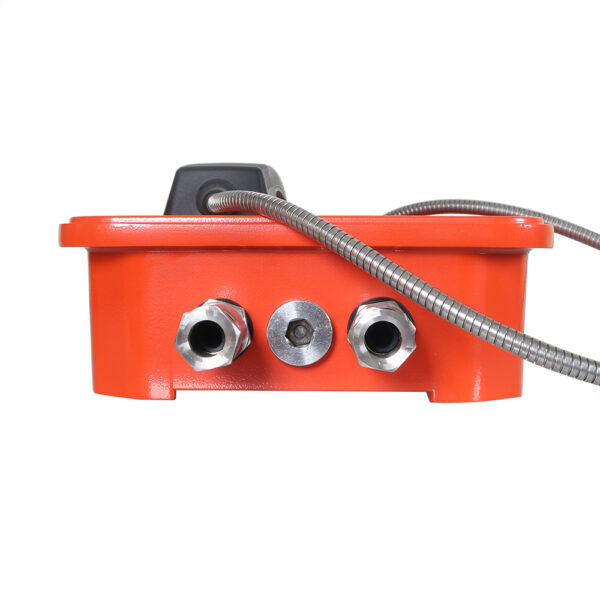

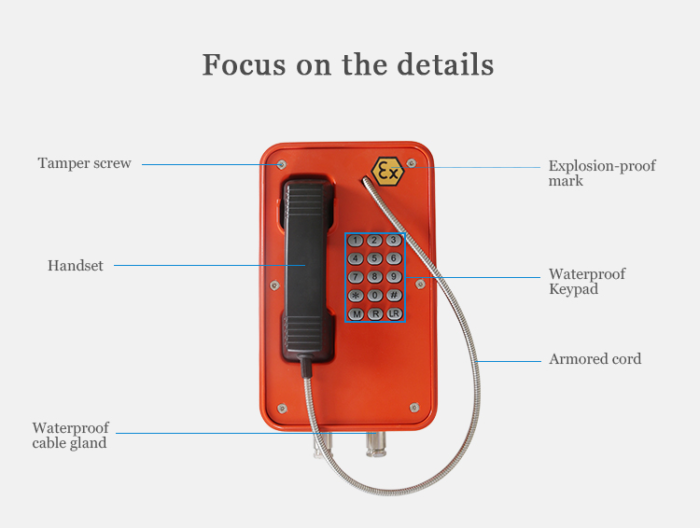

EXPLOSION-PROOF VOIP PHONE

Main Features of Explosion-proof VoIP Phone

  • ATEX, IECEx, EAC, INMETRO
  • Explosion-proof& Weatherproof Telephone
  • Aluminum alloy die-casting body
  • Vandal-resistant handset and cord
  • II 2G Ex e ib [ib] mb IIC T4Gb
  • II 2D Ex ib [ib] tb IIIC T135 °
  • Zone 1& Zone 2
  • Analog or VOIP/SIP Version
  • Power-Over-Ethernet (PoE) as standard
  • Weatherproof protection to IP66-IP67
  • Wall mounting, simple installation
  • Fully Keypad
  • Inductive coupler fitted as standard for hard-of-hearing

More Details About EXPLOSION-PROOF VOIP PHONE

Explosion-proof VoIP phone is designed for voice communication in a hostile environment where reliability, efficiency, and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to seawater and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

 Casing Material

Die-cast aluminum, epoxy powder coated

 Colors

Available in four colors:

Orange, Yellow, Red, and Blue

 Handset Material

Cycoloy with stainless steel spiral cord

 Explosion protection

II 2G Ex e ib [ib] mb IIC T4 Gb
II 2D Ex ib [ib] tb IIIC T135 °Db
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22

 Keypad

Weather resistant full Keypad, No. of keys (TOTAL 15 KEYS):0-9,*,#,Redial, Mute, Last Number Redial

 Weather Resistance

IP 67

 Ringing Tone

Shrill warble tone 85 dBA at 1 meter typical

 Hook switch

Electronic/magnetic with no visible moving parts

 M.T.B.F.

Calculated to have an M.T.B.F. over 50,000 hours using

 Weight

Up to 8 kg depending on the option



TECHNICAL SPECIFICATION

Analogue Version

Power Supply

From the analogue telephone network

Supply Voltage

24 VDC to 65 VDC

Supply Current

20 mA DC to 100 mA DC

Ringer Volume

80dB(A) at a distance of 1 M

110dB(A) at a distance of 1 M (for external horn speaker)

Dialing Method

DTMF mode by ITU-T recommendation Q.23.

Ambient Conditions

Protection Type

IP 66 as per EN60529

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +75°C



SIP Version

 Power Supply

PoE or 12V DC

  Power Consumption

-Idle:1.5W
-Active:1.8W

  SIP Protocol

SIP 2.0 (RFC3261)

  Support Codec

G.711 A/U, G.722 8000/16000, G.723, G.729

  Communication Type

Full duplex

  Ringer Volume

– 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)



Features

  • Aluminum alloy die-casting body.
  • Vandal-resistant handset and cord.
  • Weatherproof protection to IP66-IP67
  •  Wall mounting, simple installation.
  •  Fully Keypad
  • Inductive coupler fitted as standard for hard-of-hearing.


Applications

AJS-EX-106-A03-FK Explosion-proof VoIP phone is designed for voice communication in a hostile environment where reliability, efficiency and safety are of prime importance.

The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, corrosive atmosphere, explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

Packing Details

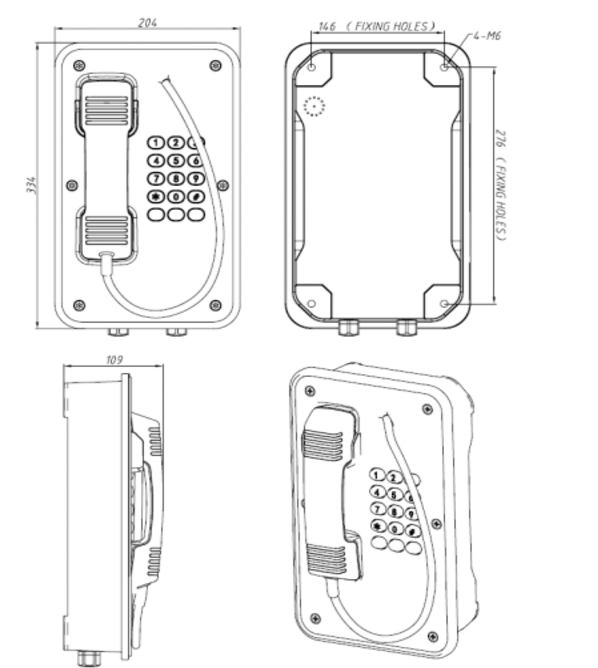

  Unit Size

204 *334 *109 (mm)

  Carton Size

200 *300 *440 (mm)

  Packaging Materials

Pearl cotton, carton

  Net Weight

5 KG

  Gross Weight

6 KG
