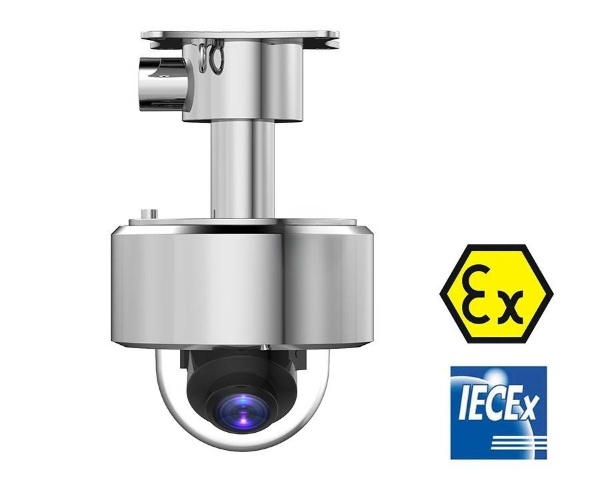

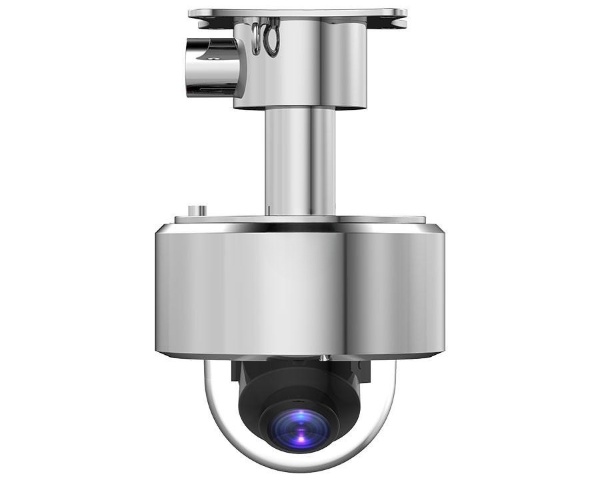

AJSCZ6404 Series 4 MP 4x PTZ Explosion Proof Mini Dome Camera

Image Sensor

1/3” CMOS

Effective Pixels

2592(H) x 1520(V), 4 Megapixels

RAM/ROM

256M/128M

Electronic Shutter Speed

1/1s~1/30,000s

Scanning System

Progressive

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Focal Length

2.7mm~11mm

Max. Aperture

F1.6 ~ F2.8

Angle of View

H: 112.5° ~ 30°

Optical Zoom

4x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

*Note: The DORI distance is a “general proximity” of distance which makes it easy

to pinpoint the right camera for your needs. The DORI distance is calculated based

on sensor specification and lab test result according to EN 62676-4 which defines

the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

180m(591ft)

72m(236ft)

36m(118ft)

18m(59ft)

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Manual Control Speed

Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s

Preset Speed

Pan: 100° /s; Tilt: 60° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol

DH-SD

Event Trigger

Motion detection, Video tampering, Network

disconnection, IP address conflict, Illegal access,

Storage anomaly

Auto Tracking

N/A

IVS

Tripwire, Intrusion, Abandoned/Missing

AdvancedIntelligent

Functions

Face Detection

Compression

H.265/H.264

Streaming Capability

3 Streams

Resolution

4M(2592×1520)/3M(2304×1296)/1080P(1920×
1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)

Frame Rate

Main stream: 4M/3M/1080P/1.3M/720P (1~25/30fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detetion

Support

Region of Interest

Support

Electronic Image

Stabilization (EIS)

N/A

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Ethernet

RJ-45 (10XBase-T/100Base-TX)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),

Local PC for instant recording,

Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

ATEX, IECEx certified

Explosion proof certification

DNV 21 ATEX 24764X

IECEx DNV 21.0047X

ATEX Explosion proofmarking

Without optical fibre

II 2 G Ex db IIC T6 Gb

II 2 D Ex tb IIIC T80°C Db

With optical fibre

II 2 G Ex db op pr IIC T6 Gb

 II 2 D Ex tb op pr IIIC T80°C Db

IECEx Explosion proof marking

With optical fibre:

Ex db op pr IIC T6 Gb

Ex tb op pr IIIC T80°C Db

Without optical fibre:

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db

Video Interface

N/A

RS485

N/A

Audio I/O

N/A

Alarm I/O

N/A

Power Supply

DC 12V/1.5A, PoE(802.3af)

Power Consumption

10W

Operating Conditions

-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH

Storage Temperature

-40°C ~ +60°C (-40°F to +140°F)

Ingress Protection

IP66, IP68 (2m, 2h)

Casing

Stainless steel 304 or 316L

Optional with corrosion proof painting

Dimensions

Φ144 (mm) x 245 (mm) (include ceiling mount)

Net Weight

6.4kg with ceiling mount bracket

Gross Weight

6.5kg with ceiling mount bracket
