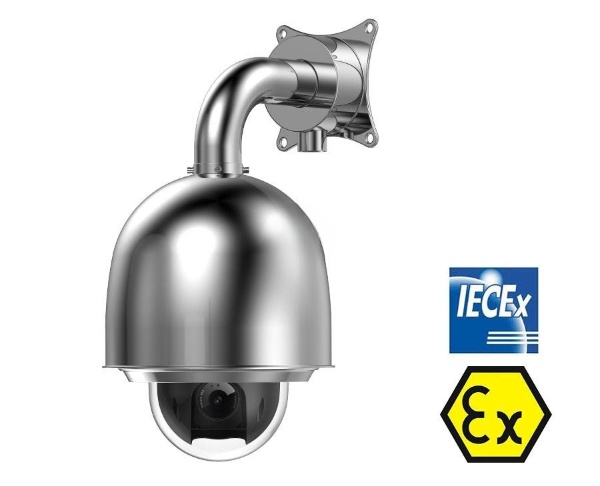

Product Image 2 Product Image 2

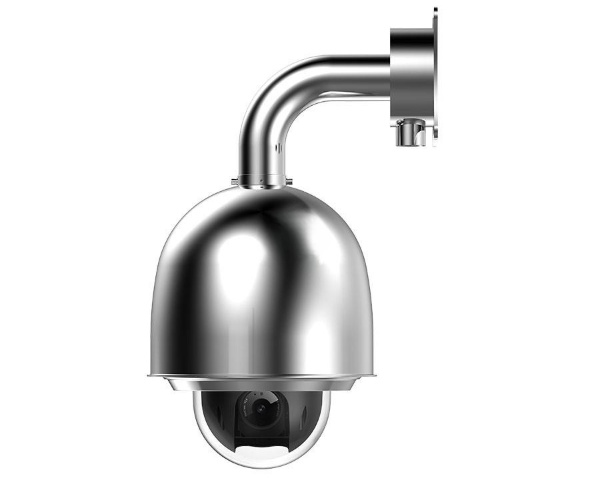

Product Image 3 Product Image 3

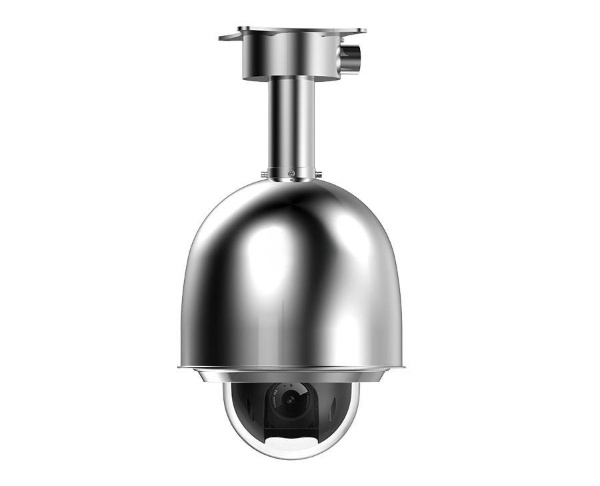

Product Image 4 Product Image 4

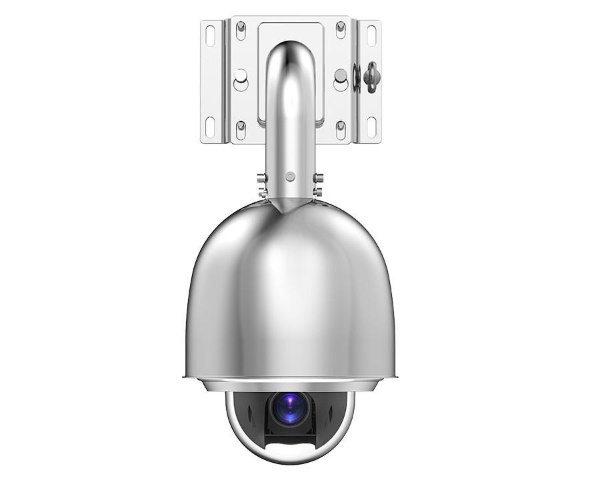

Product Image 5 Product Image 5

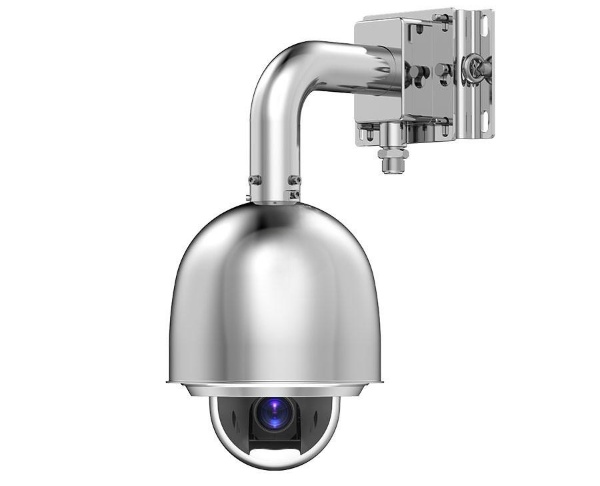

Product Image 6 Product Image 6

AJSCZ6354 ATEX, IECEx certified 2MP 25X Starlight Network Explosion Proof PTZ Speed Dome Camera

Main Features:

  • ATEX, IECEx certified
  • Application: gas zone 1, zone 2; dust zone 21, 22.
  • Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
  • Stainless steel 304 or 316L
  • Optional electropolished or corrosion resistant paint finis
  • Enclosure Protection: IP66, IP68(2m/2h)
  • Power Supply：AC24V/1.5A(±10%), PoE+(802.3at)
  • Powerful25x optical zoom and accurate pan/tilt zoom performance
  • 1/2.8” 2Megapixel CMOS
  • Max.50/60 fps@1080P
  • All-in-one solution for capturing long distance video surveillance for outdoor applications
  • Startlight technology fits for dark, low-light applications
  • True WDR for applications with direct sunlight or glare.
  • Automatically filters out false alarms caused by animals, rustling leaves, bright lights,etc
  • Automatically track an object in motion and keep it in the scene.
  • Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
  • Wall and ceiling mounted way
  • Optical fiber output version available

More Details About AJSCZ6354 ATEX, IECEx certified 2MP 25X Starlight Network Explosion Proof PTZ Speed Dome Camera

Product Description

AJSCZ6354 series is a classic explosion-proof speed dome camera, which is integrated by explosion proof enclosure, speed dome module, sunshield. The explosion proof speed dome camera is applicable to Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist, e.g. refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.



Technical Specification

Camera

Image Sensor

1/2.8” CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

1024M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6

S/N Ratio

More than 55dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A



Lens

Focal Length

4.8mm~120mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 62.8° ~ 2.6°

Optical Zoom

25x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm



DORI Distance

*Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

1613m(5292ft)

646m(2119ft)

323m(1060ft)

161m(528ft)



PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s

Preset Speed

Pan: 500° /s; Tilt: 500° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after
power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD



Intelligence



Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

Auto Tracking

Support

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent

Functions

Face Detection, Heat Map



Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280×
720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image

Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas



Optional Audio

Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/ MPEG2-L2



Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android



Certification

Certifications

ATEX, IECEx certified

Explosion proof

certification

DNV 21 ATEX 38340X

IECEx DNV 21.0048X

ATEX Explosion proof

marking

With optical fiber:

wps2.pngⅡ 2 G Ex db op pr ⅡC T6 Gb

wps3.pngⅡ 2 D Ex tb op pr ⅢC T80 ºC Db

Without optical fiber:

wps4.pngⅡ 2 G Ex db ⅡC T6 Gb

wps5.pngⅡ2 D Ex tb ⅢC T80 ºC Db

IECEx Explosion proof

marking

Without optical fibre:

Ex db IIC T6 Gb

Ex tb IIIC T80°C Db

With optical fibre:

Ex db op pr IIC T6 Gb

Ex tb op pr IIIC T80°C Db



Optional Interface

Video Interface

N/A

RS485

N/A

Audio I/O

1/1

Alarm I/O

2/1



Electrical

Power Supply

AC24V/1.5A(±10%), PoE+(802.3at)

Power Consumption

13W,23W (Heater on)



Environment

Operating Conditions

-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66, IP68 (2m/2h)

Air pressure

80～110kPa



Construction

Casing

Stainless steel 304 or 316L

Dimensions

245*245*302mm (without bracket)

Cable

Integrated cable

Cable thread hole

1pcs M27×1.25 or M25×1.5

Weight

13.5kg (without bracket)

Sunshade

Support

Wall bracket

ZAZ637-B

Ceiling bracket

ZAZ637-D



AJSCZ6354-□□□ EXPLOSION PROOF FIXED CAMERA

Dimension (With Wall Bracket)

Ceiling mount bracket dimension
