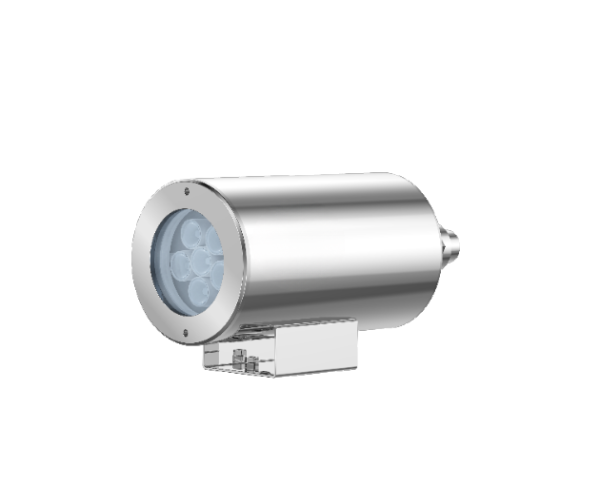

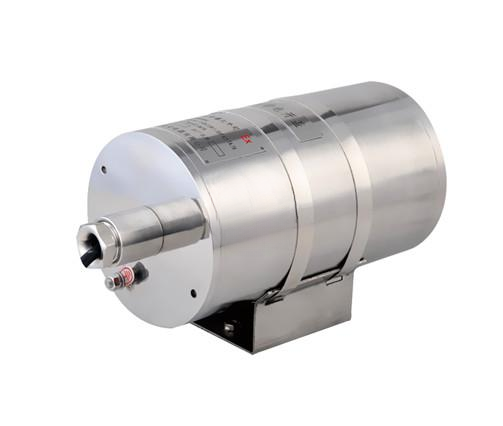

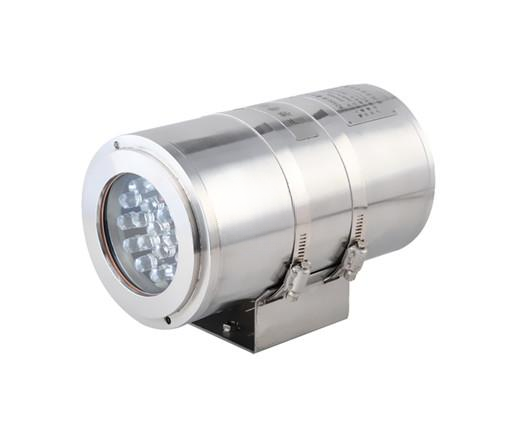

AJSZAD500 explosion proof infrared lights

Main Features:

  • Explosion Proof Certified
  • Infrared Night Vision
  • IP68 Waterproof & Dustproof
  • Adjustable Mounting
  • Rugged Build
  • Wide Operating Temperature
  • Stainless Steel 304 / 316L Material

More Details About AJSZAD500 explosion proof infrared lights

Product Description

The AJSZAD500 explosion proof infrared light is designed to provide enhanced visibility in hazardous environments during low light and night-time conditions. Engineered for Zone 1 & 2 (gas) and Zone 21 & 22 (dust) applications, this high-performance lighting solution is ideal for use alongside explosion proof CCTV systems to ensure clear imaging in complete darkness.

Technical Specification

Certificate

Certificate Mark

ExdⅡCT6 GB/DIP A20 TA, T6

Certificate No

CNEx12.3148

Standards

Q/320412ZAF002-2012



Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4



Electrical

Voltage

AC85V～AC265V

Power

15W/25W (within thermostat)

Surge Protect

Optional, TVS6000V surge protect



Ambient

Ambient temperature

-25 to +60℃ / -45 to 80℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)



Infrared Lights

Lights

30m, 50m, 80m

Lights control

Support



General

Overall size

267*128*150mm

Weight

5.1kg

Mounted

Wall or pole



Dimension
