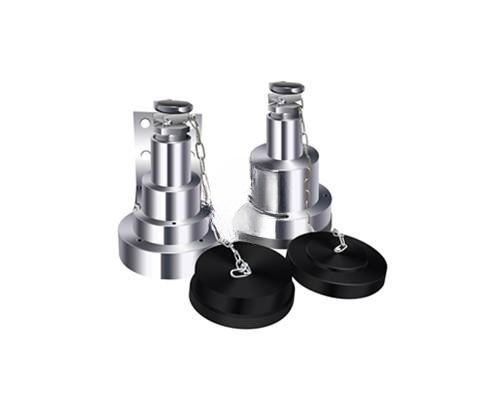

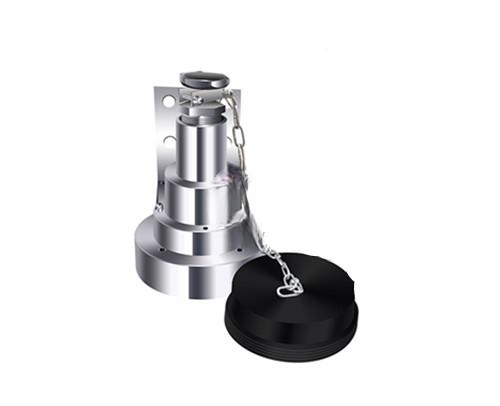

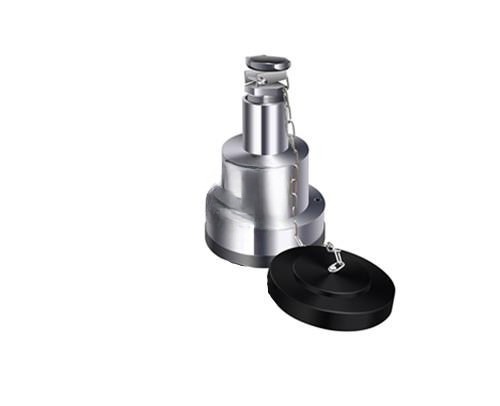

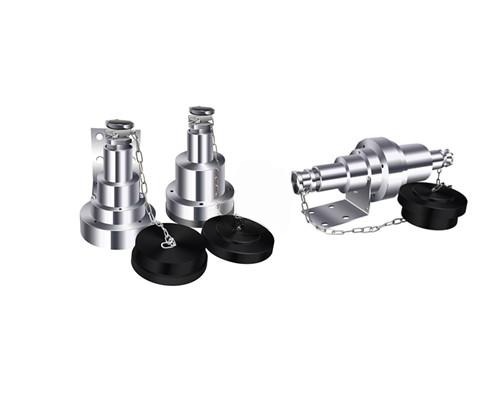

AJSZADL-07 Explosion Proof Aviation Connector

Main Features:

  • Explosion Proof & Certified
  • Rugged & Durable
  • All-Weather Use
  • Secure Locking System
  • Flameproof Design
  • Maintenance-Friendly
  • Compact Form Factor
  • ATEX & IECEx Certified
  • IP68 rated



More Details About AJSZADL-07 Explosion Proof Aviation Connector

Product Description

AJSZADL-07 explosion proof aviation connector is developed to save time and work for cable connection. The explosion proof aviation connector has male part and female part, which can be connection as couple. The explosion proof aviation connector also support analog and network communication.

Technical Specifications

Certificate

Certificate Mark

Ex dⅡC T6 Gb/ DIP A20 TA, T6

Certificate No

CNEx12.3716

Standards

Q/320412ZAF041-2012



Mechanical

Housing

Stainless steel 304

IP

IP65

couple

Male part, female part

Cable thread

2* G3/4

Working temperature

-25 ---+65℃



Electrical

Voltage

AC100-240V, AC24V

Working current

≦2A

communication

7-core (3-core power, 2-core video, 2-core RS485)

12-core ( network type)



General

Size

247*86*100mm

Weight

2kg



Dimensions
