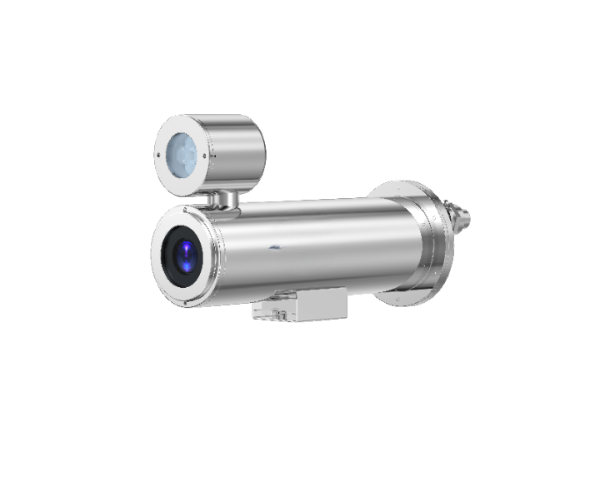

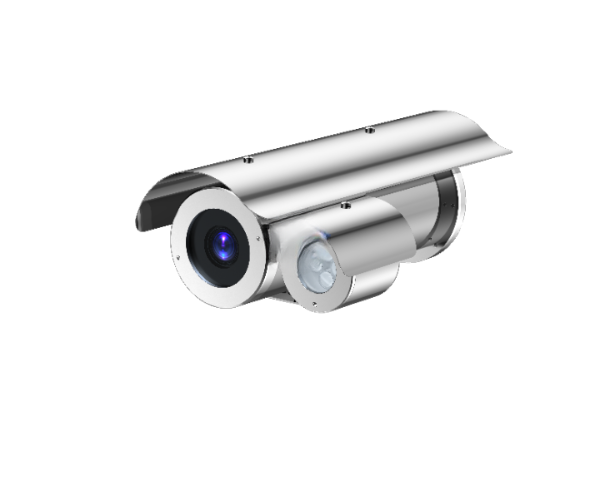

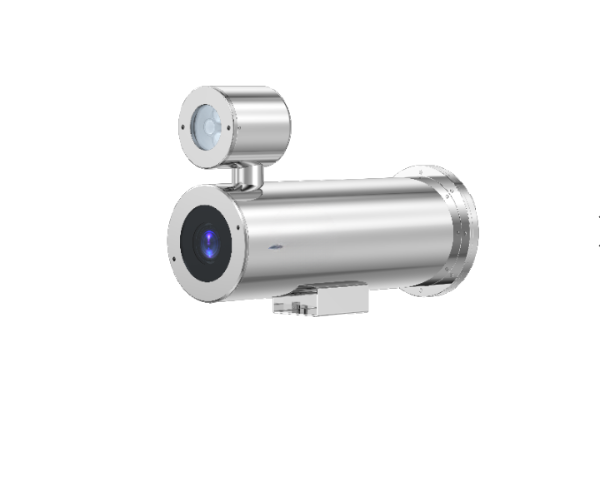

AJSCZ1035 ATEX Explosion-Proof IR Camera

Main Features:

  • ATEX Certified
  • IR Night Vision
  • Stainless Steel 304/316L Housing
  • Explosion-Proof Design for oil & gas industries
  • Wide Temperature Range (T1–T6)
  • Weatherproof & Dustproof (IP68)
  • Versatile Industrial Applications
  • Optional Mounting Accessories

More Details About AJSCZ1035 ATEX Explosion-Proof IR Camera

Product Description

AJSCZ1035 is a ATEX CCTV Camera. This AJSCZ1035 ATEX CCTV Camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.

Technical Specification

Certificate

ATEX Certificate Mark





image.png Ⅱ2G Ex db op is ⅡC T6 Gb







image.pngⅡ2D Ex tb op is ⅢC T80 ºC Db



Certificate

Presafe 17 ATEX 11327X, IECEx PRE18.0013X

Standards

IEC/EN60079



Mechanical

ATEX Explosion Proof Housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2m/ 45min)

Cable thread hole

2pcs G3/4 or NPT3/4



Electrical

Voltage

AC100V～AC240V or AC24V

Power

15W/25W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Optical Video signal

1-way video output

Optional network signal

RJ45

Optical Audio

1-way input, 1-way output

Optical Alarm

2-way alarm input, 1-way alarm output

Address code:

0/1

Trail cable

2m integrated cable



Ambient

Ambient temperature

-25°～+60°/-40℃～+60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)



IR Lights

Lights

50m infrared lights

Lights Control

Support



Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 main profile / MJPEG

Audio Compression

G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control



Starlight Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Effective pixel

2MP 1920*1080

Shuttle

Auto/Manual

Min. Illumination

Color 0.001Lux B/W: 0.0001Lux

Day&night

Auto/ Color/ BW

S/N ratio

＞52dB（AGC off）

Gain

off/ lower/ higher

Digital noise reduction

2D/3D DNR

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable



General

Model

CZ1035

Overall dimension

380*335*170mm

Net Weight

13.9kg
